Marantz Grand Horizon Luxury Wireless Speaker

Crafted by the world’s finest engineers alongside Sound Masters and backed by 70 years of industry-leading excellence, Marantz Grand Horizon
was created to deliver room-filling sound in larger living spaces, while offering beautiful design and powerful performance.

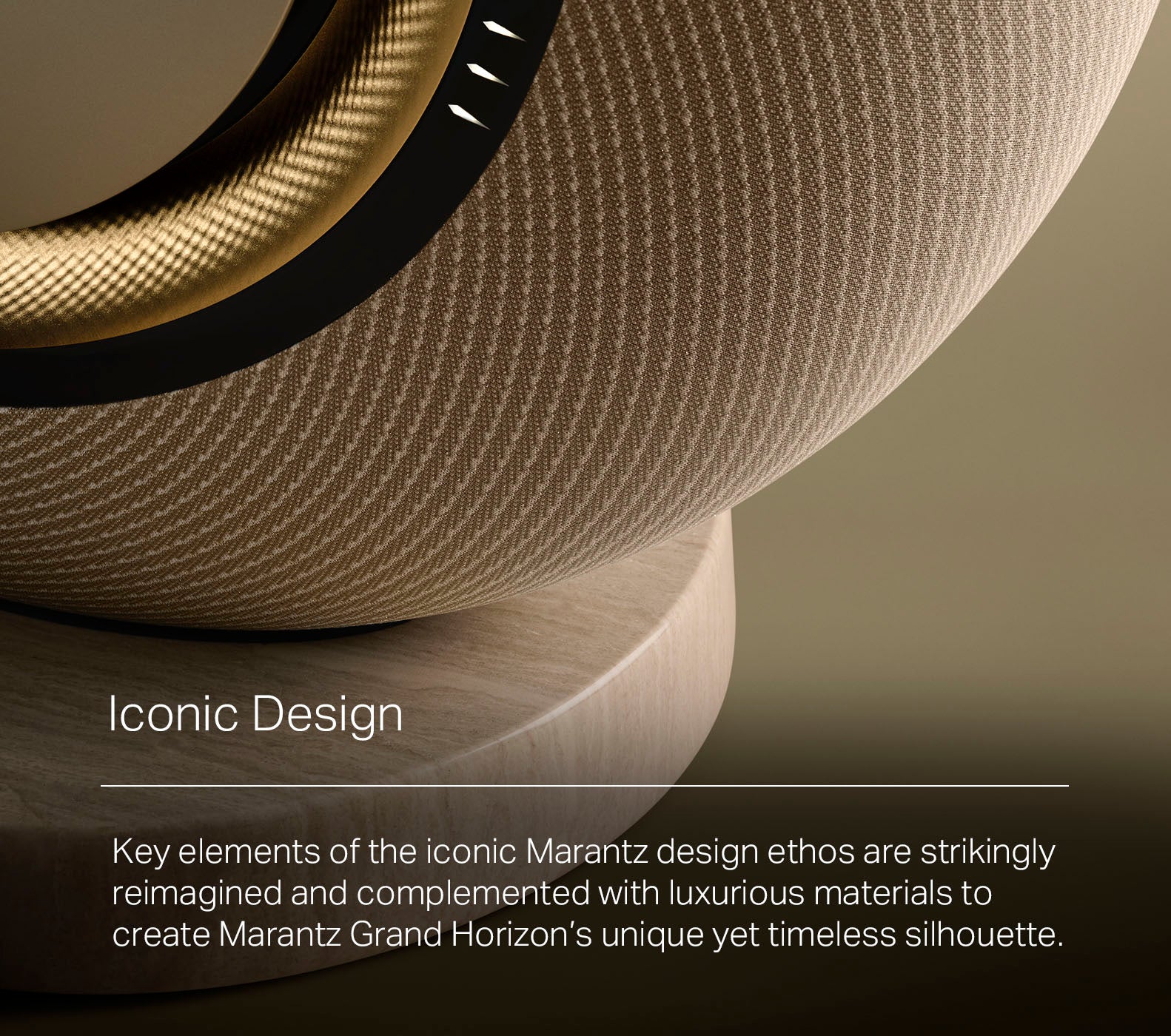

• Marantz Grand Horizon boasts a unique yet timeless silhouette

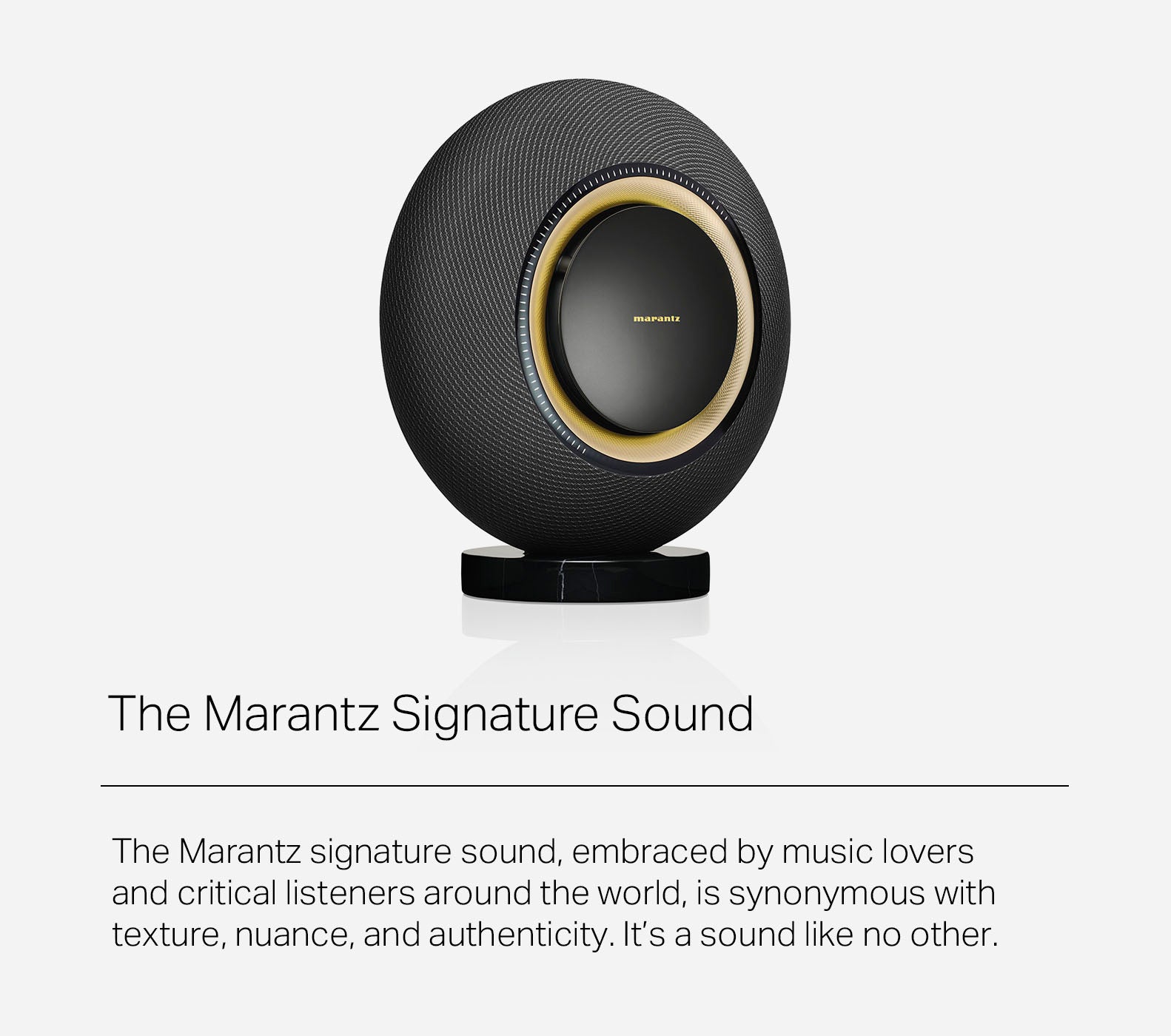

• Marantz signature sound
• Pristine, room-filling sound

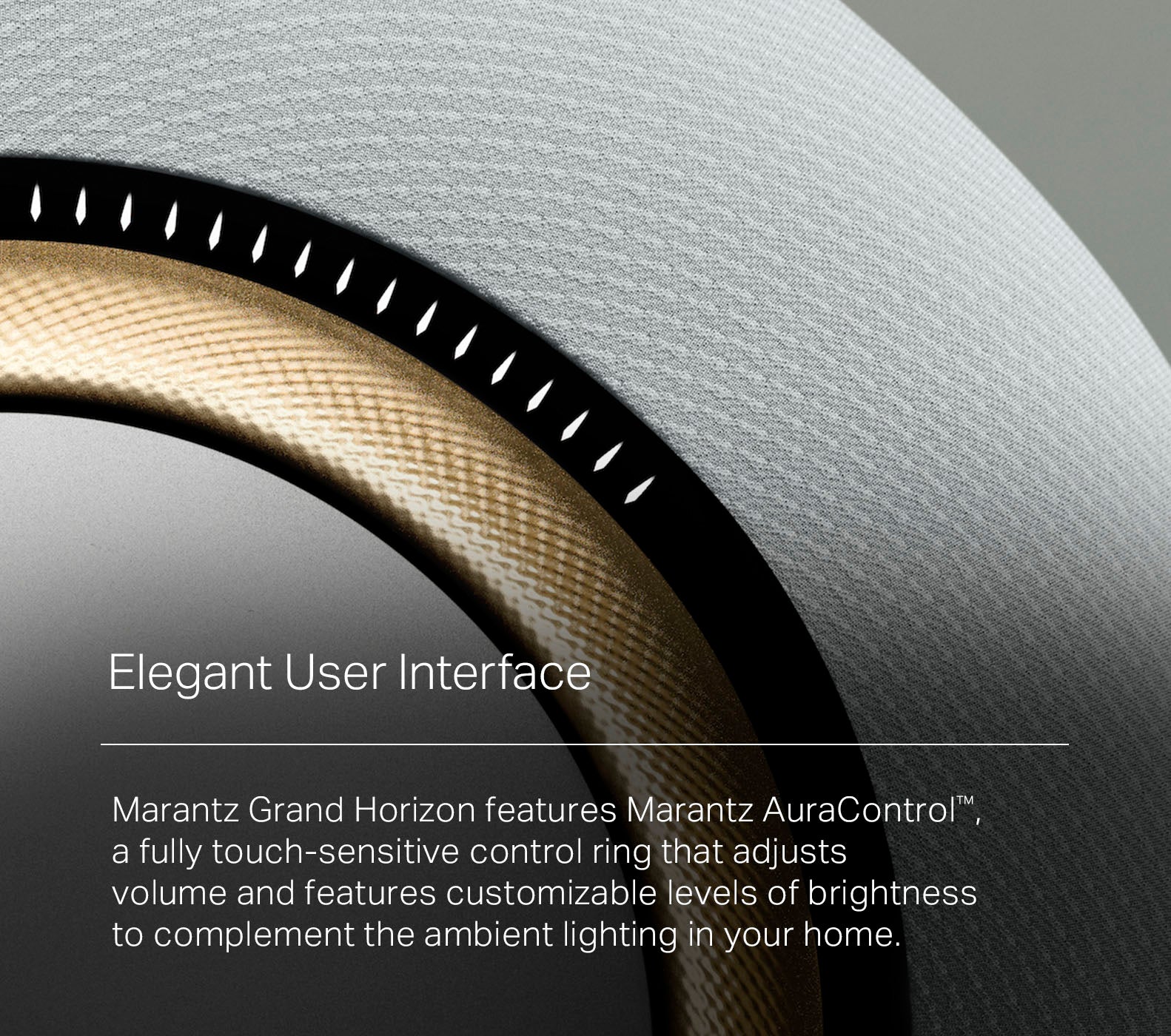

• AuraControl™ delivers intuitive, elegant control
• Marantz Radiance™ 360° Seamless EcoFiber

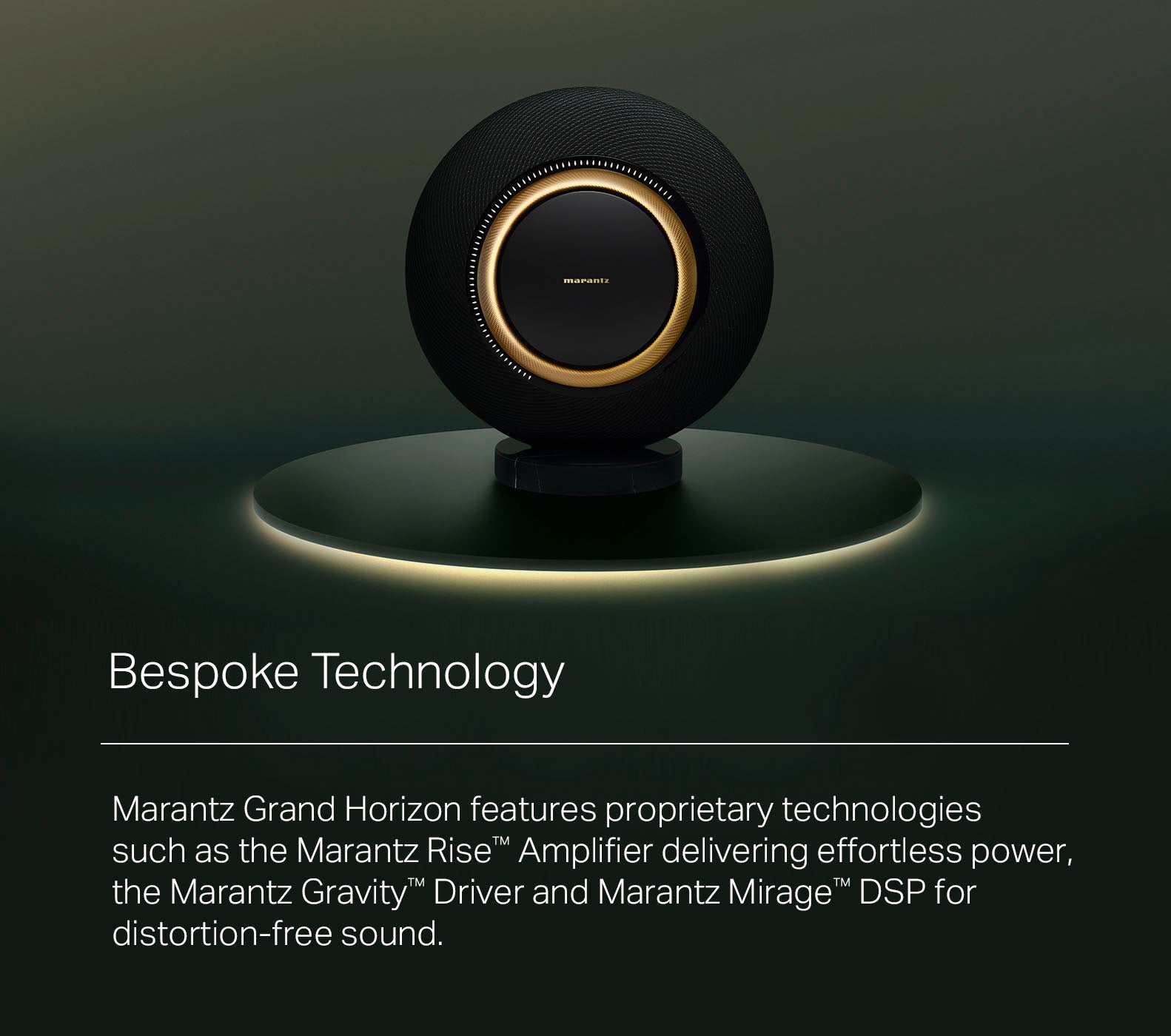

• Marantz Rise™ Amplifier for effortless power

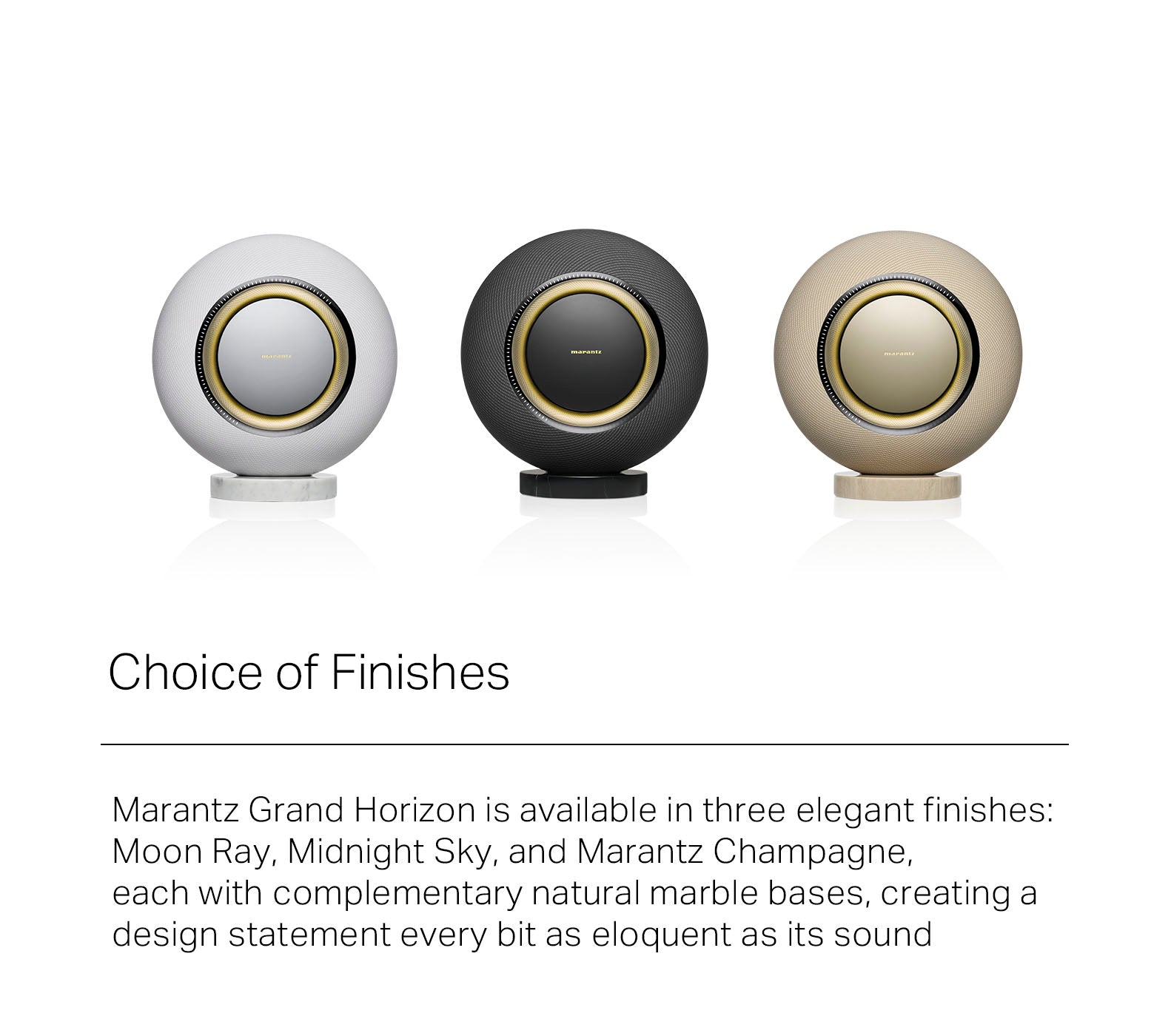

• Luxurious materials and a choice of three elegant finishes
• Complementary natural marble bases

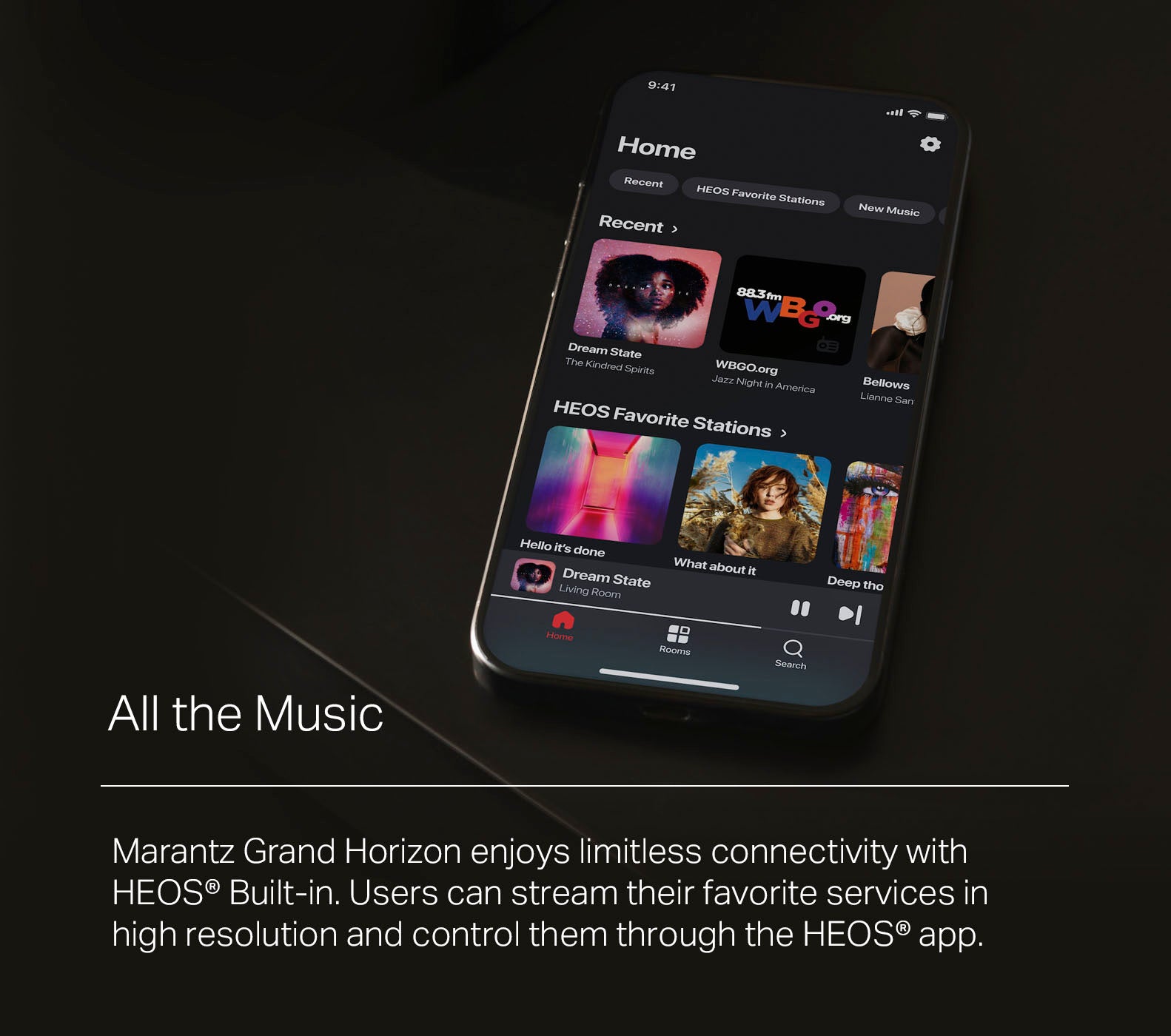

• HEOS® for all the music in the world
• Marantz Mirage™ Digital Signal Processing

Technical Specifications

Amplifier

Total Amplifier Power (FTC)
370W (FTC Power Output Rating)

Total Amplifier Power (Peak)
860W (This rating was not tested under the FTC standard)

Total Amplifier Power (Peak, Raw Amplifier Power)
1400W (This rating was not tested under the FTC standard)

Amplifier Toplogy
Marantz Rise GaN FET

Loudspeaker Array

Bass - 1× 8" Marantz Gravity
Wideband - 4× 3"
High Frequency - 3× 1"

Performance

Frequency Response - 28Hz to 20kHz (+/-3dB), 18Hz (-10dB)
Maximum SPL - 111dB (1M)
Peak SPL - 122dB (1M)

Audio Connectivity

Analog - 1 pr. RCA L/R
Digital - 1 ea. TOSLINK Optical
USB - 1 ea. USB-C (Mass Storage)
HDMI - 1 ea. eARC / ARC

Audio Format Support

Decoding
Dolby Atmos, Dolby TrueHD, DSD Dolby Digital+, Dolby Digital, LPCM

Max PCM Sample Rate / Bit Depth
Stereo: 192kHz / 24 bit
Multi-Channel: 192kHz / 24 bit (7.1 Channel)

Max DSD Data Rate
5.6 MHz (DSD ×2)

Stereo File Formats (HEOS network share or USB)
WMA: up to and including 192 kbps
AAC & MP3: up to and including 320 kbps
WAV, ALAC, FLAC: up to and including 24-bit/192kHz
DSD: 2.8 MHz, 5.6MHz

Streaming Technologies

Bluetooth - BT 5.4
AirPlay - AirPlay 2
Spotify - Spotify Connect

Music Services and Sources

Music Services Supported (HEOS, subject to change and local availability)
Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, TIDAL, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.

Music stored on mobile device
Yes (iOS, Android, or Kindle Fire)

NAS (Network Attached Storage)
Network share, UPnP

USB Storage Device Playback
Yes (FAT32, NTFS formatted drives)

Networking & Control

Wired Connectivity - Ethernet
Wireless Connectivity - Dual band, 802.11 a/b/g/n/ac/ax
Control System Compatibility via TCP/IP - Crestron, Control4, AMX
HEOS App - iOS, Android, Kindle Fire

General

Product Color

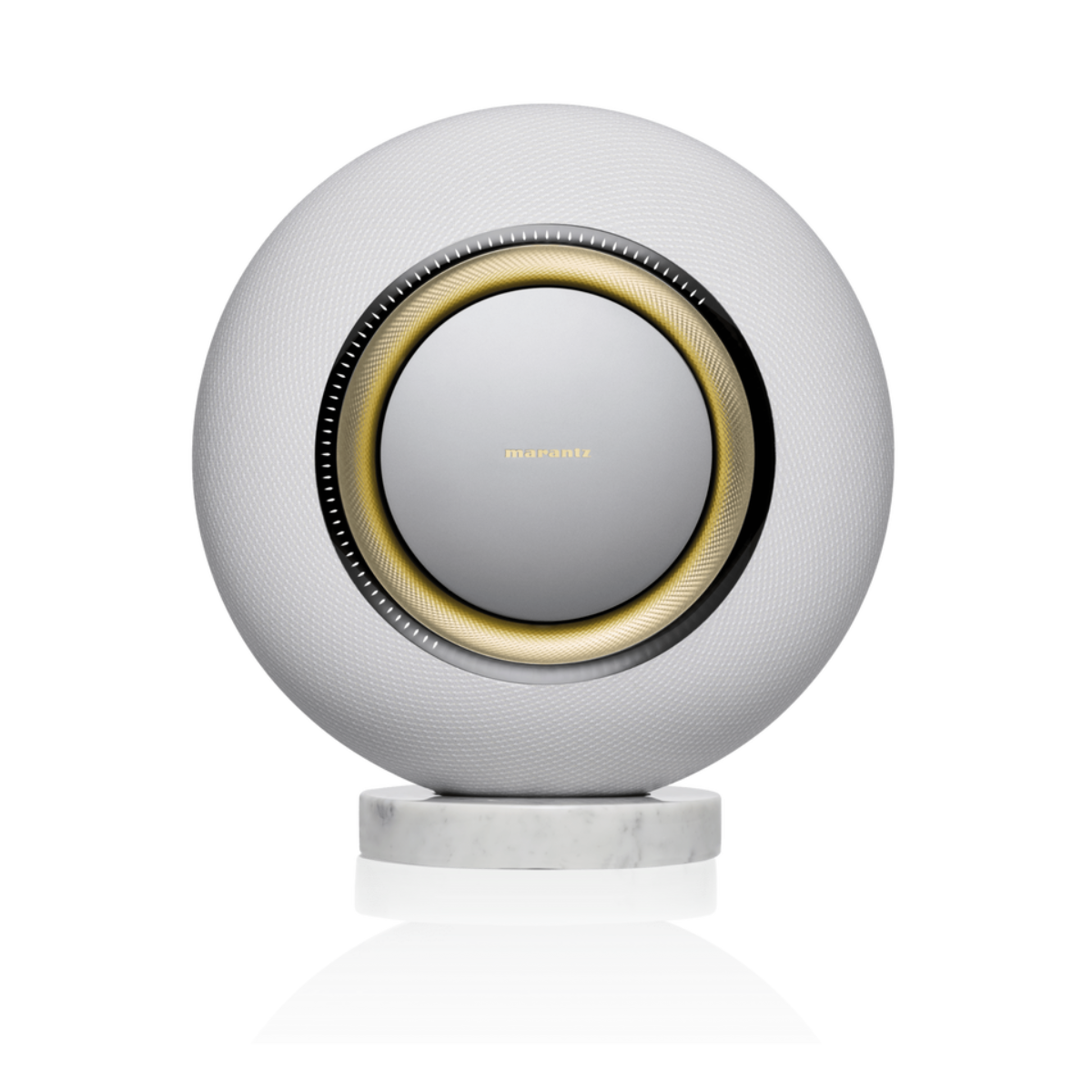

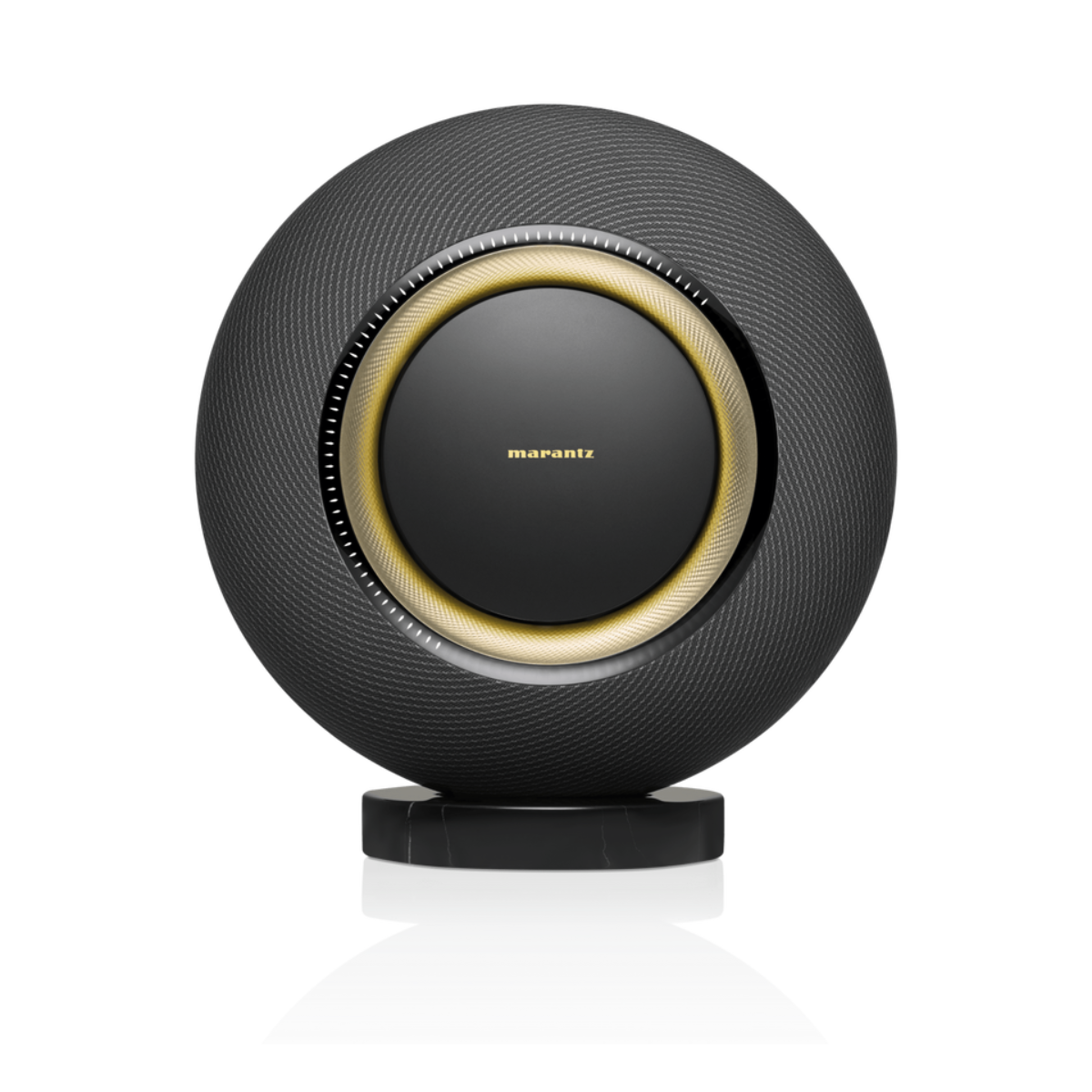

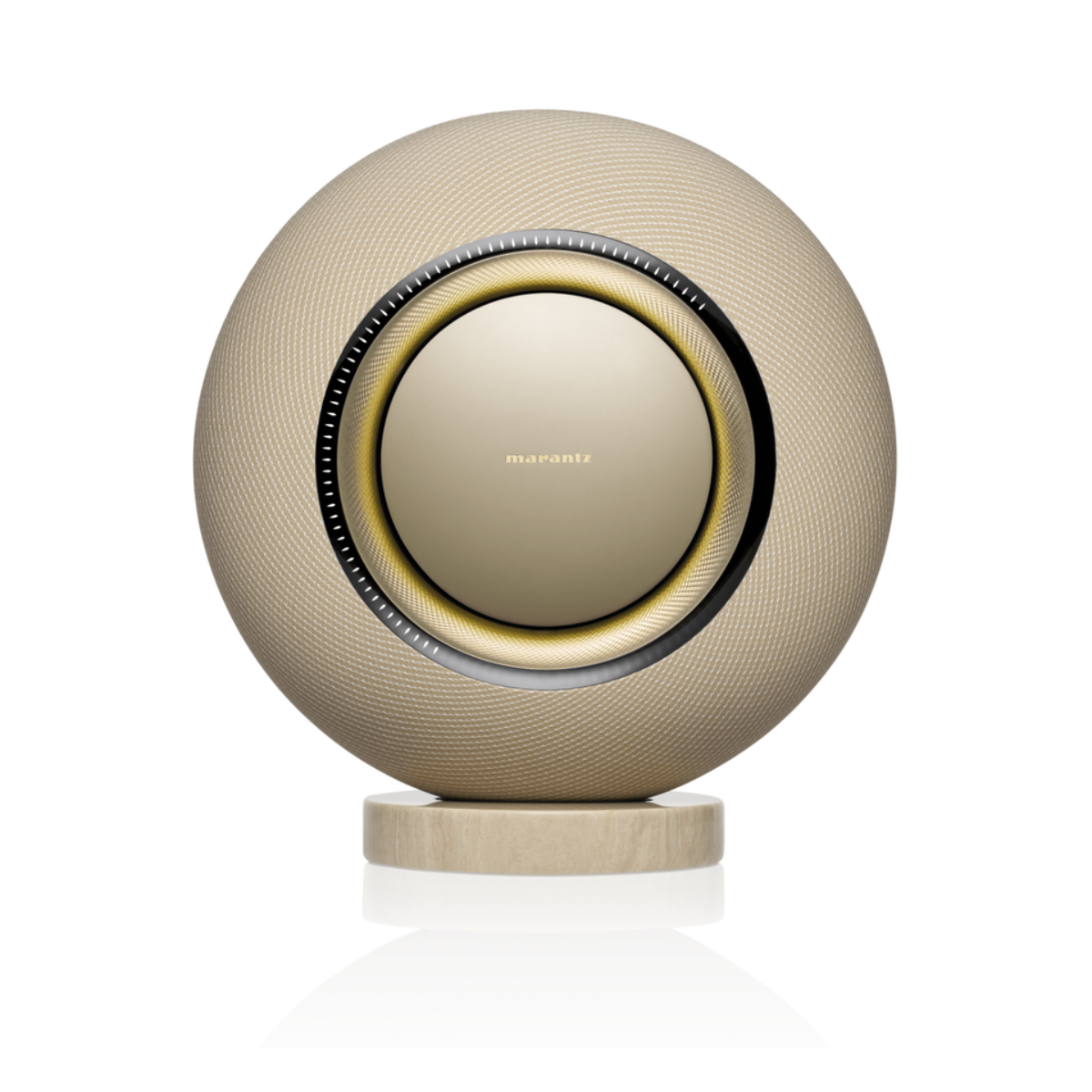

Moon Ray, Midnight Sky, Marantz Champagne

Included
Certificate of Authenticity, QSG, Power Cable, HDMI Cable

User Interface
Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)

Dimensions (H × W × D) mm
493 × 255 × 529.2

Weight (kg)
21.3
