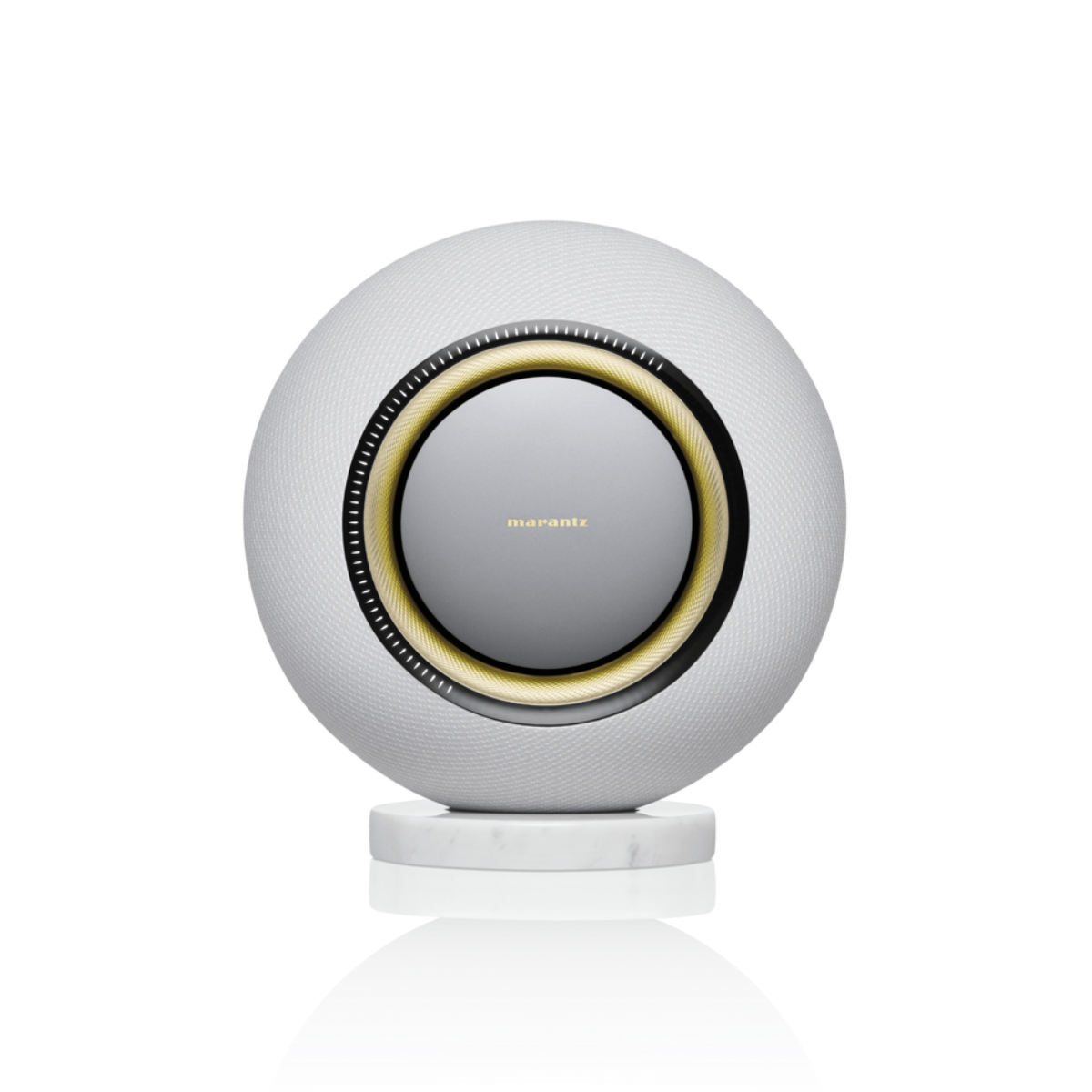

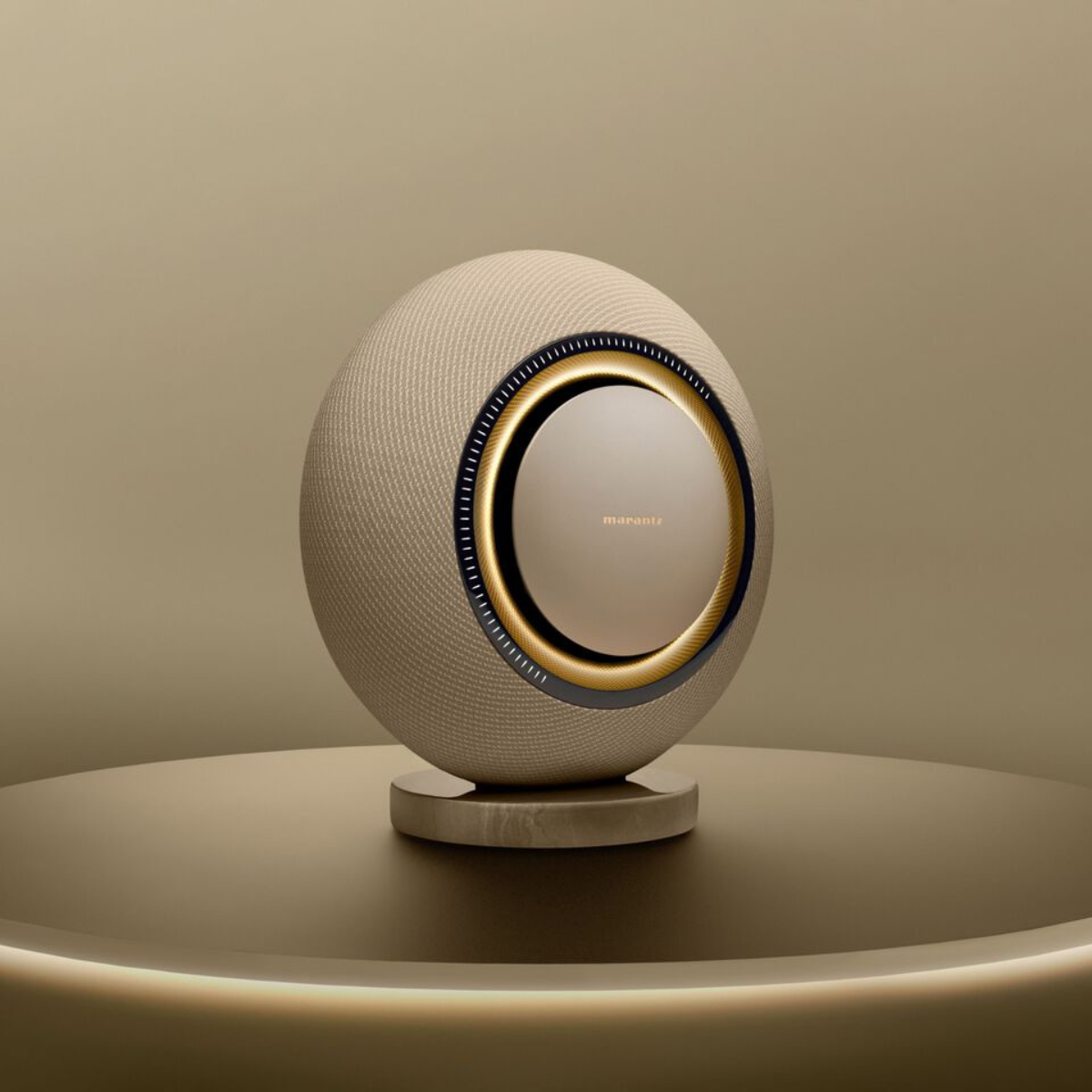

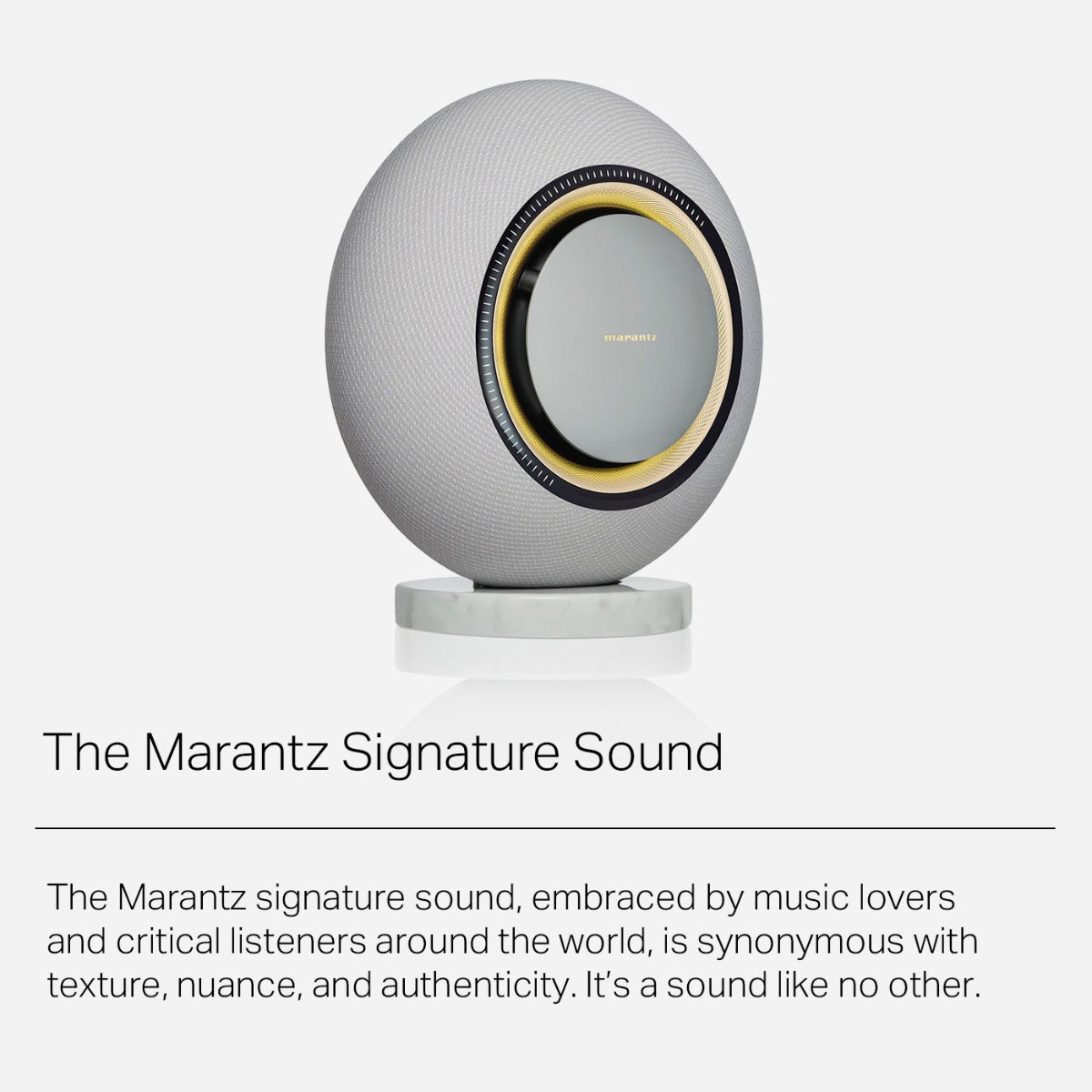

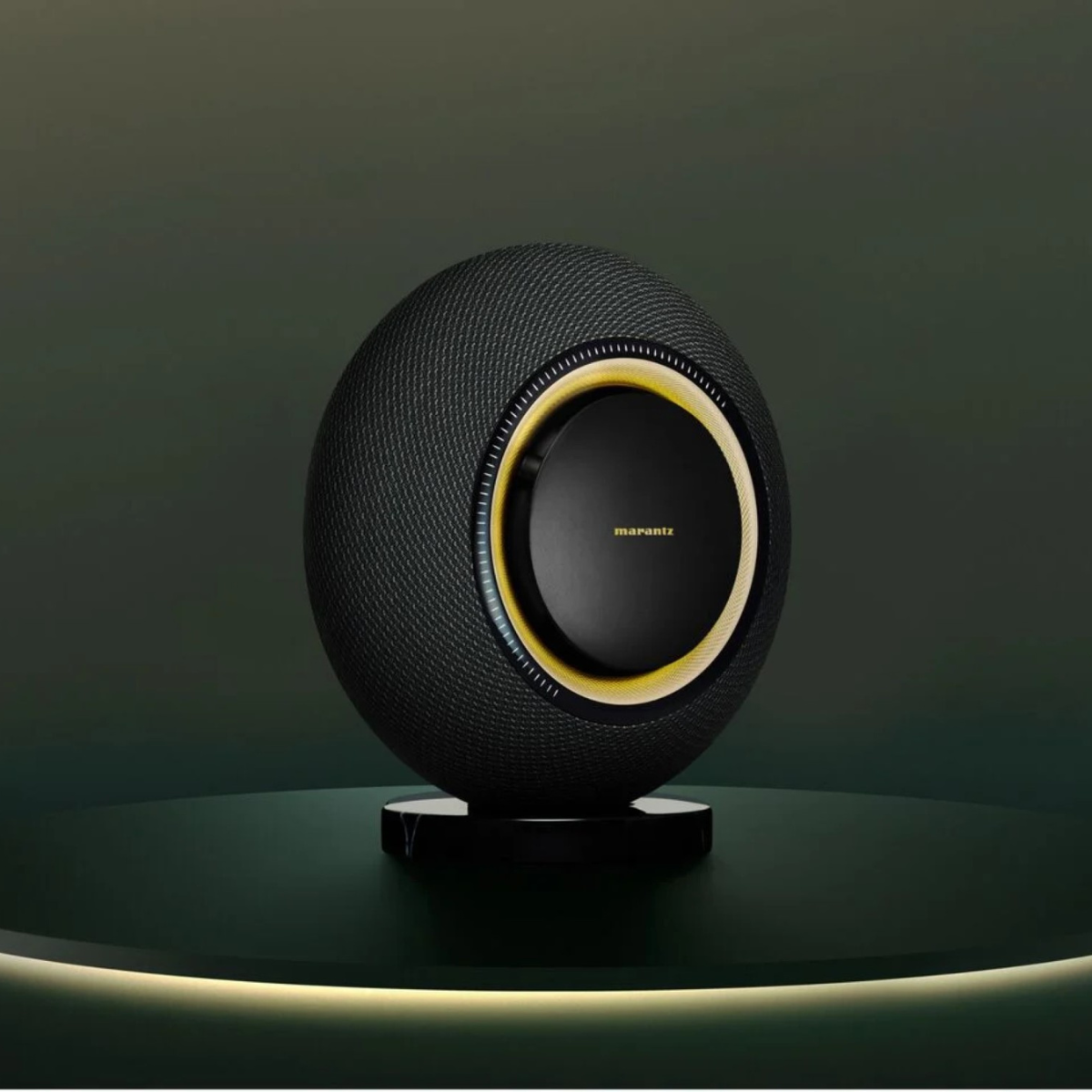

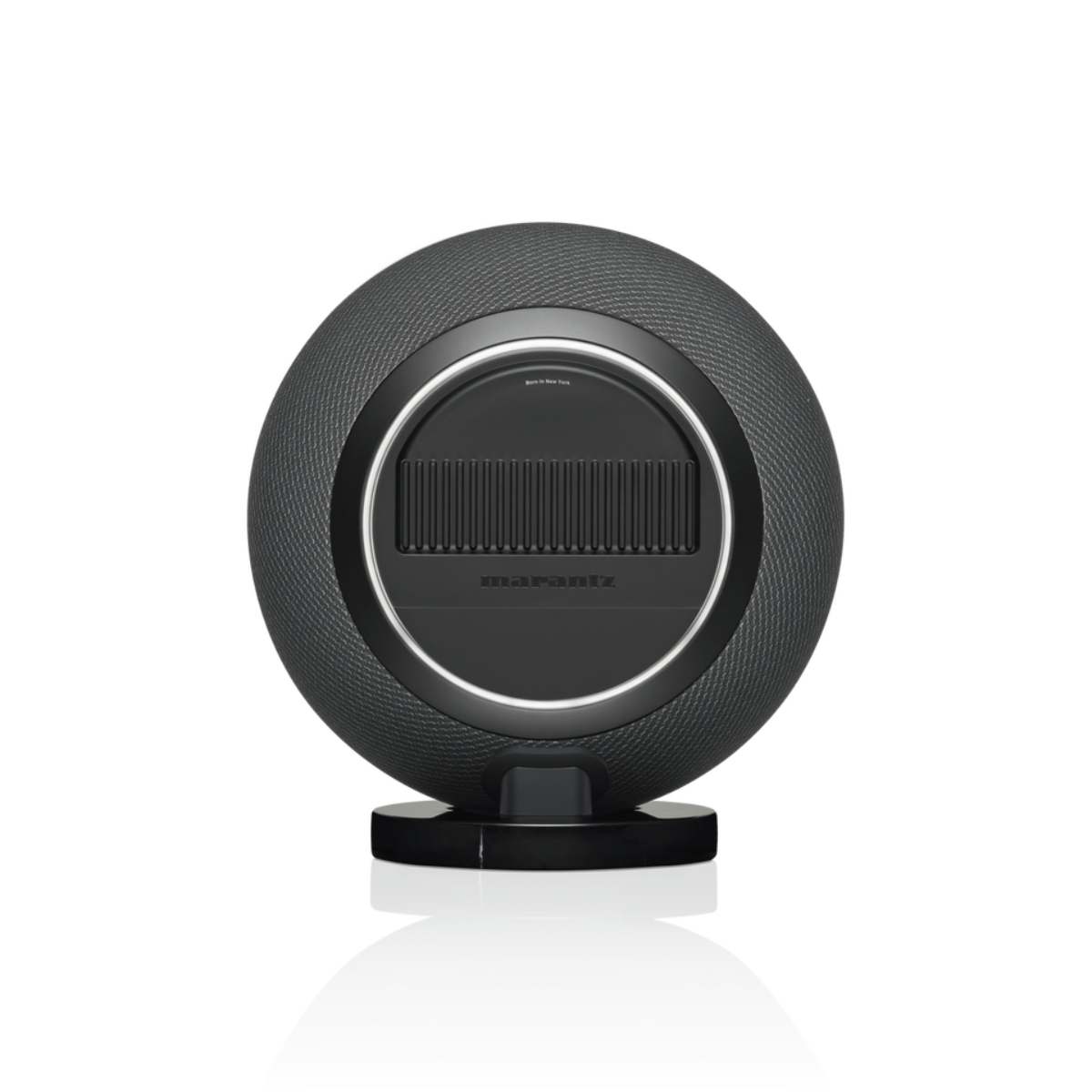

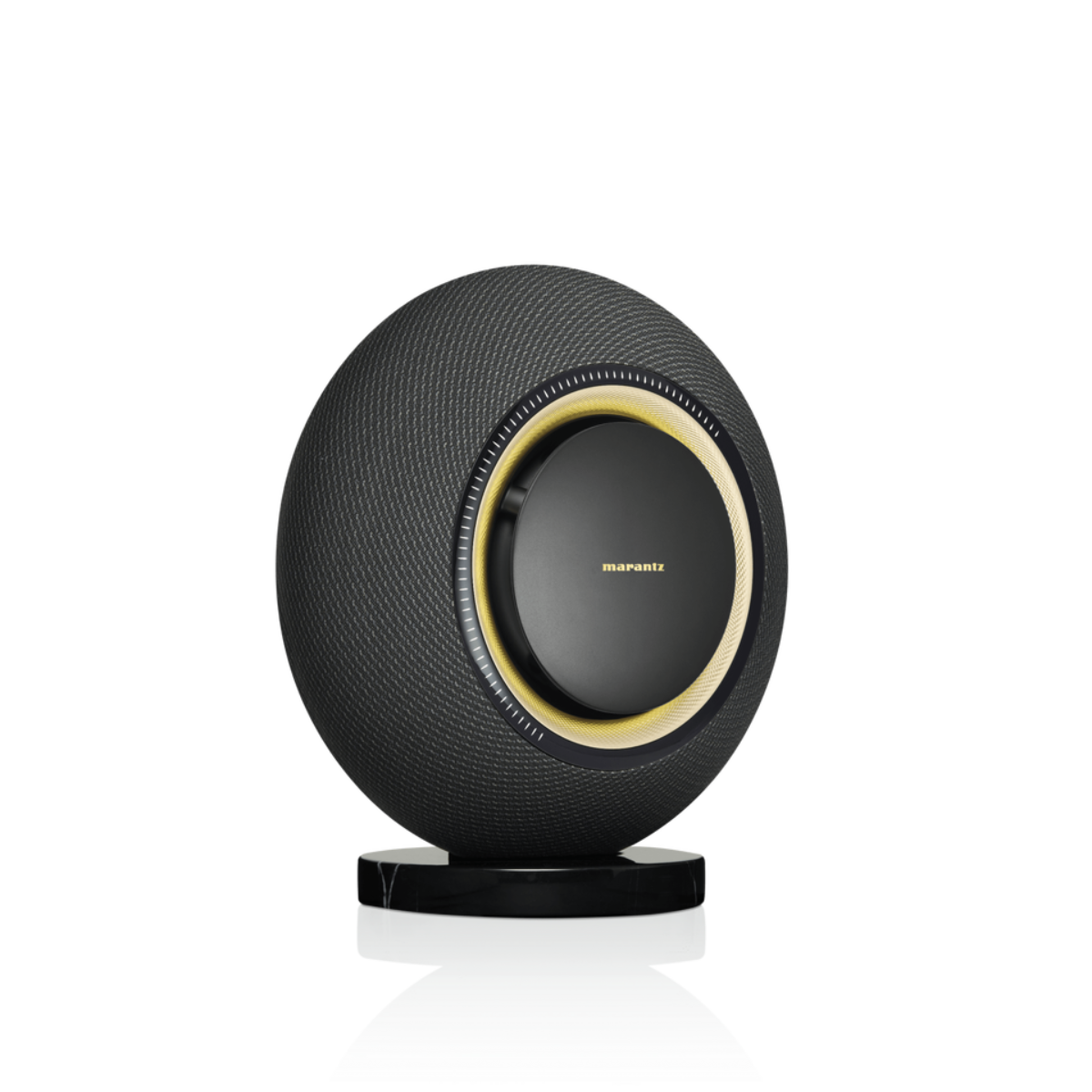

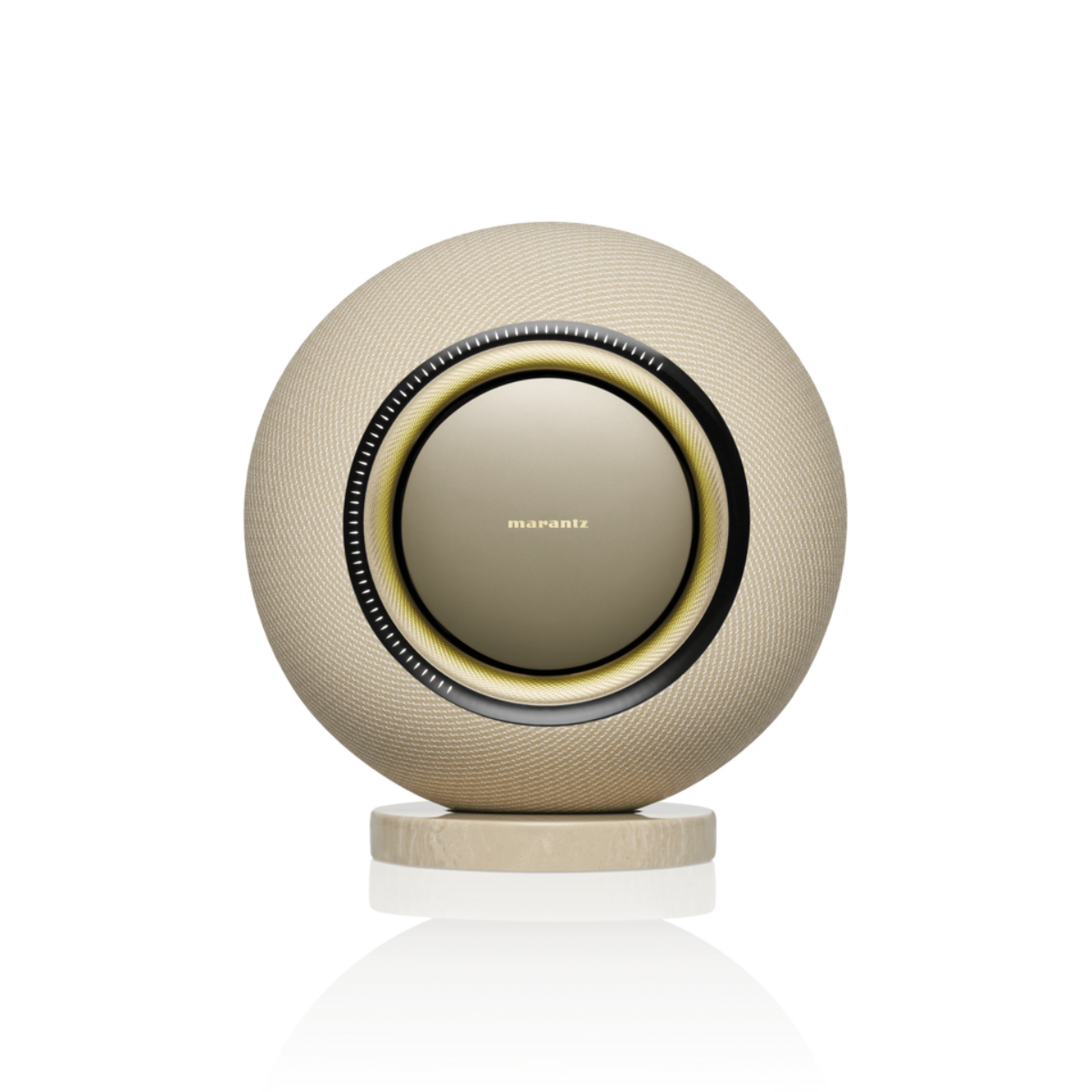

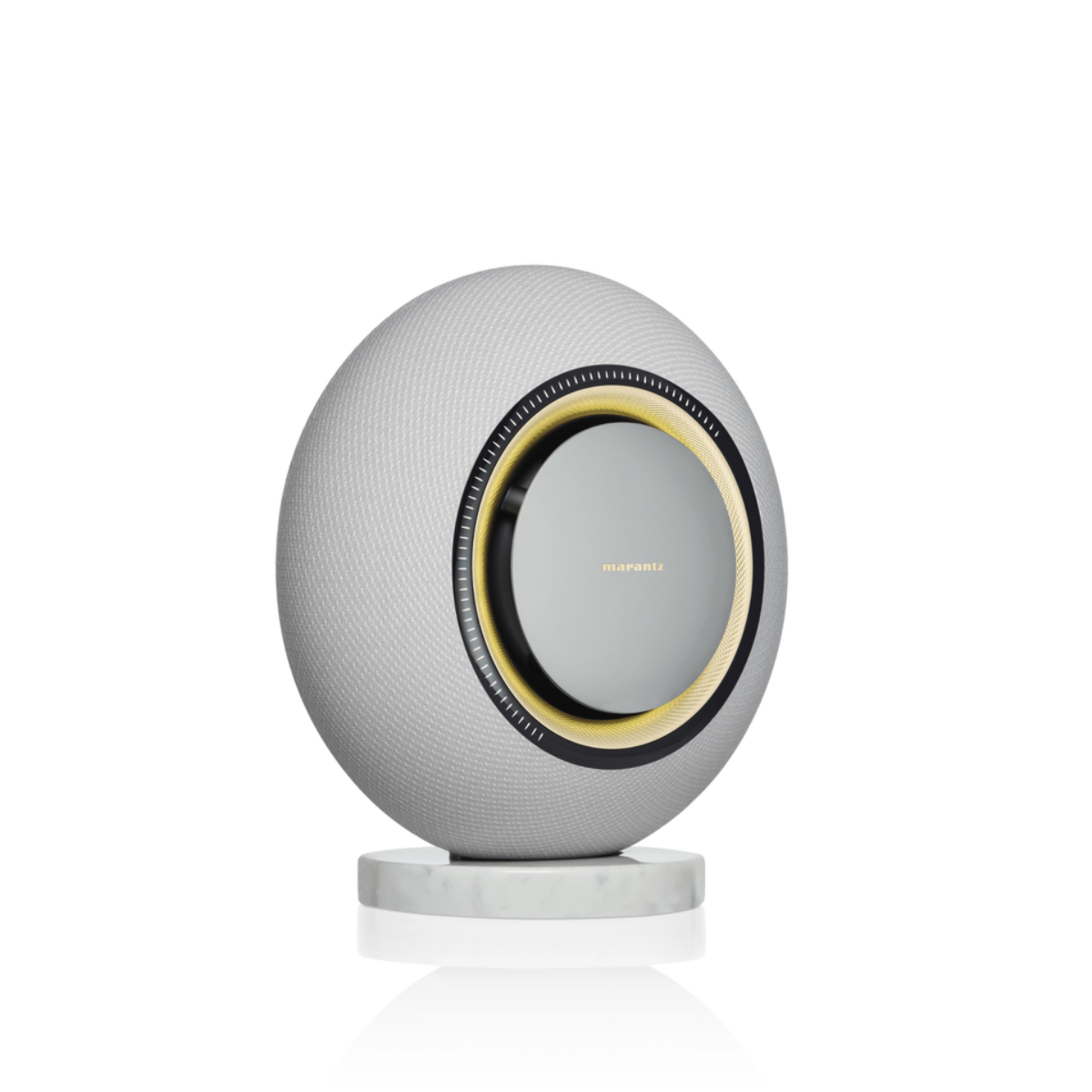

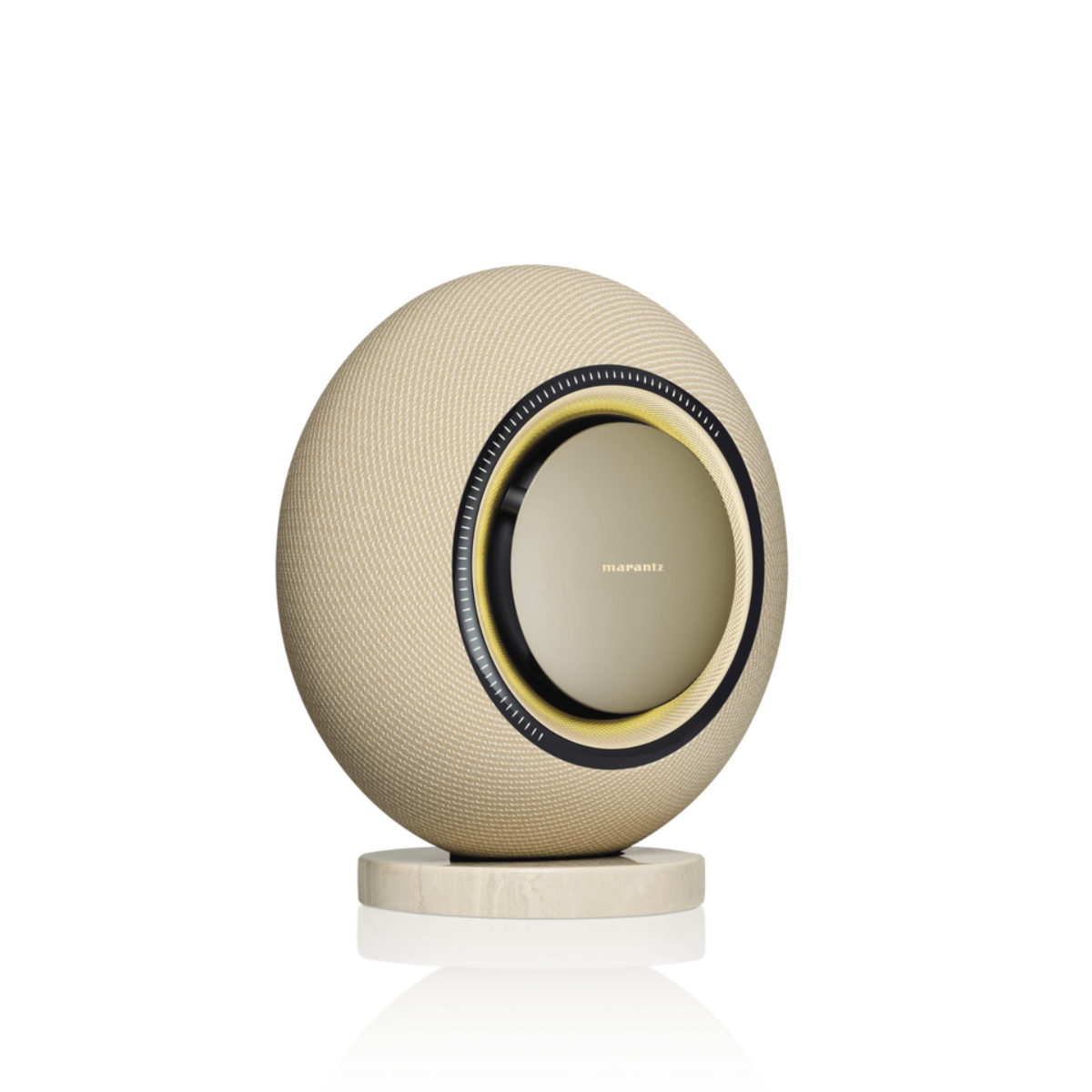

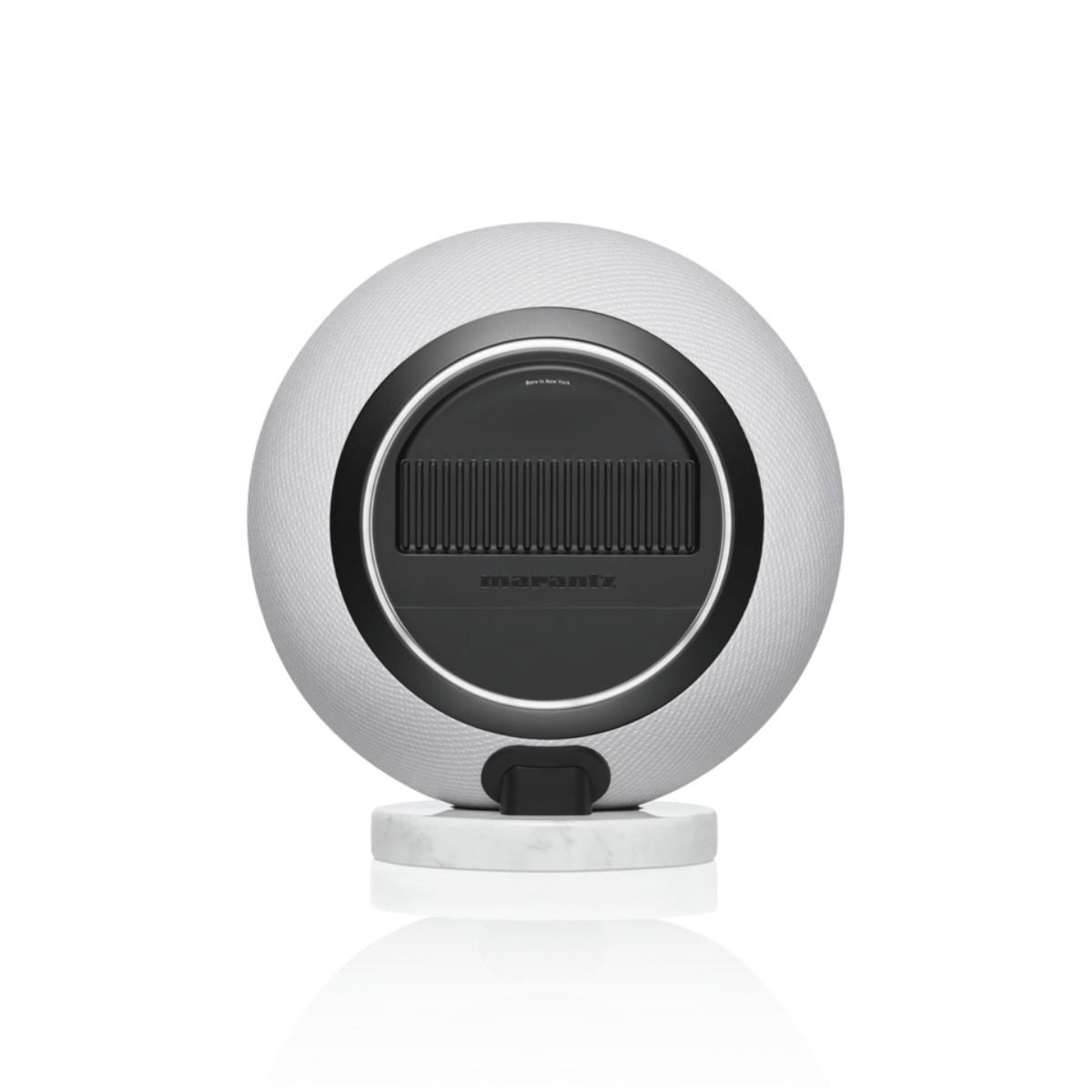

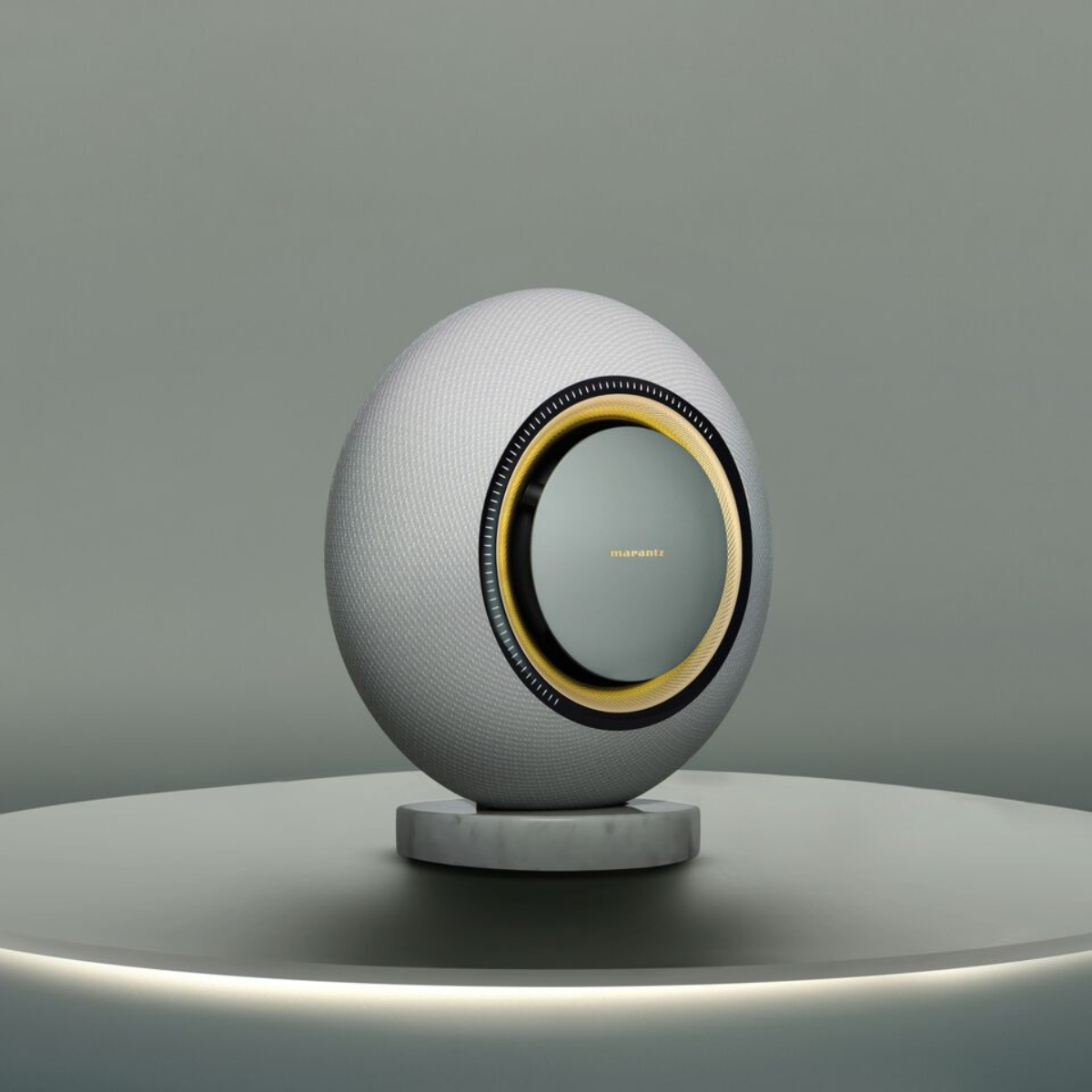

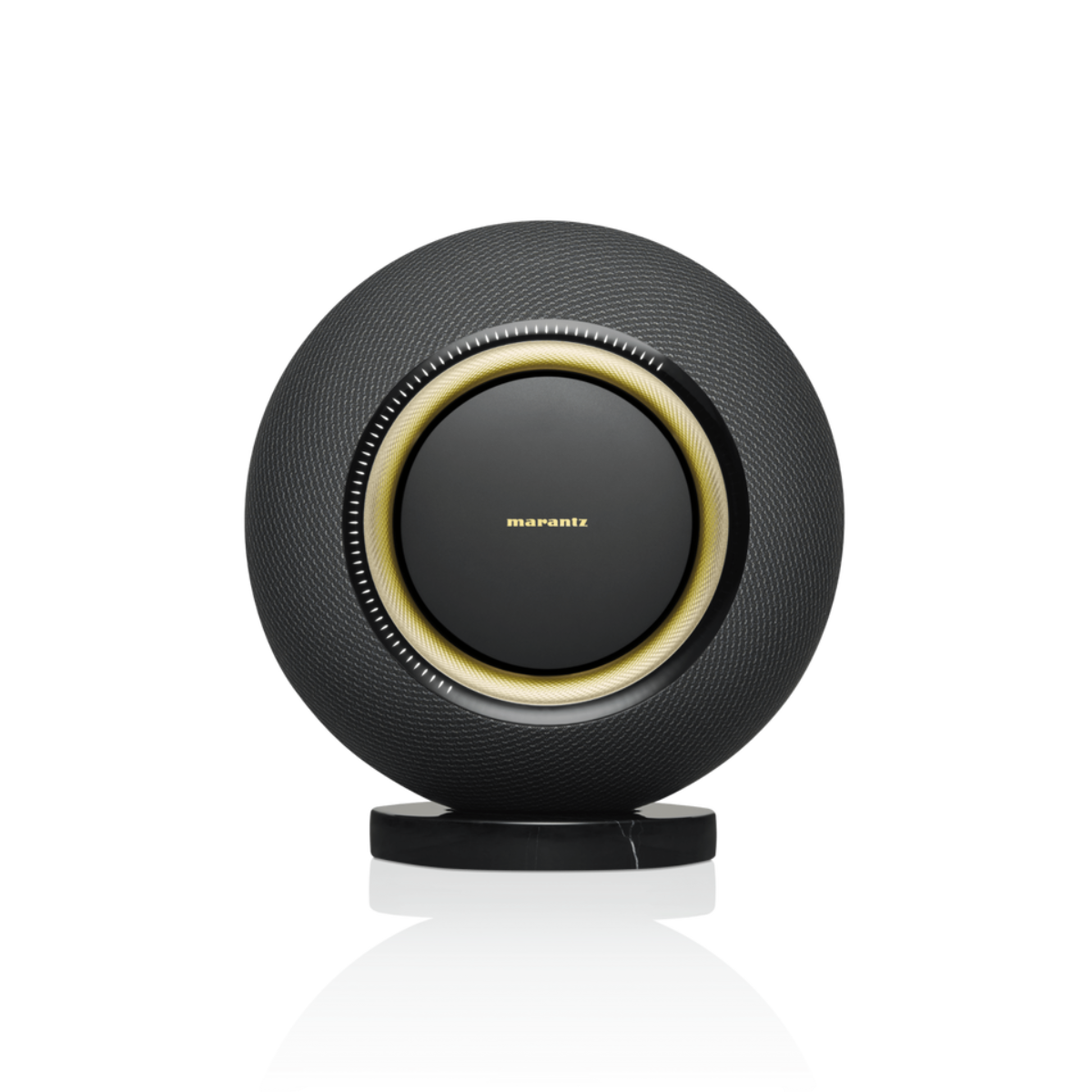

Marantz Horizon Luxury Wireless Speaker

Crafted by Marantz engineers alongside the Sound Master and backed by 70 years of industry-leading excellence,
Marantz Horizon is the ideal choice for a discerning listener who values beautiful design as well as outstanding performance.

• 60W per channel at 8 ohms connection
• Effortless streaming with EOS® Built-in, WiFi, AirPlay2, Bluetooth
• HDMI ARC with CEC support superior TV and gaming sound
• Marantz proprietary HDAM® circuits for detailed audio reproduction
• Hi-Res audio support up to 24-bit 192kHz and Roon-Ready
• Four gold-plated CD and MM phono inputs
• 2.1 channel subwoofer output, Marantz custom speaker terminals
• Rear USB-A input for USB Mass Storage device
• Amazon Alexa, Apple Siri voice control

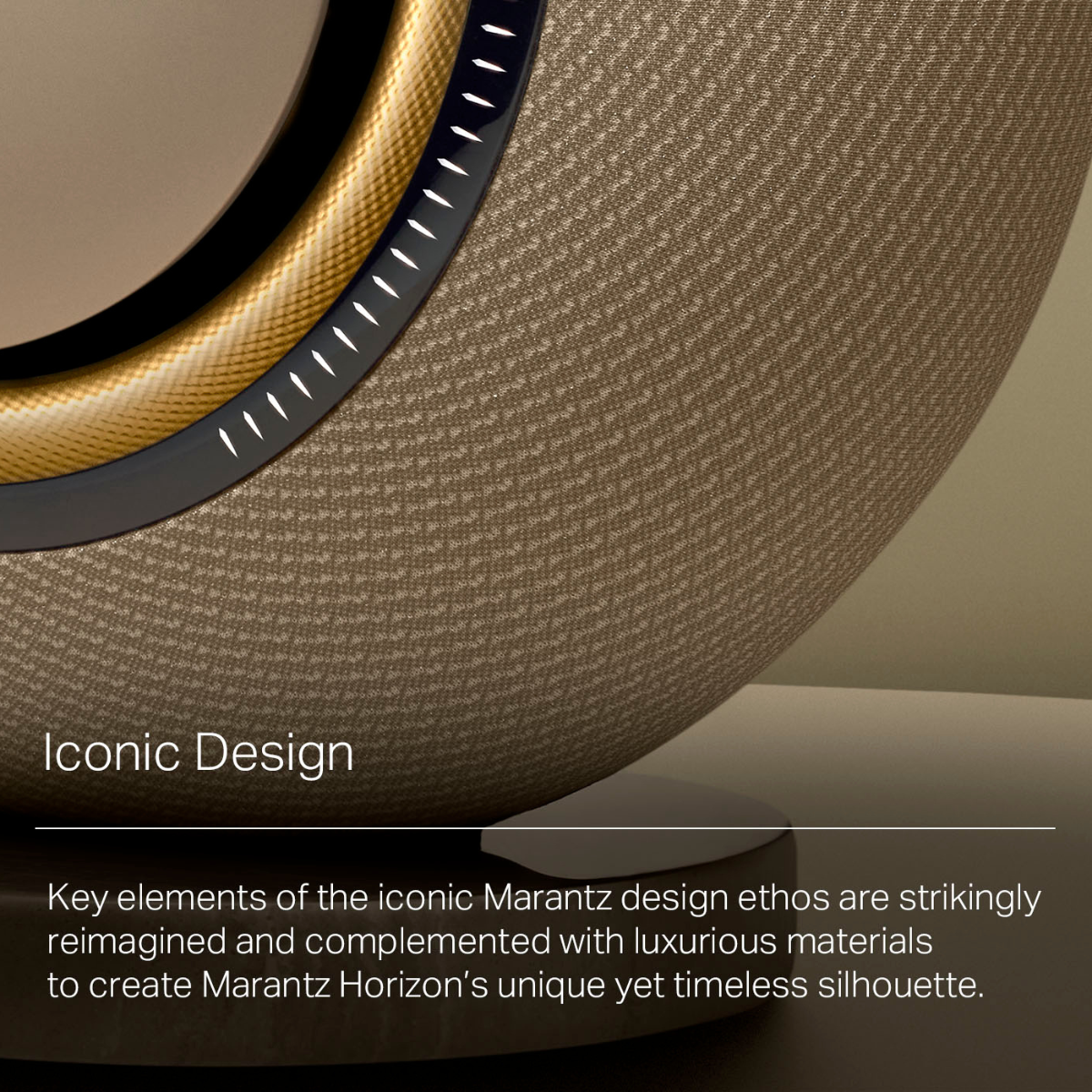

• Marantz industrial design

Technical Specifications

Amplifier

Total Amplifier Power (FTC)
310W (FTC Power Output Rating)

Total Amplifier Power (Peak)
745W (This rating was not tested
under the FTC standard)

Total Amplifier Power (Peak, Raw Amplifier Power)
1160W (This rating was not tested
under the FTC standard)

Amplifier Toplogy

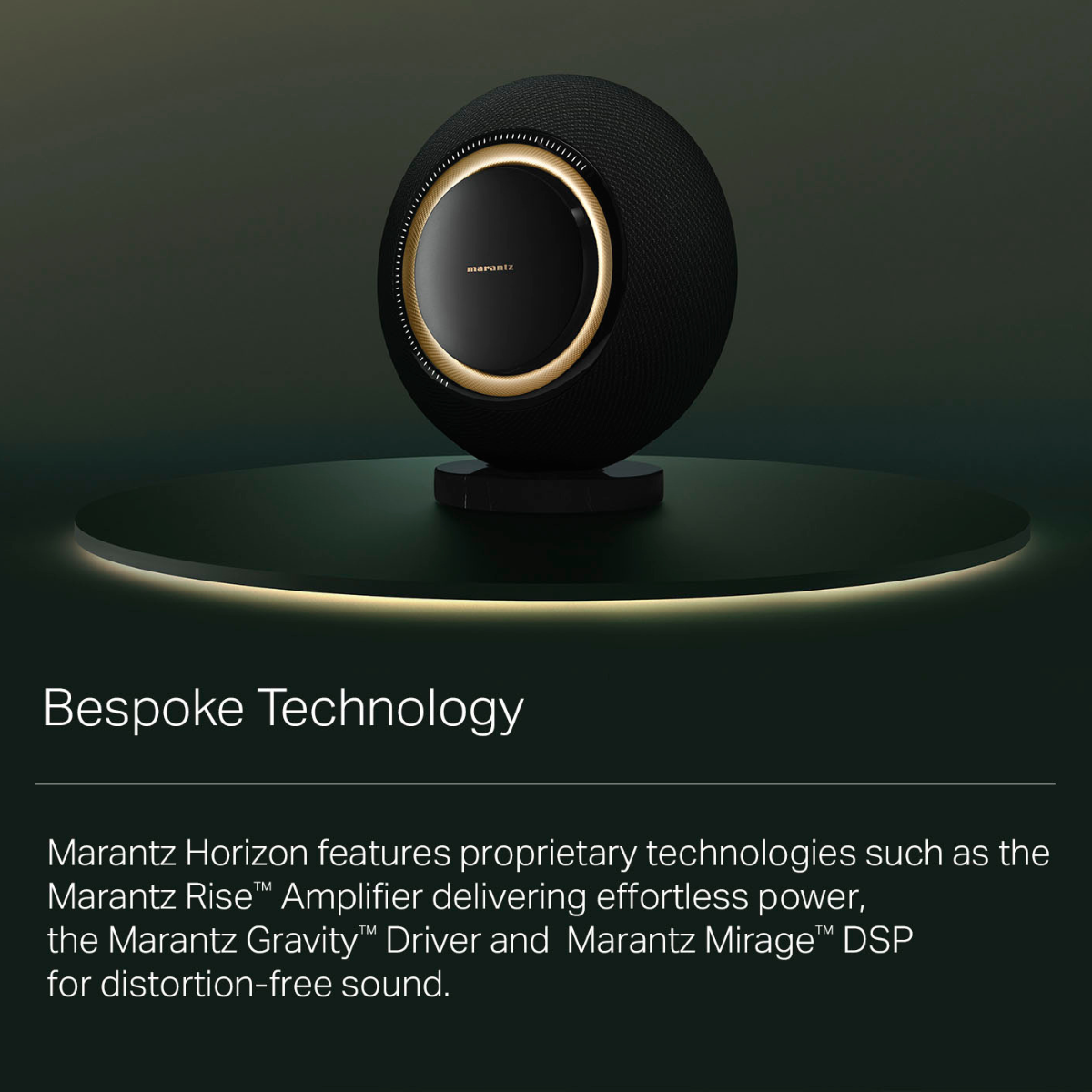

Marantz Rise GaN FET

Loudspeaker Array

Bass - 1× 6.5" Marantz Gravity
Wideband - 3× 2"
High Frequency - 2× 1"

Performance

Frequency Response - 30Hz to 20kHz (+/-3dB), 22Hz (-10dB)
Maximum SPL - 104dB (1M)
Peak SPL - 114.5dB (1M)

Audio Connectivity

Analog - 1 pr. RCA L/R
Digital - 1 ea. TOSLINK Optical
USB - 1 ea. USB-C (Mass Storage)
HDMI - 1 ea. eARC / ARC

Audio Format Support

Decoding
Dolby Atmos, Dolby TrueHD, DSD
Dolby Digital+, Dolby Digital, LPCM

Max PCM Sample Rate / Bit Depth
Stereo: 192kHz / 24 bit
Multi-Channel: 192kHz / 24 bit (7.1 Channel)

Max DSD Data Rate
5.6 MHz (DSD ×2)

Stereo File Formats (HEOS network share or USB)
WMA: up to and including 192 kbps
AAC & MP3: up to and including 320 kbps
WAV, ALAC, FLAC: up to and including 24-bit/192kHz
DSD: 2.8 MHz, 5.6MHz

Streaming Technologies

Bluetooth - BT 5.4
AirPlay - AirPlay 2
Spotify - Spotify Connect

Music Services and Sources

Music Services Supported (HEOS, subject to change and local availability)
Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, TIDAL, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.

Music stored on mobile device
Yes (iOS, Android, or Kindle Fire)

NAS (Network Attached Storage)
Network share, UPnP

USB Storage Device Playback
Yes (FAT32, NTFS formatted drives)

Networking & Control

Wired Connectivity
Ethernet

Wireless Connectivity
Dual band, 802.11 a/b/g/n/ac/ax

Control System Compatibility via TCP/IP
Crestron, Control4, AMX

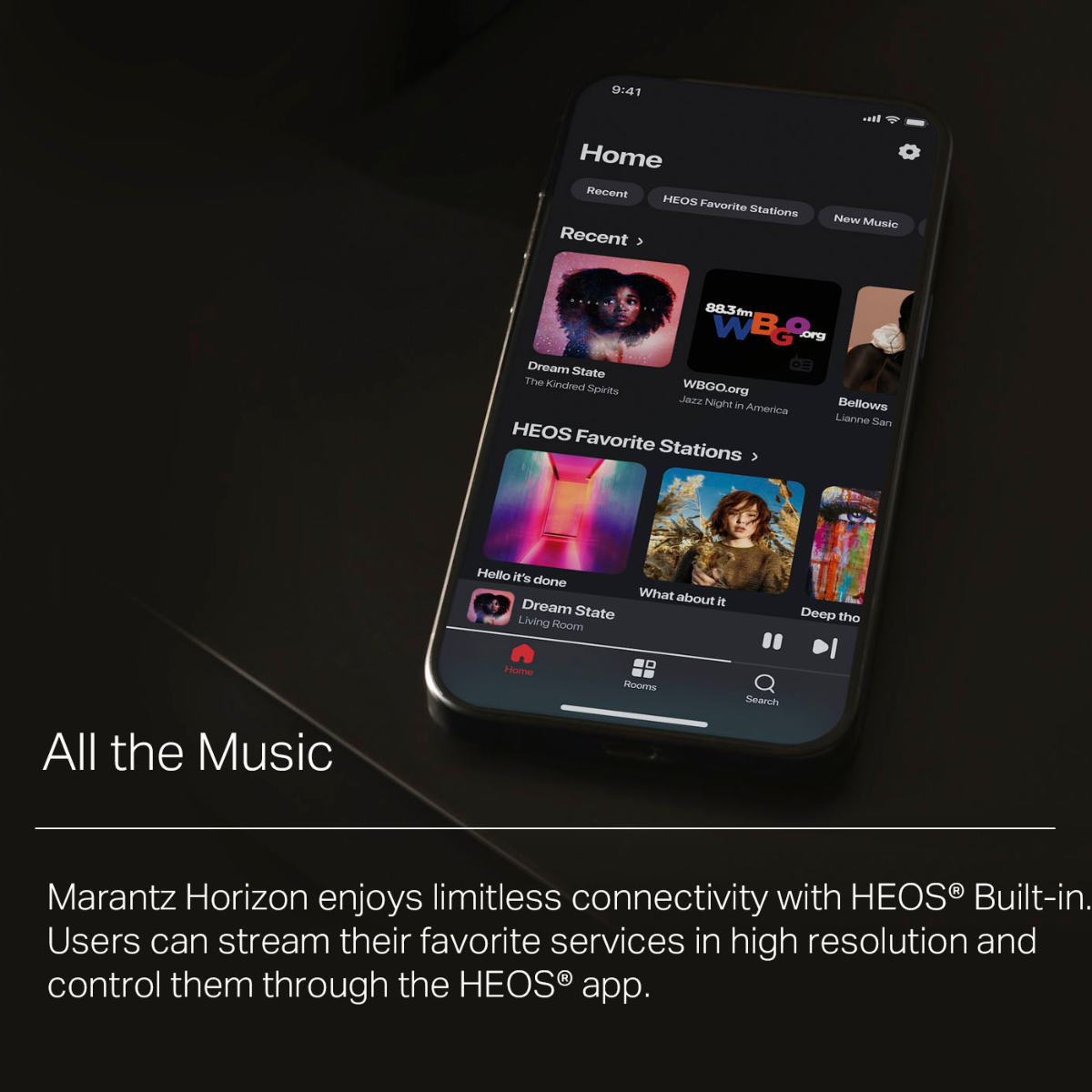

HEOS App
iOS, Android, Kindle Fire

General

Product Color

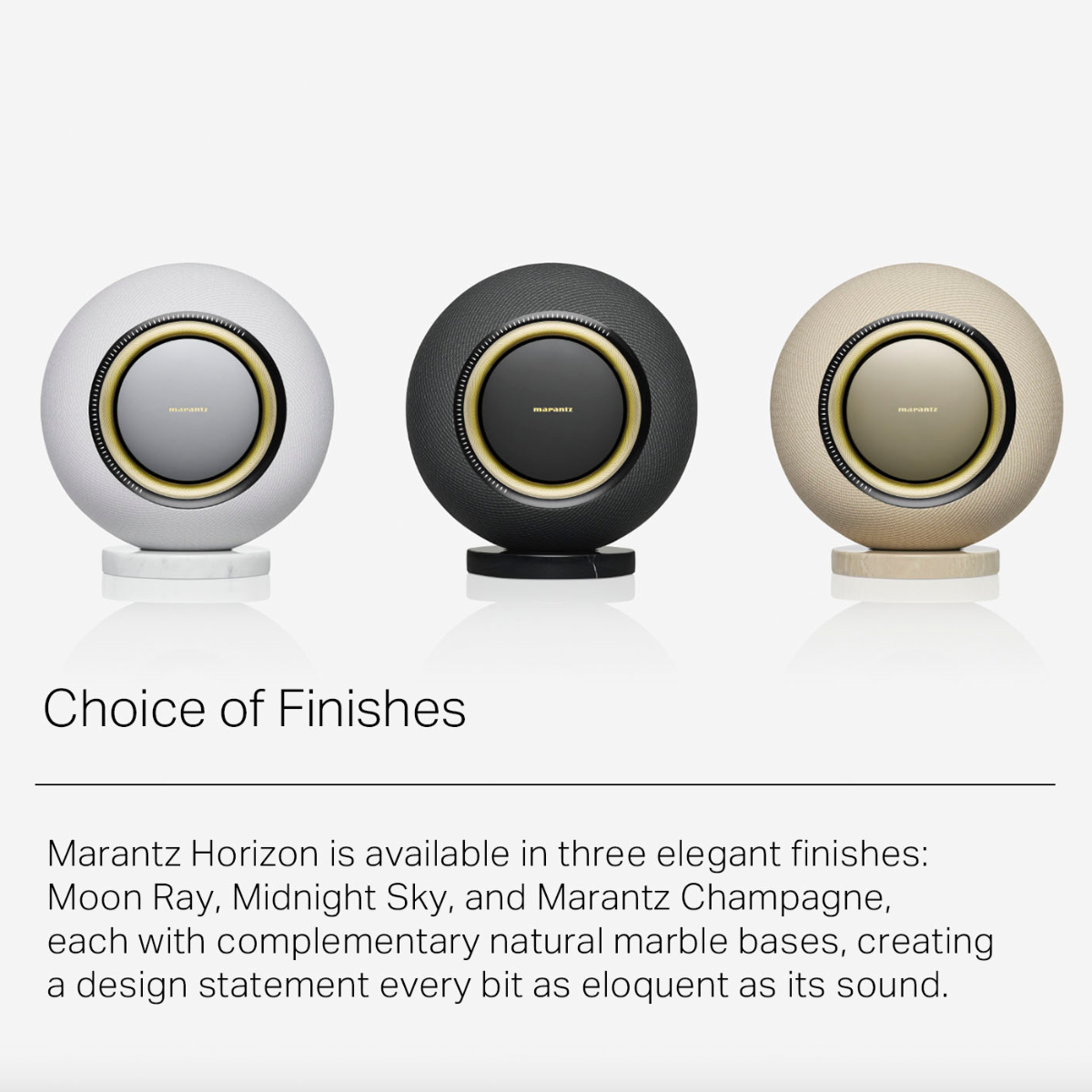

Moon Ray, Midnight Sky, Marantz Champagne

Included
Certificate of Authenticity, QSG, Power Cable, HDMI Cable

User Interface
Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)

Dimensions (H × W × D) mm
364 × 210 × 387.5

Weight (kg)
12.5
