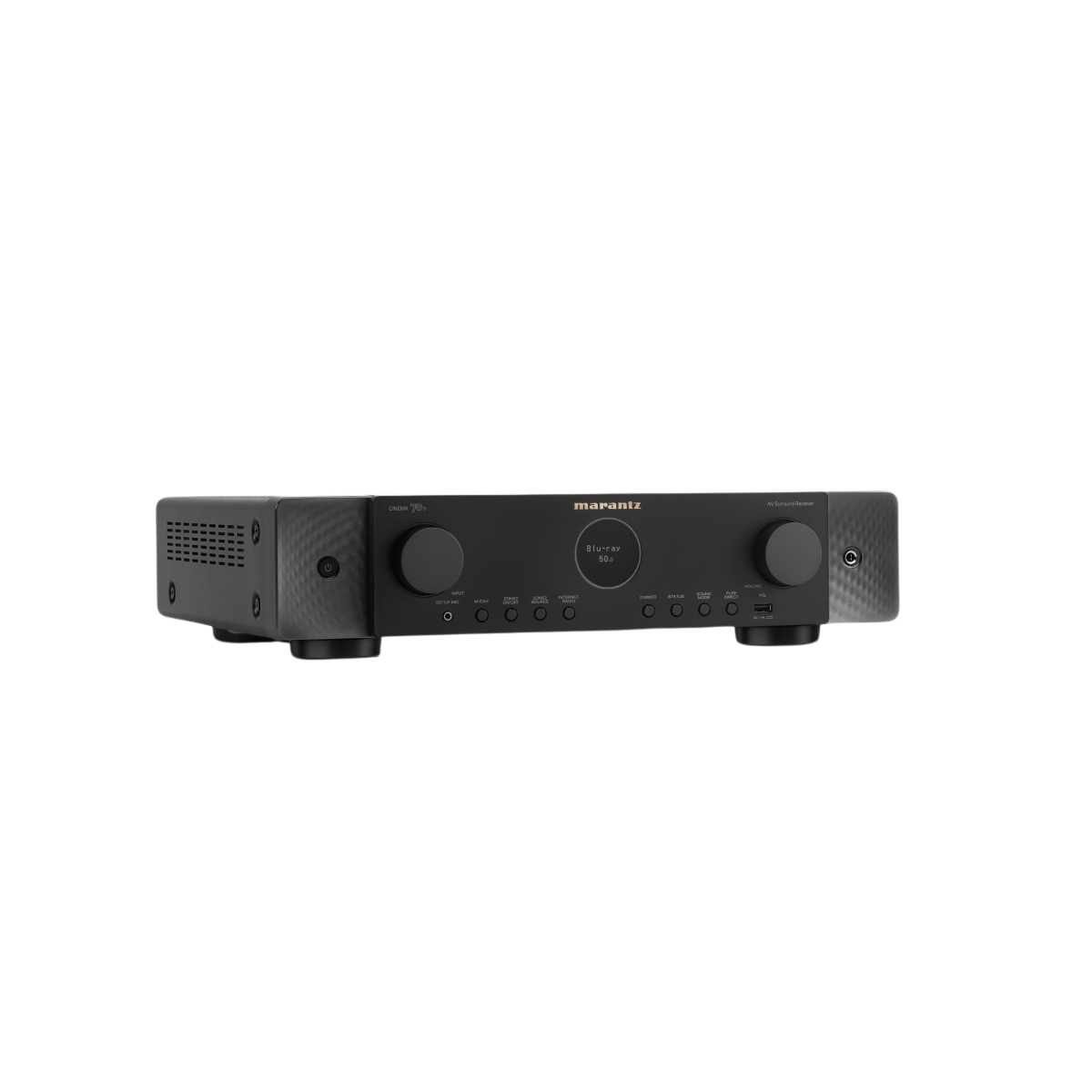

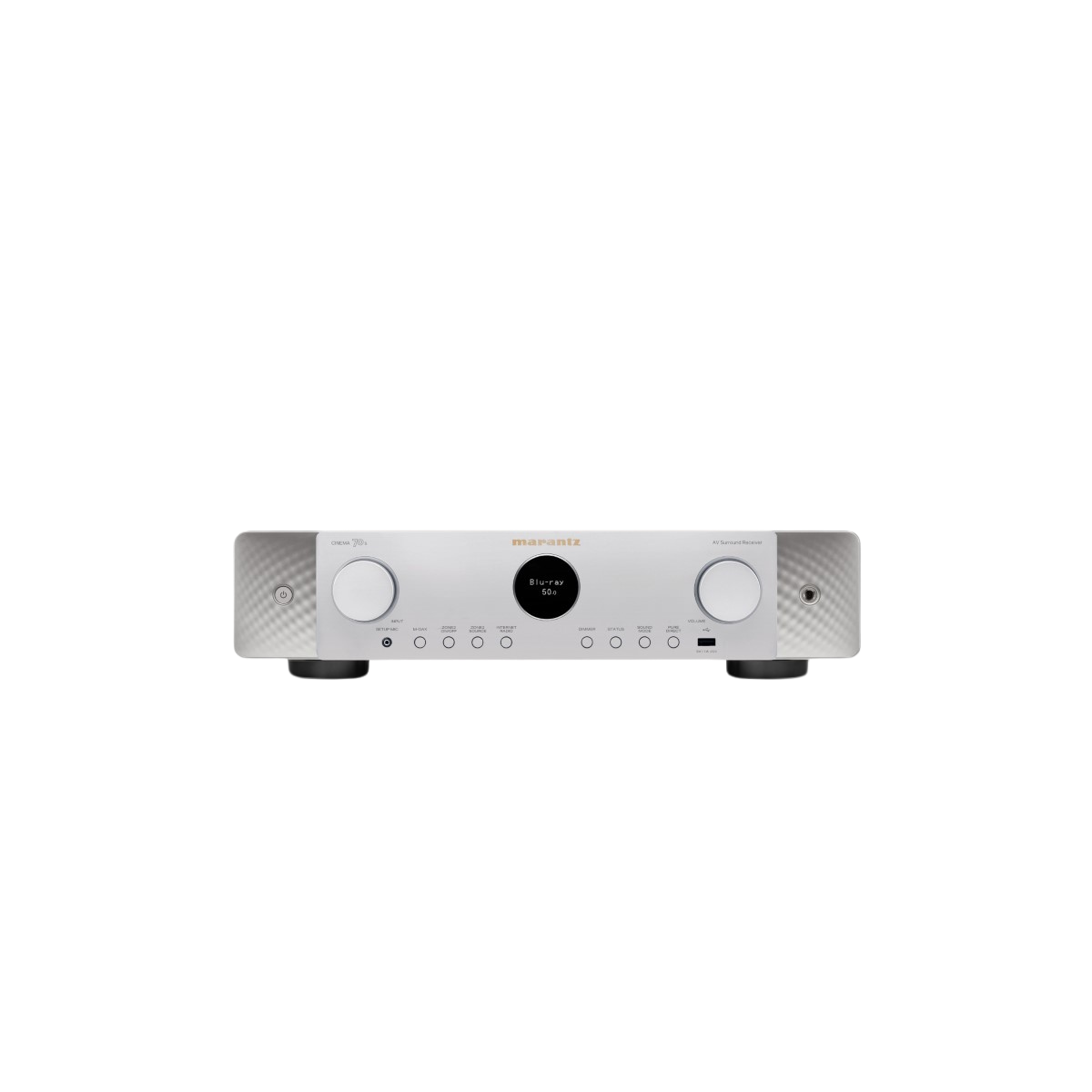

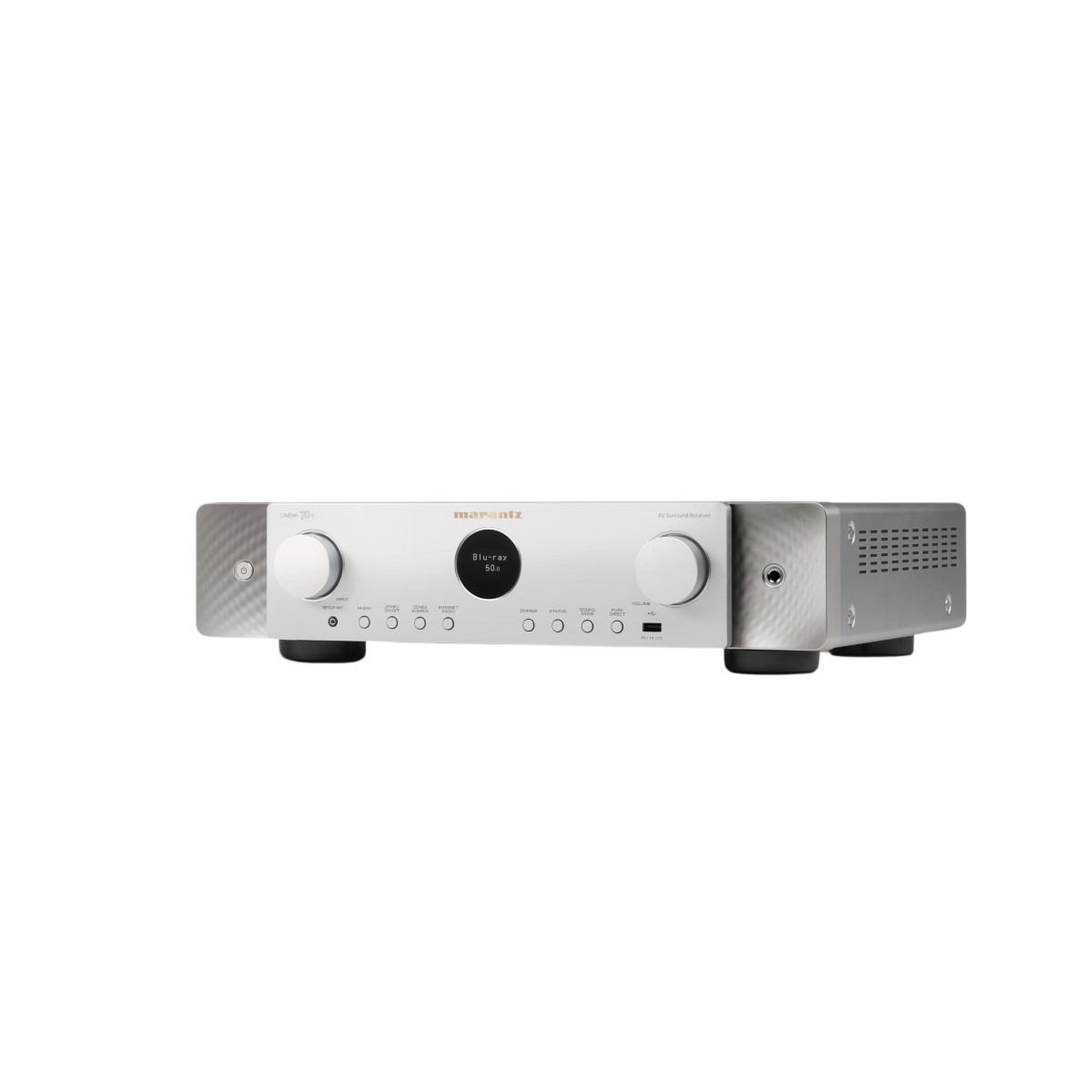

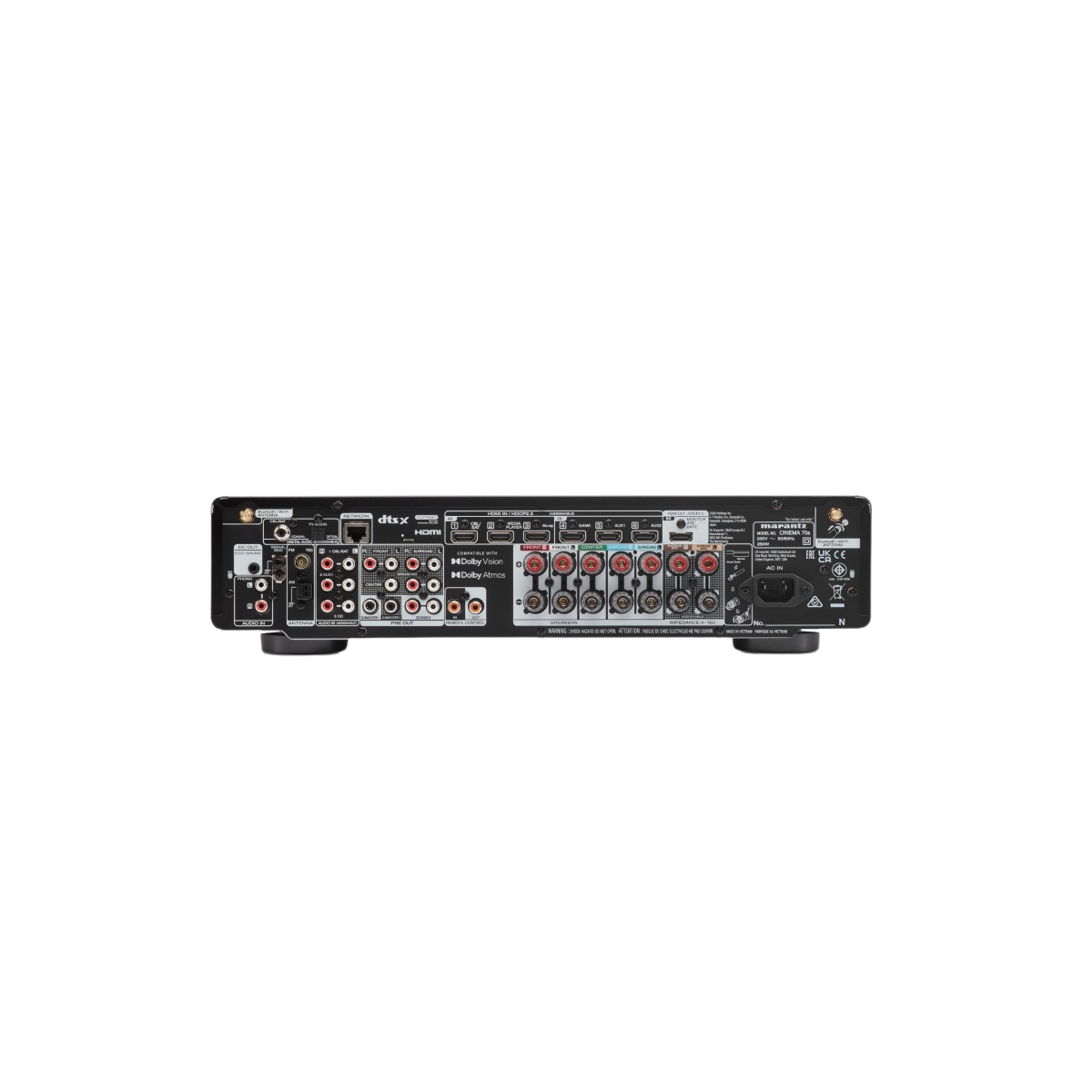

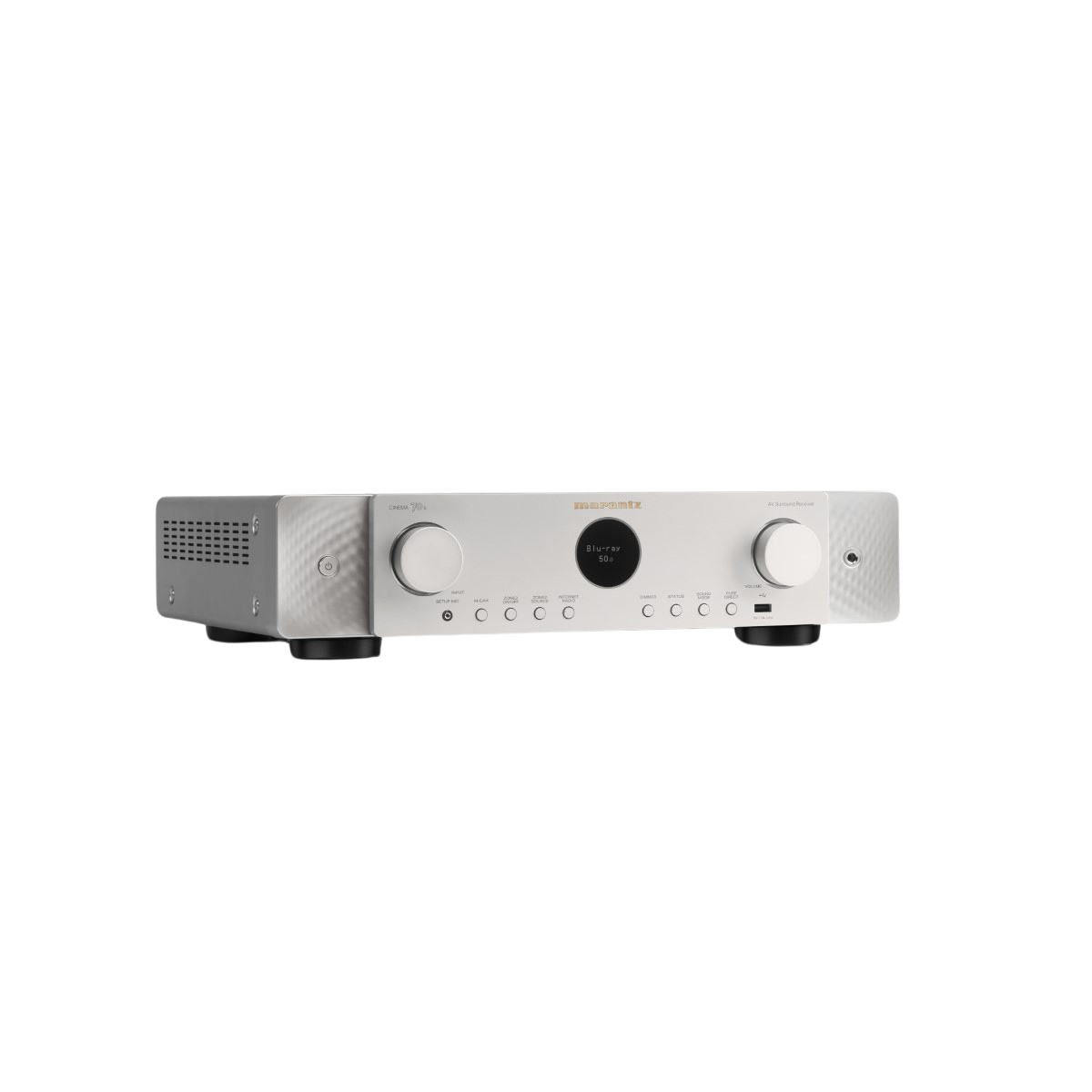

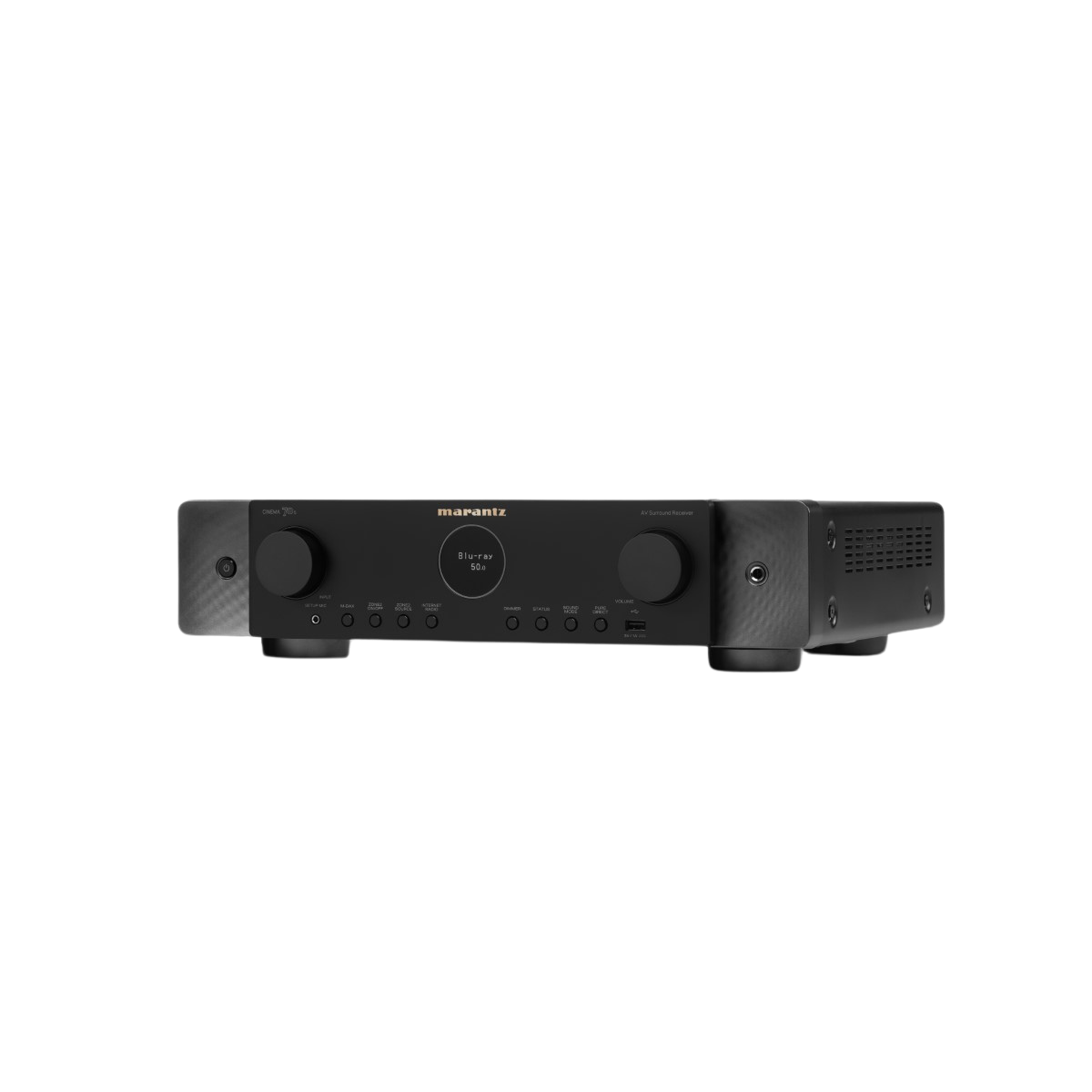

Marantz Cinema 70s Power Amplifier

• Number of Powered Channels 7
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 50 W
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 70 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 100 W
• 70% Guarantee Yes
• Discrete Power Amplifier Yes
• Amplifier Topology Class A/B
• Current Feedback Topology No
• Bi-Amp Drive assignable

• DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
• Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
• Other
• Max Number of Processing (Preamp) Channels 7.1

• Composite In / Out 0 / 0
• Component In / Out 0 / 0
• HDMI In / Out 6 / 1
• Multi-Room Video Out via HDMI No
• Analog In / Fixed Level Out 3 in / 0 out
• Phono (MM) In Yes
• Digital In: Optical / Coaxial 1 / 1
• Multi-Room Out: analog / digital 1 / 0
• Multichannel Preamp Out 7.2
• Subwoofer Out 2
• 7.1 multichannel input No
• Number of Speaker Terminals 7
• Speaker A / B assignable
• Multi-Room Speaker Terminal assignable
• Front Inputs USB-A
• USB Audio / Made for iPod / Made for iPhone Yes / No / No
• AM/FM Tuner Yes

• Total HDMI Inputs / No. Support 8K 6 / 3
• HDCP2.3 support Yes
• HDMI Outputs: Main / Zone 1 / 0
• Analog to HDMI Video Conversion No
• HDMI Upscaling 1080P/4K to 8K
• Max resolution @ framerate 8K/60Hz, 4K/120Hz
• Audio Return Channel ARC, eARC
• Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
• ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
• Variable Refresh Rate / Quick Frame Transport Yes / Yes
• HDMI Pass-Through in Standby Mode Yes
• CEC Yes
• DSD Audio over HDMI No
• Auto LipSync Yes

• Copper Plated Chassis No
• Toroidal Power Supply Transformer No
• Hyper Dynamic Amplifier Modules (HDAM) (List version) No
• Pure Direct Mode Yes
• Gold Plated RCA Terminals No
• Clock Jitter Reducer No

• Audyssey MultEQ
• Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
• Audyssey LFC No
• Dirac Live Support No
• Variable Cross Over Yes
• Optimized Bass Redirection Yes
• Bass Sync No

• Lossy Formats MP3 / WMA / AAC
• Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
• DSD Audio 2.8 MHz / 5.6 MHz
• Gapless Playback FLAC, WAV ,ALAC ,DSD
• Compressed Audio Enhancer: MDAX2 Yes
• Network Audio Sharing Yes

• HEOS Multi-room and Streaming Yes
• AirPlay Audio Streaming AirPlay 2
• Internet Radio TuneIn
• Spotify* Spotify Connect
• Pandora Yes
• SiriusXM Yes
• Other Streaming Services * Amazon Music HD/
  Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
• Roon tested Yes

• Ethernet Ports Yes
• Wi-Fi (include version / band) Yes
• Bluetooth (Include version) Yes
• Bluetooth Re-transmit for Bluetooth headphones Yes

• Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple Home Pod
• App for Smart Phones & Tablets (iOS & Android) Marantz AVR Remote App, HEOS
• HEOS Multi-Room Integrated Yes
• HEOS Link Compatibility: IR/ IP Yes /Yes
• Multi-Room zones 2
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
• Zone Audio Output: Speaker / Preout Yes / Yes
• Zone HDMI Output from HDMI Source No
• Control Connectivity IP Control / Web Control / App Control
• IR Flasher In Yes
• Marantz Remote Bus Yes
• DC Trigger Output 1
• HDMI Diagnostics Yes

• Front Display port hole OLED
• GUI Languages 3
• Setup Assistant Yes
• Smart Select on Remote Yes
• Firmware Update by Network / USB Yes / Yes
• ECO Mode Yes
• Auto Power off Yes
• Sleep Timer Yes

• Available Colors Black
• Metal Front Panel No

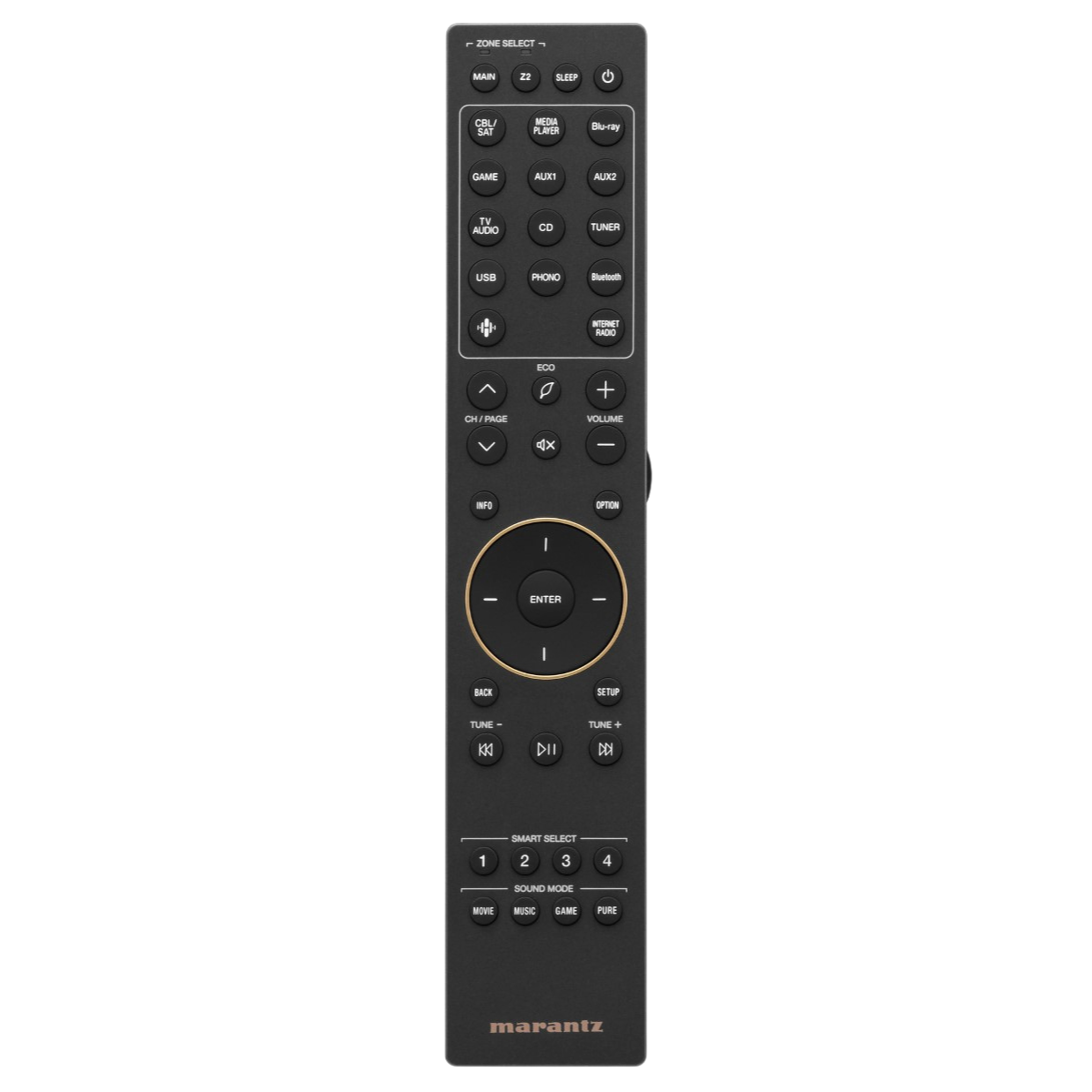

• System Remote Control RC050SR
• Power Consumption in W 250
• Power Consumption No-Sound (ECO on/off) in W 30 / 40
• Standby Consumption in W 0.2
• CEC Standby Consumption in W 0.5
• Network Standby Consumption in W Less than 2.0
• Maximum Dimensions
  Antenna: Horizontal:(W x D x H) in inches
  Antenna: Vertical :(W x D x H) in inches
  W/o Antenna:(W x D x H) in inches 17.4 x 15.1 x 4.3
  17.4 x 15.1 x 7.0
  17.4 x 14.7 x 4.3
• Weight in lbs. 19.2
• What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord

Warranty

• 1 Year Local Warranty
