Marantz
Regular price
$4,099.00 SGD
Regular price
$4,299.00 SGD
Sale price
$4,099.00 SGD
Unit price
/
per
Tax included.
Couldn't load pickup availability

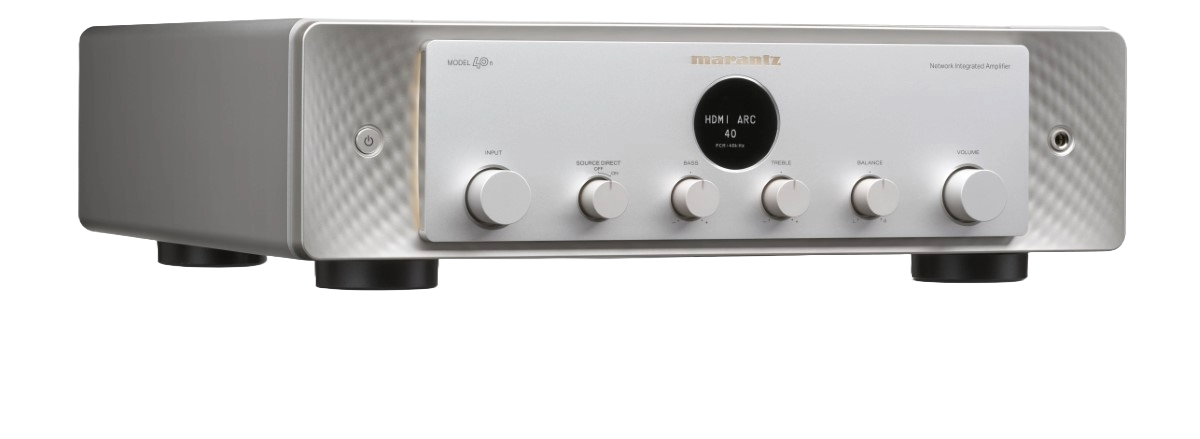

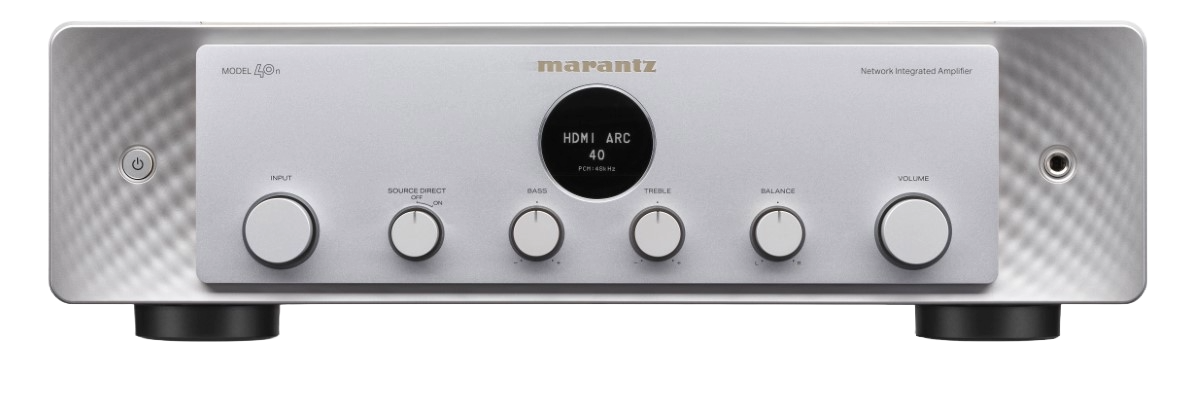

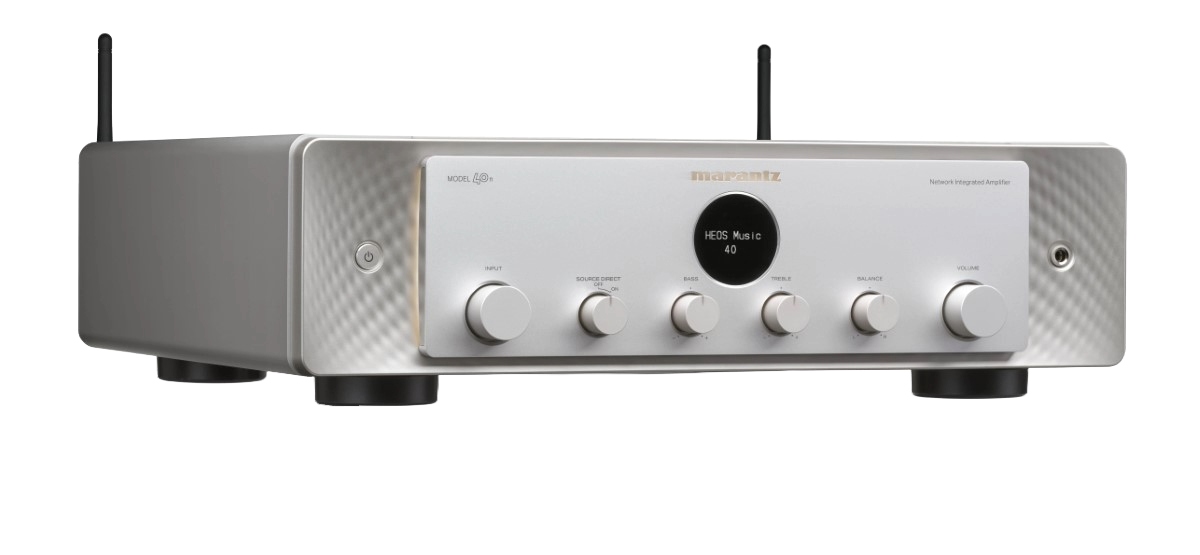

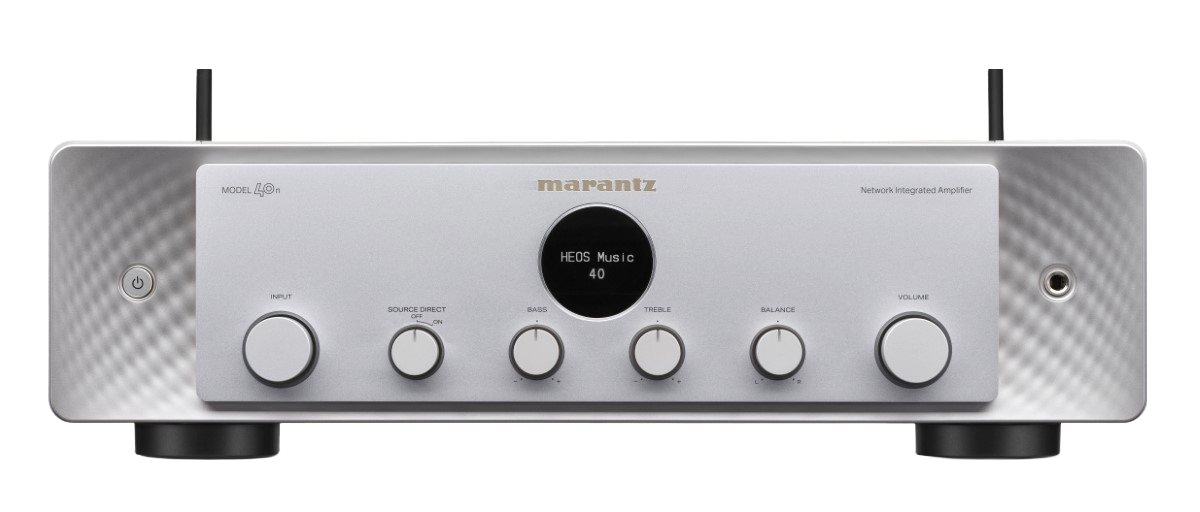

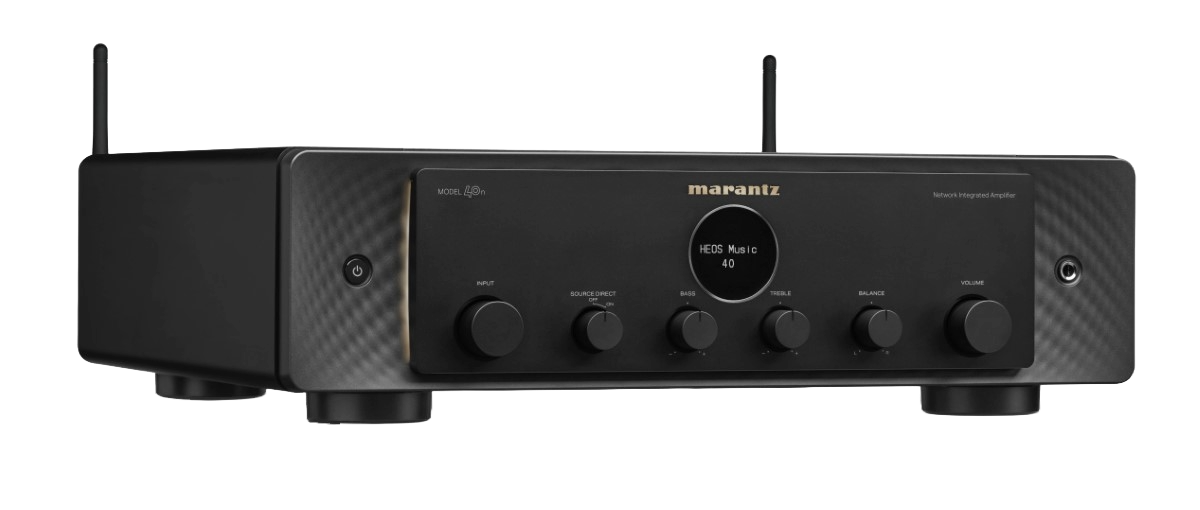

Marantz has reimagined the integrated amplifier for the digital age while preserving a luxurious analog feel and sound.
- Artisinal Design
- 2.2 Channels
- 70 Watts Per Channel
- Custom HDAM
- 1 HDMI Input plus ARC
- 1 Year Warranty
Output Power
-
Rated Output Power 70W + 70W (8ohm)
100W + 100W (4ohm)
Features
-
Power Amplifier Circuit HDAM-SA3
-
Power Transformer Double Shielded Toroidal
-
Volume Electric
-
Bass / Treble / Mid / Balance Control yes / yes / - / yes
-
Source Direct yes
-
Frequency Response 5Hz - 50kHz
-
Total Harmonic Distortion 0.02% (20Hz - 20kHz, 8Ω)
-
Dumping Factor 100
-
Input Sensitivity: Phono input 2 mV / 47 kohm
-
Input Sensitivity: CD/Line/Recorder 220 mV / 20 kohm
-
Input Sensitivity: Power Amplifier input 1.6 V / 15 kohm
-
SN Ratio PHONO (MM): 87dBCD: 106dB
Terminal
-
Phono Input yes (MM)
Marantz Musical Phono EQ
-
Ext. Pre Input (Power Amp Direct) yes
-
Preout no
-
Analog Input (include Phono) / REC Out (RCA) 4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER)
-
Optical input 1
-
Coaxial input 1
-
HDMI 1 / 0 (ARC) PCM only
-
USB A 1 (Rear), Mass Storage Class5V/1A
-
Speaker Terminal SPKT-1+
-
Remote Control Bus Terminal yes (RC-5 In / Out)
-
Subwoofer Pre-out Low Pass Filter Selectable
40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz
Control
-
App HEOS App
-

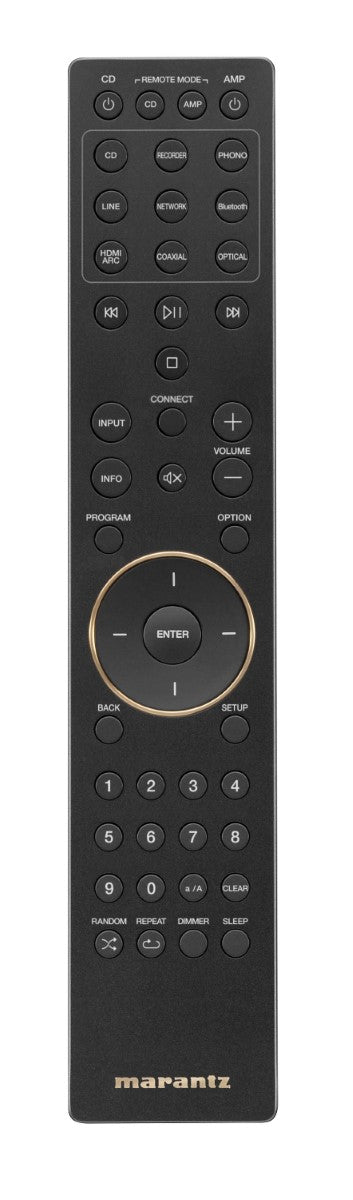

Remote Controller System Remote
Features (Amp and CD Player Control)
Others
-
Weight in lbs 36 lbs 13 Oz
-
Carton Weight (incl. product) in lbs 43 lbs 3 Oz
-
Power Consumption 220W, 0.3W (Standby)
-
AC Inlet yes
-
Quick Start Guide Included
-
Packaging Dimensions (W x H x D in inches) 21" x 10" x 20.6"
-
Product Dimensions (W x H x D in inches) 17.4" x 5.1" x 17"
Cosmetic
-

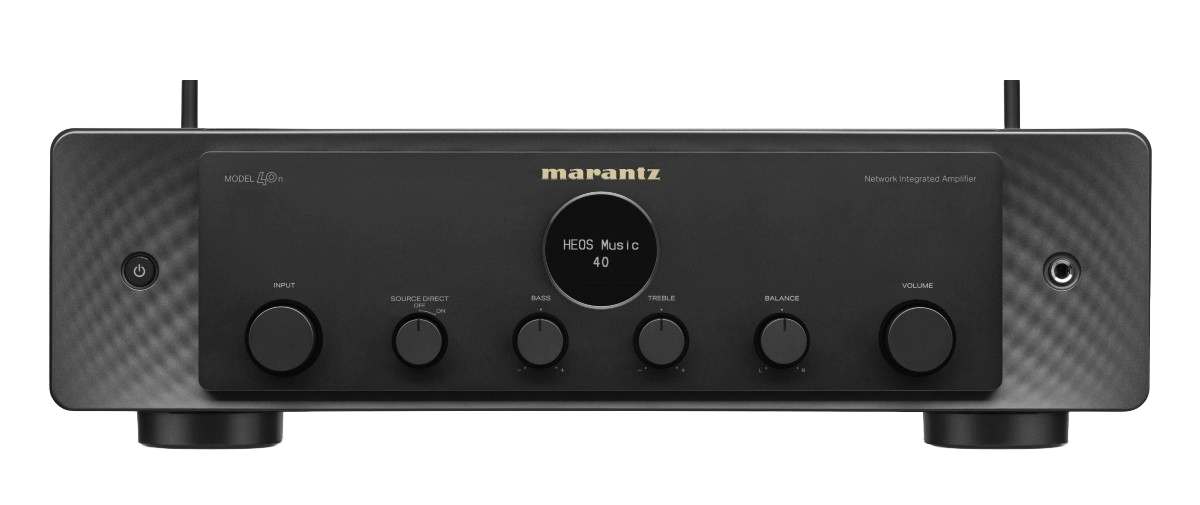

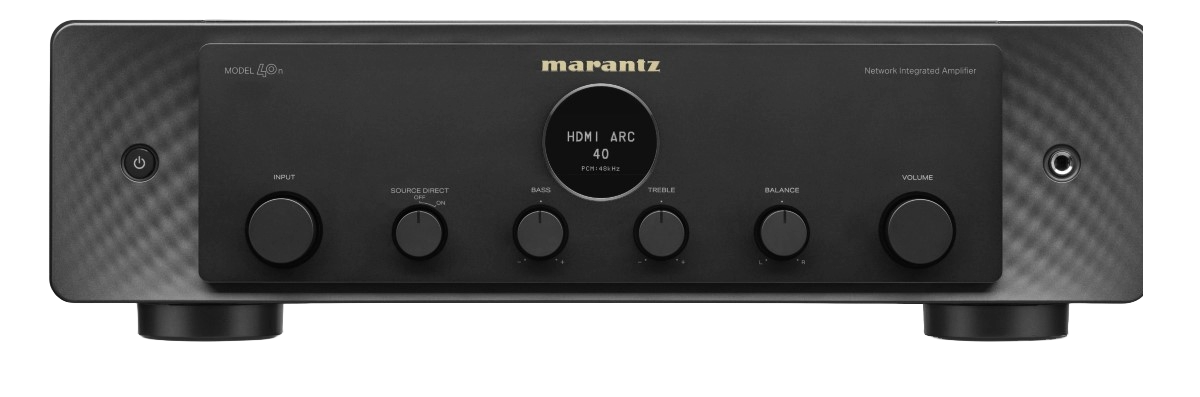

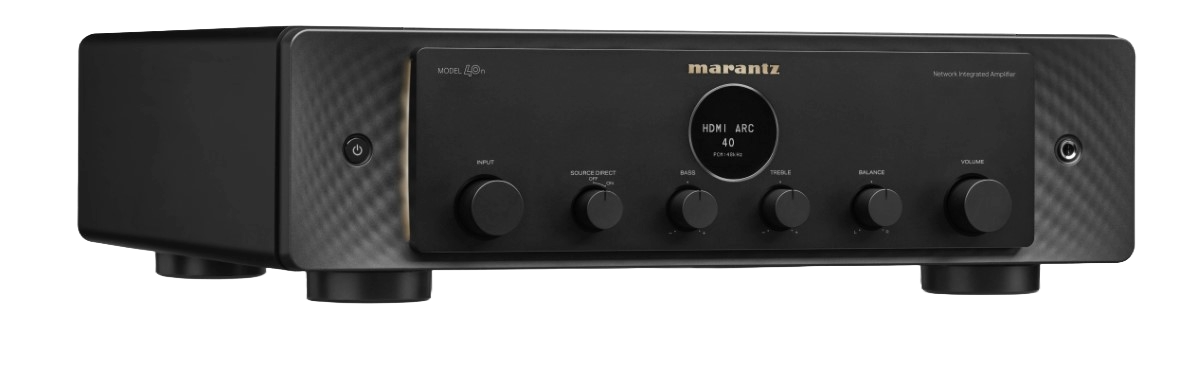

Panel Color SG / BK
-
Front Center Panel Aluminum
-
Top Cover Steel
-
Edge Lighting yes (Dimmer)
-
Volume Knob Aluminum
-
Input Selector Aluminum
-
Bass/Treble/Balance/ REC Out Sel knobs Aluminum
-
Power button Aluminum
-
Chassis Material SECC
-
Bottom Layer Thicker double layer
