Big Sound in a
Compact Footprint

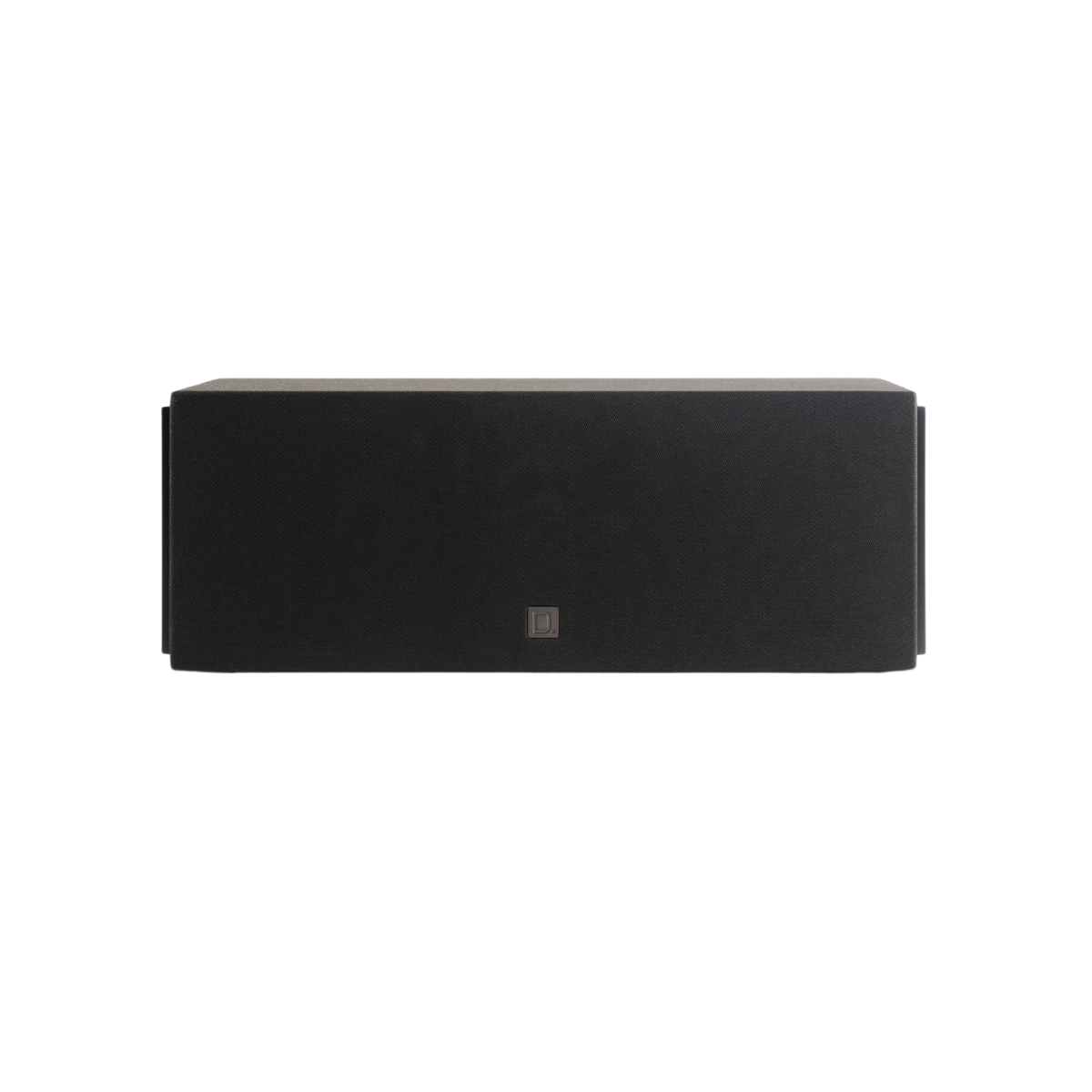

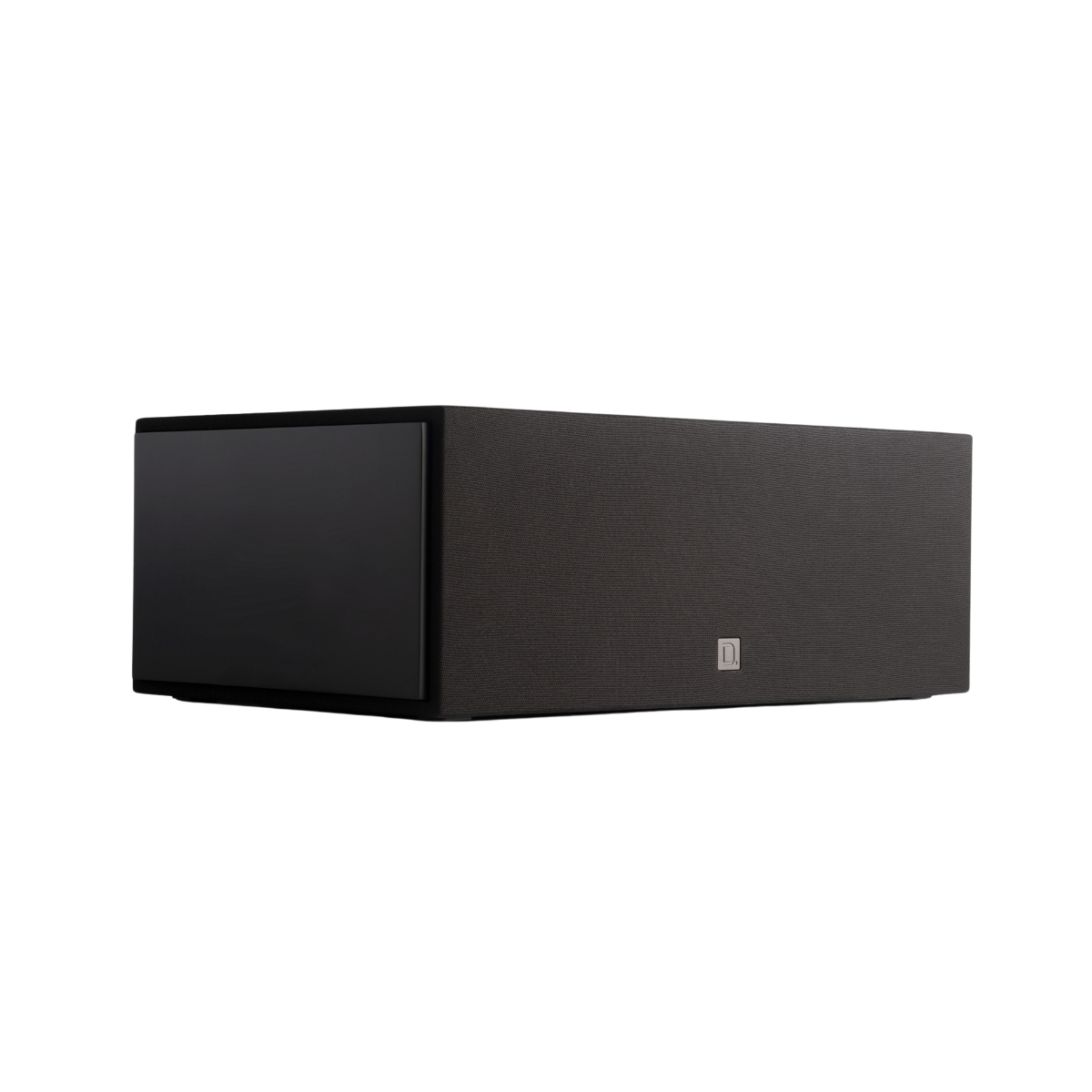

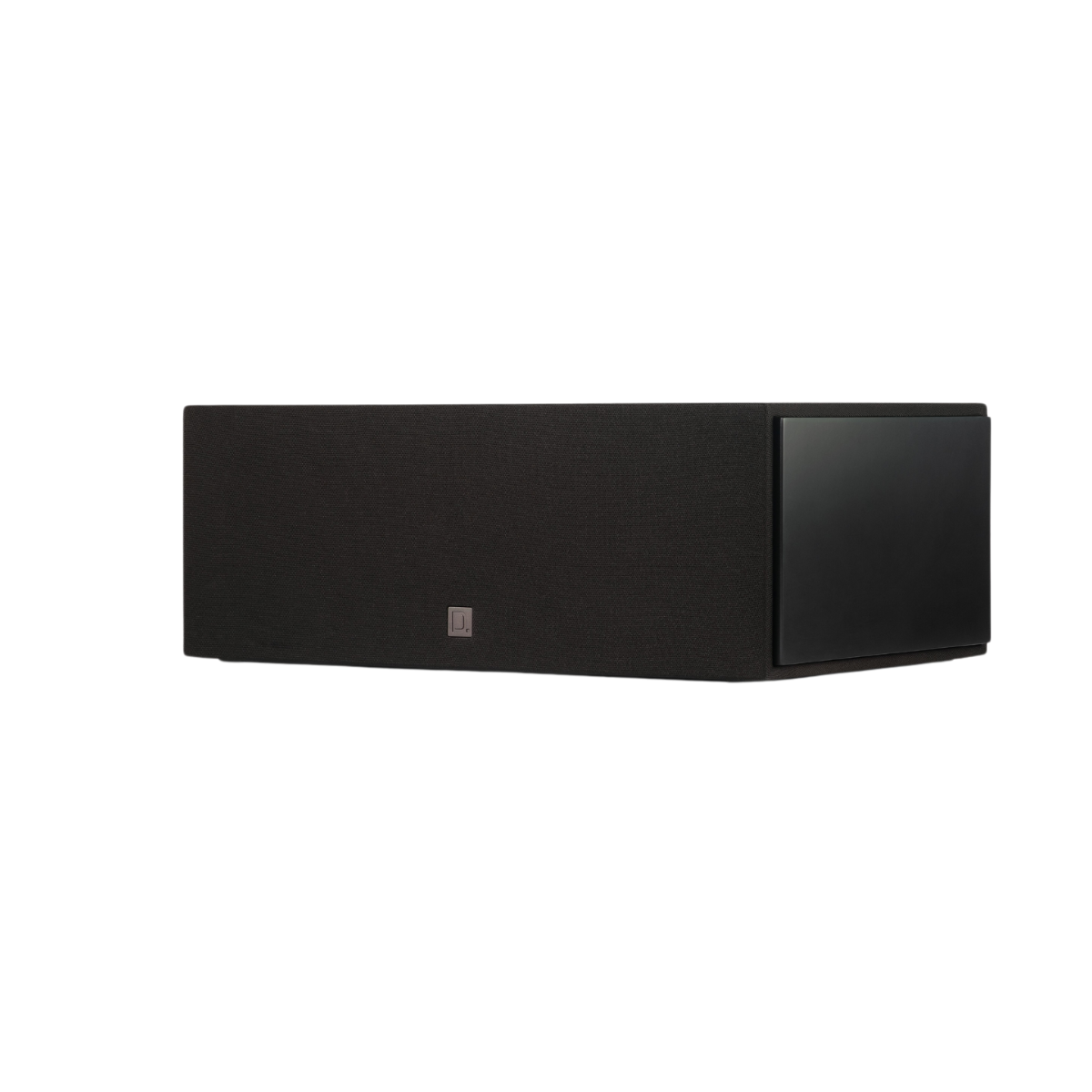

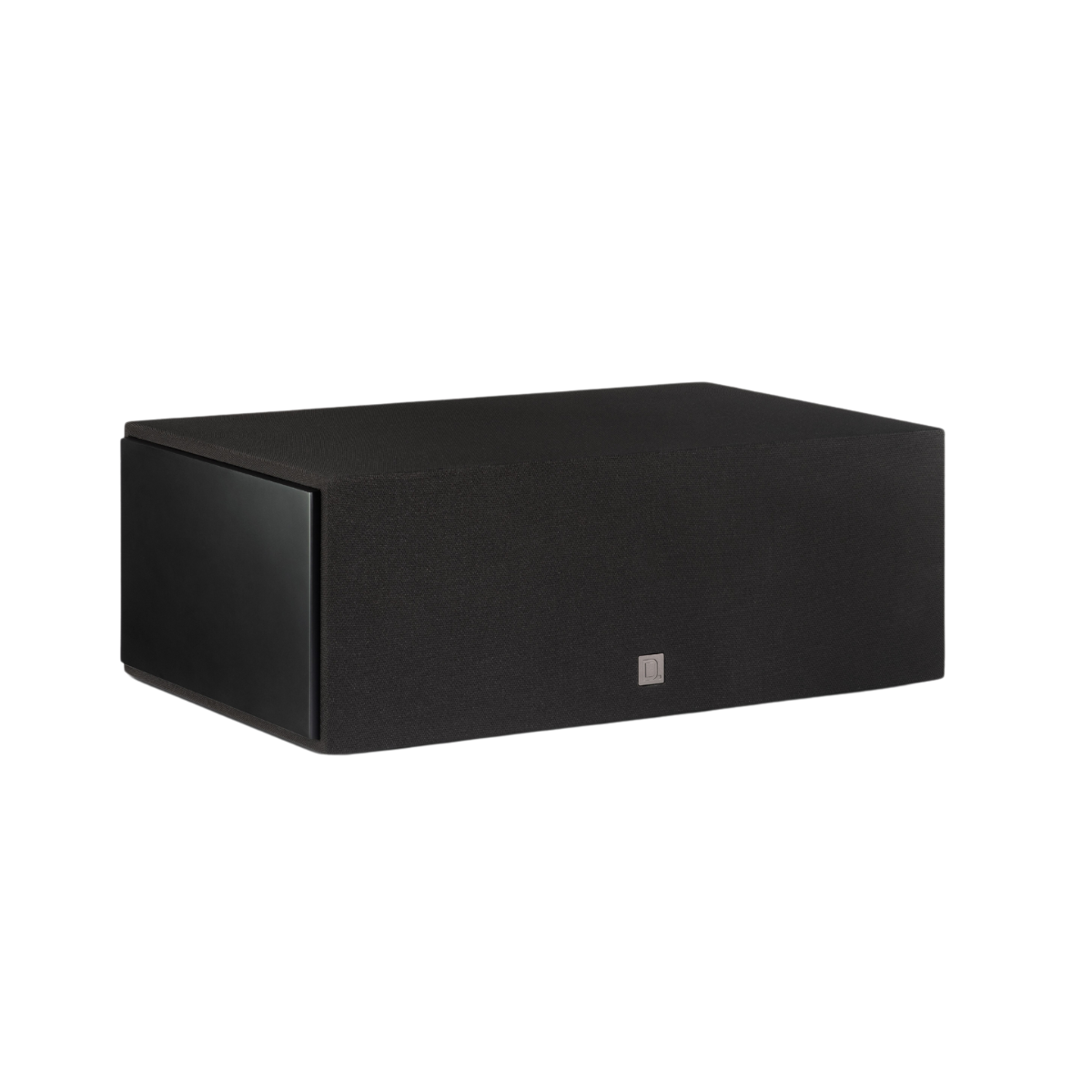

The Dymension™ DM10 center channel speaker with integrated bass radiator delivers full-range sound with big bass impact in a compact footprint.
Specifications
| Dimensions (H x W x D) |
7.3 x 19.5 x 12.2 in. (186 x 496 x 311 mm) |
| Weight |
29.1 lbs (13.2 kg) |
| Color |
Black |
| Grille Material |
Acoustically transparent black cloth (not removable) |
| Orientation |
Horizontal |
| Tweeter |
(1) 1 in. aluminum oxide dome |
| Midrange/Midbass |
(2) 5.25 in. woofers |
| Subwoofer System Driver Complement |
(1) 9 in. passive radiator |
| Frequency Response |
57 Hz–30 kHz (-10dB)
81 Hz–23 kHz (-3dB) |
| Nominal Impedance |
4Ω (8Ω compatible) |
| Sensitivity |
90dB (2.83V/1m) |
| Recommended Amplifier Power Rating |
50-200W |
| Warranty |
1 years |
