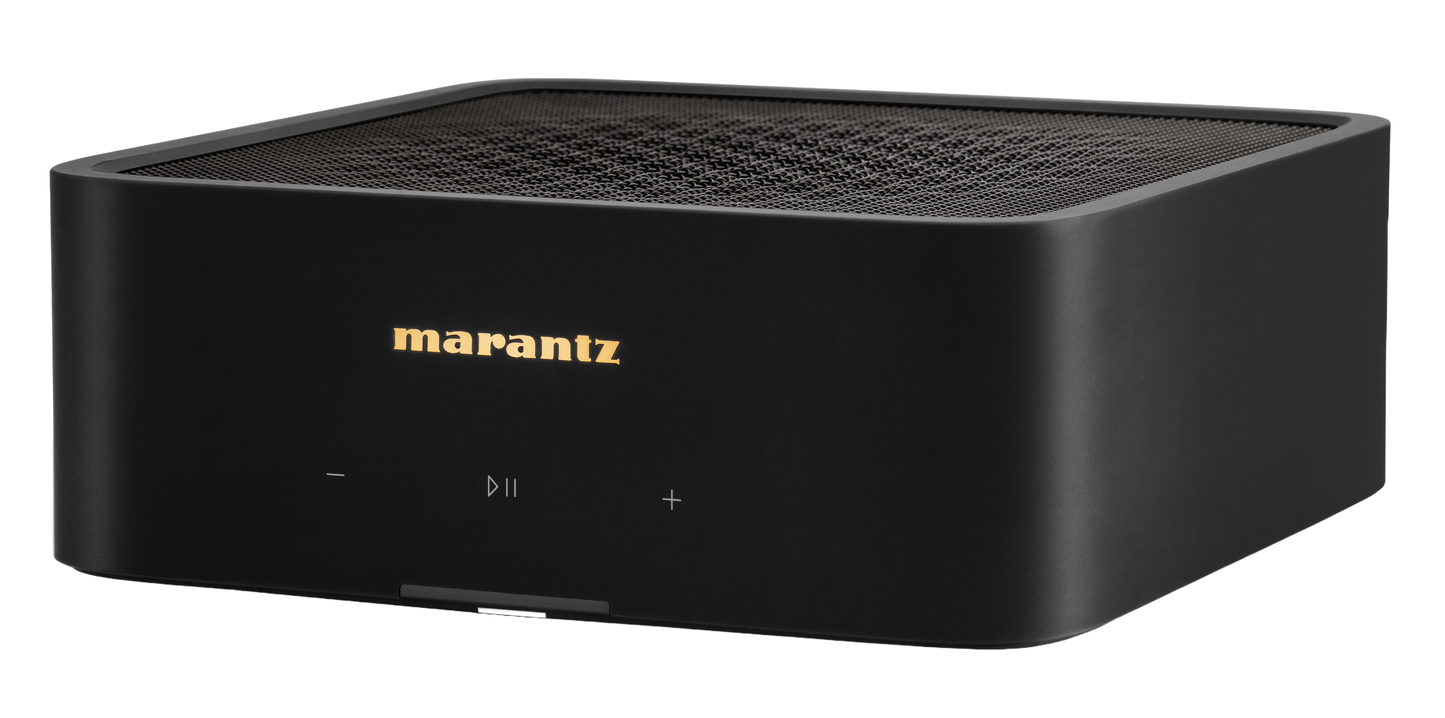

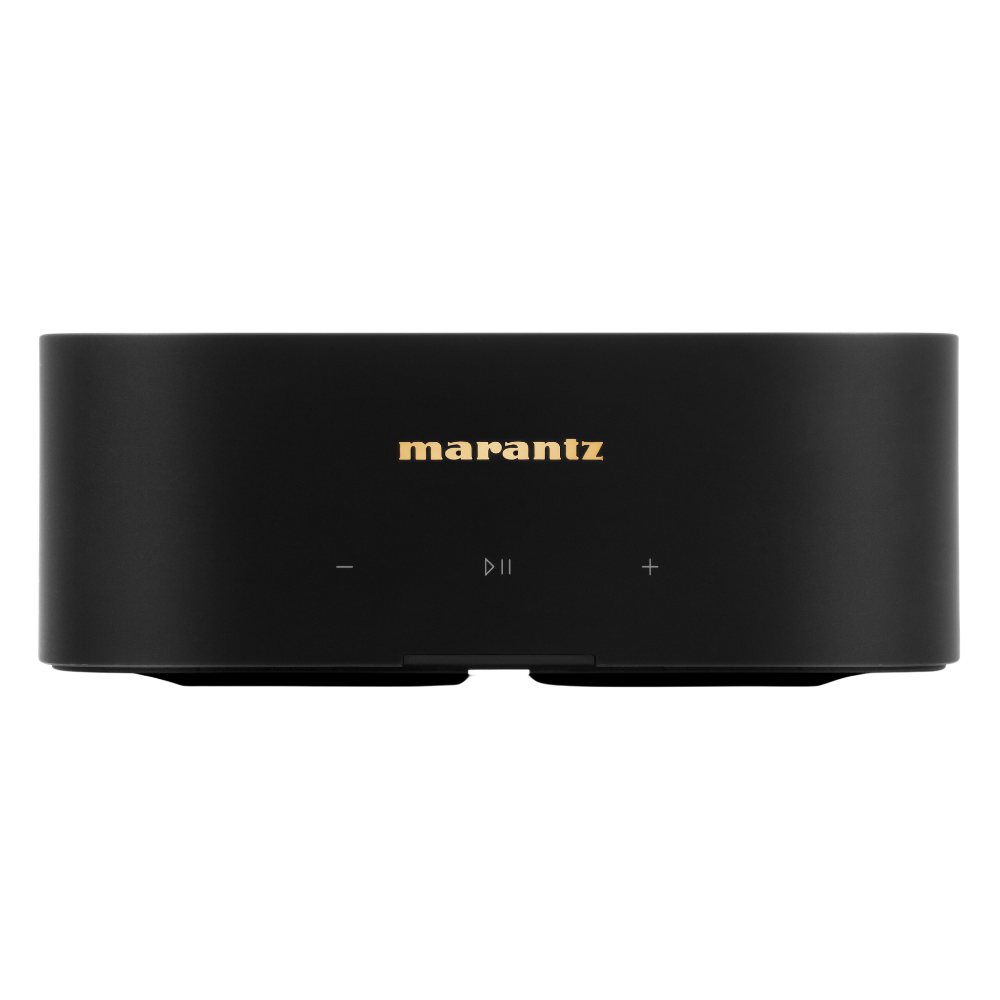

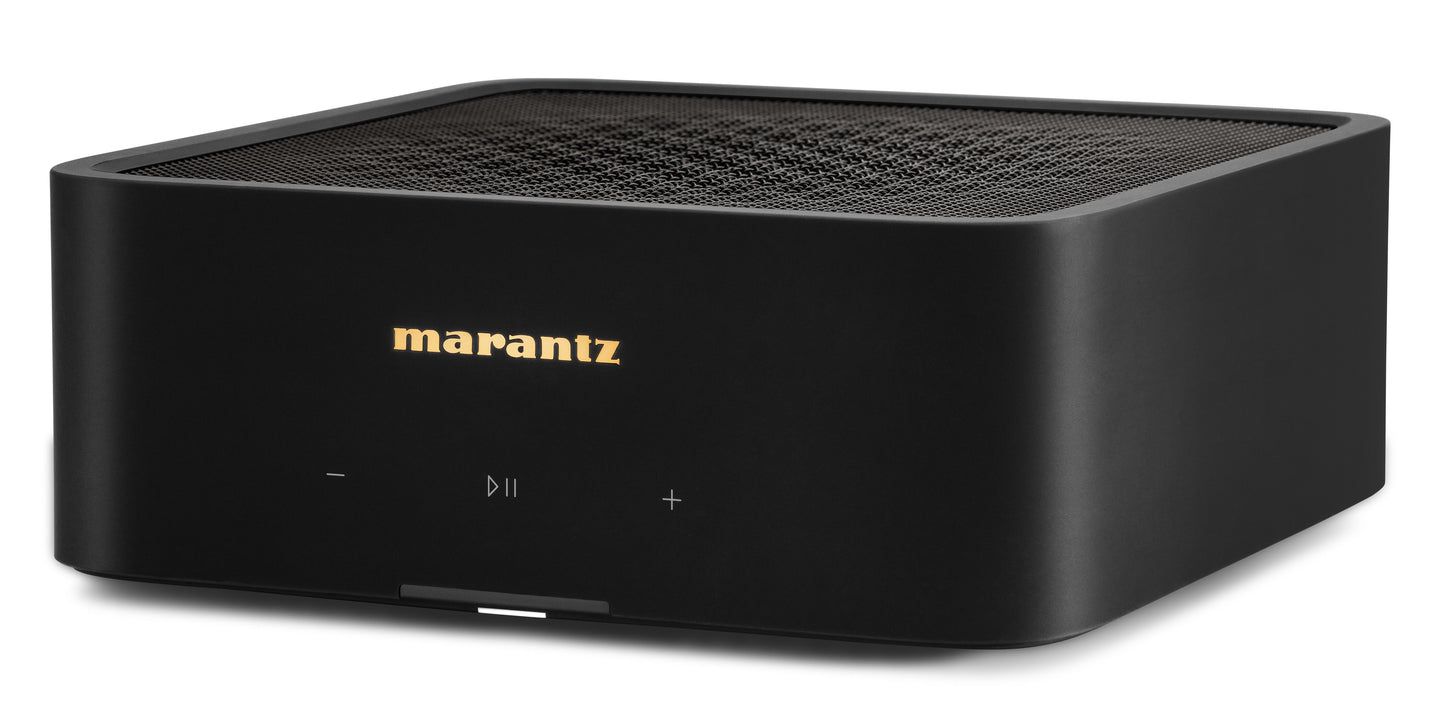

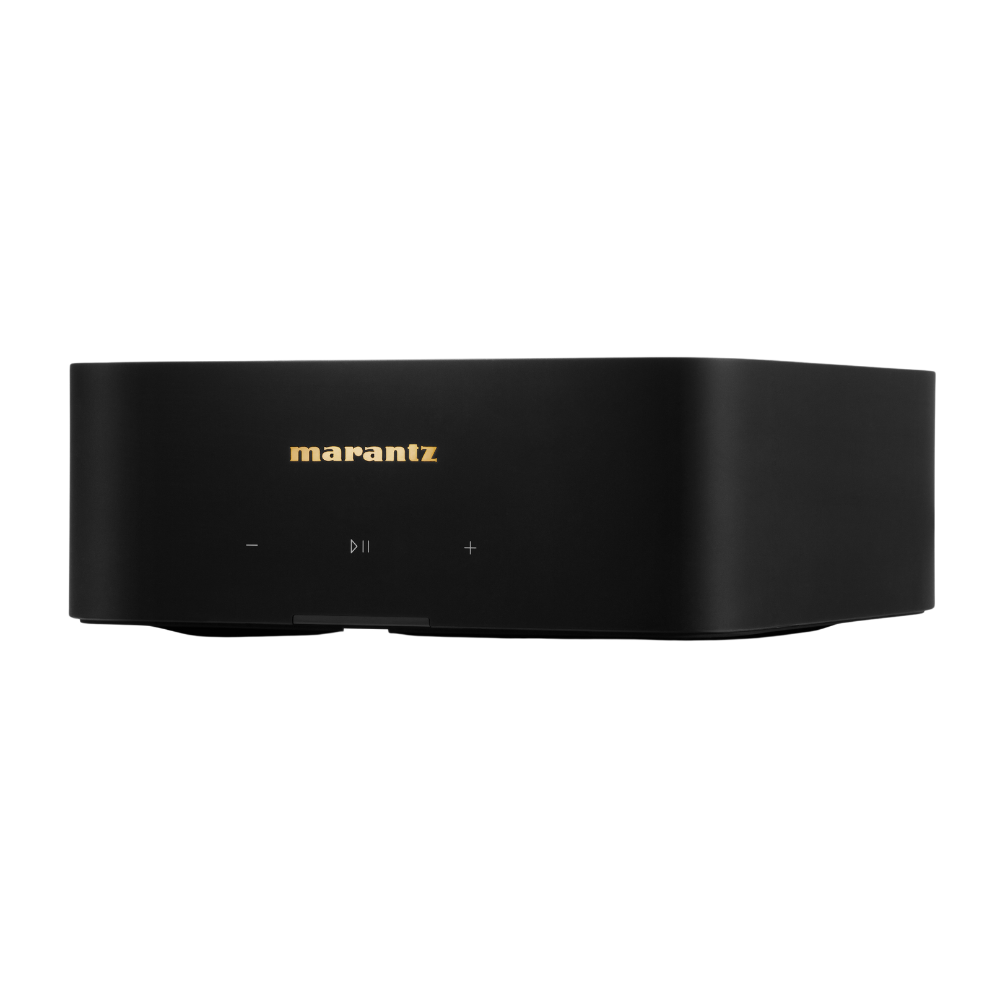

Marantz MODEL M1 2.1 Ch 100W per channel Wireless Streaming Amplifier with HEOS® Built-in

2.1 Ch. 100W per channel Wireless Streaming Amplifier with HEOS® Built-in

• 2.1 channel output allows for loudspeaker and subwoofer connection
• 100W per channel high power and crystal clarity
• Switching, digital end-to-end amplifier topology
• Enhanced performance with Marantz Musical Digital Filtering (MMDF)

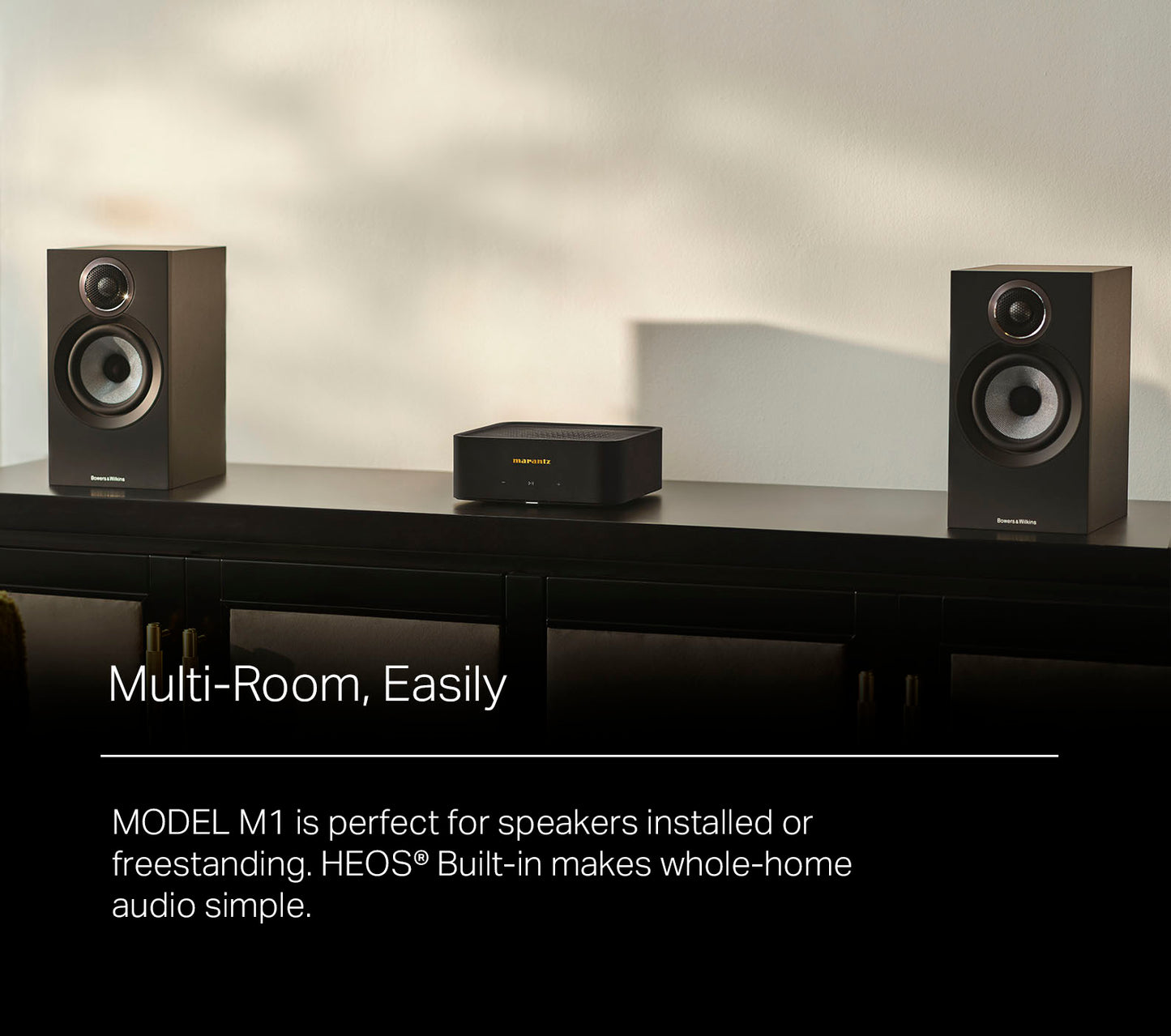

• Effortless streaming with HEOS® Built-in, WiFi, AirPlay 2, Spotify Connect

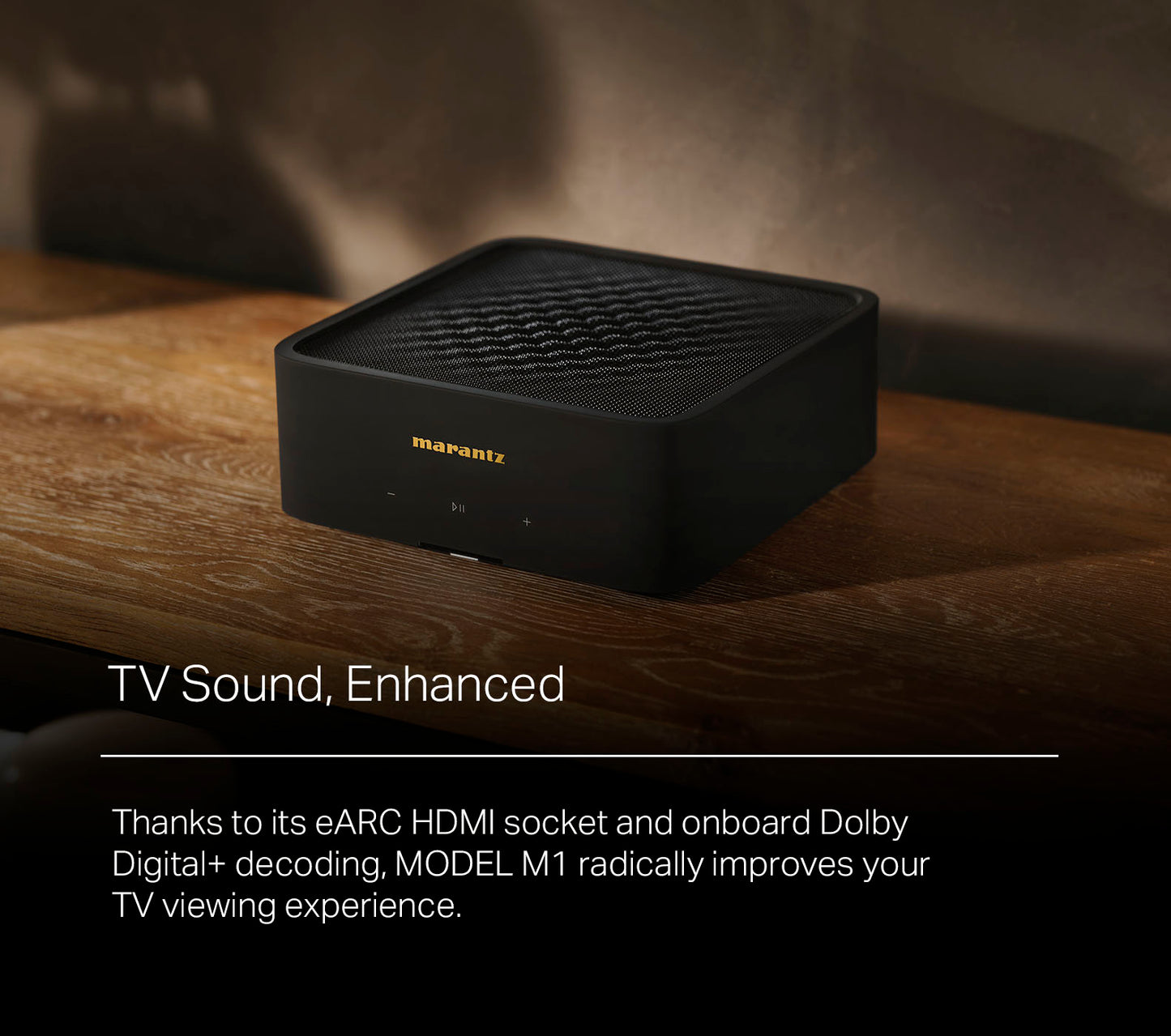

• Toslink optical audio and HDMI eARC digital audio inputs
• Digital decoding with Dolby Digital+
• Sound Master tuned, designed, and built by Shirakawa Audio Works in Japan

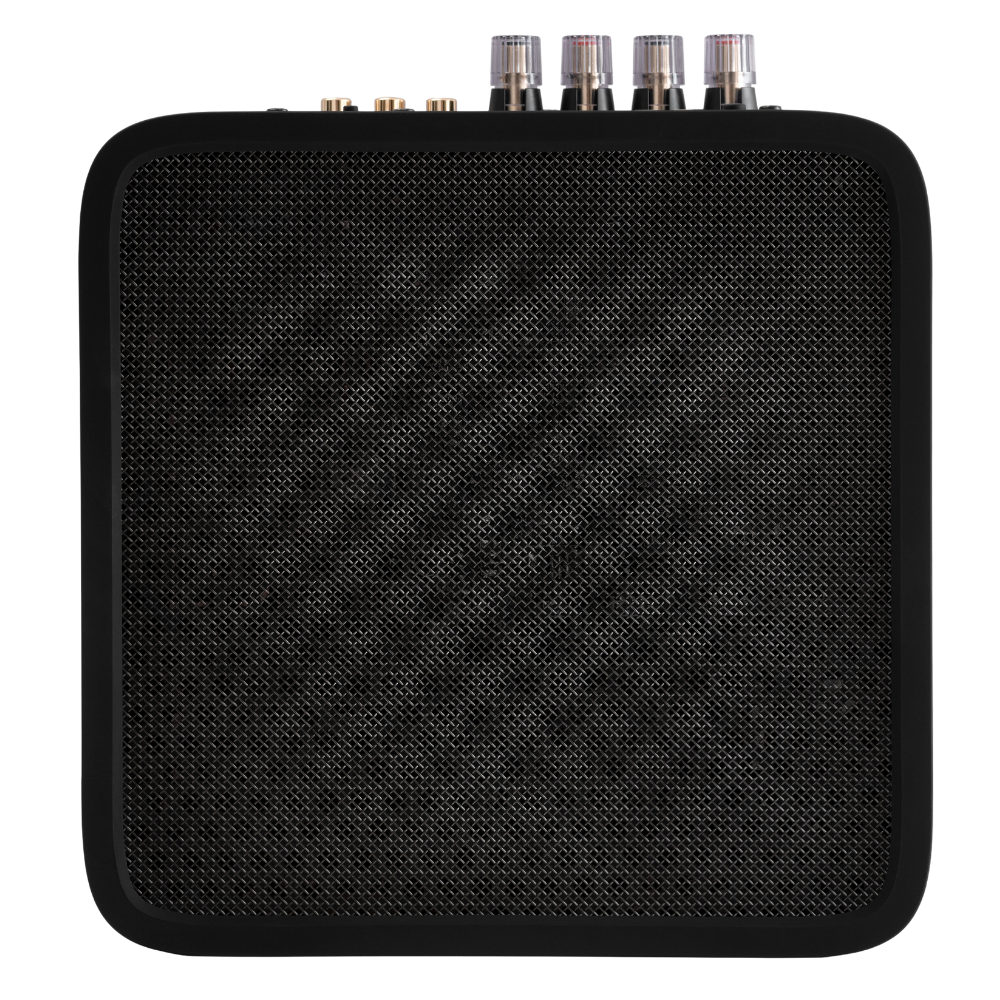

• Small footprint, rack-mountable, high-end materials, and refined Marantz industrial design
• 1 pair RCA analog audio inputs with gold-plated brass terminals



Amplifier
Power Amplifier Rated output & THD (8 ohm) - Power Amplifier Rated output &
THD (8 ohm)
Power Amplifier Rated output & THD (4ohm) - 125 W + 125 W (4Ω/ohms, 1 kHz,
T.H.D. 0.05%)
Frequency Response - 20 Hz to 20 kHz : ±1 dB
Connected loudspeaker Impedance - 4 – 16 Ω/ohms

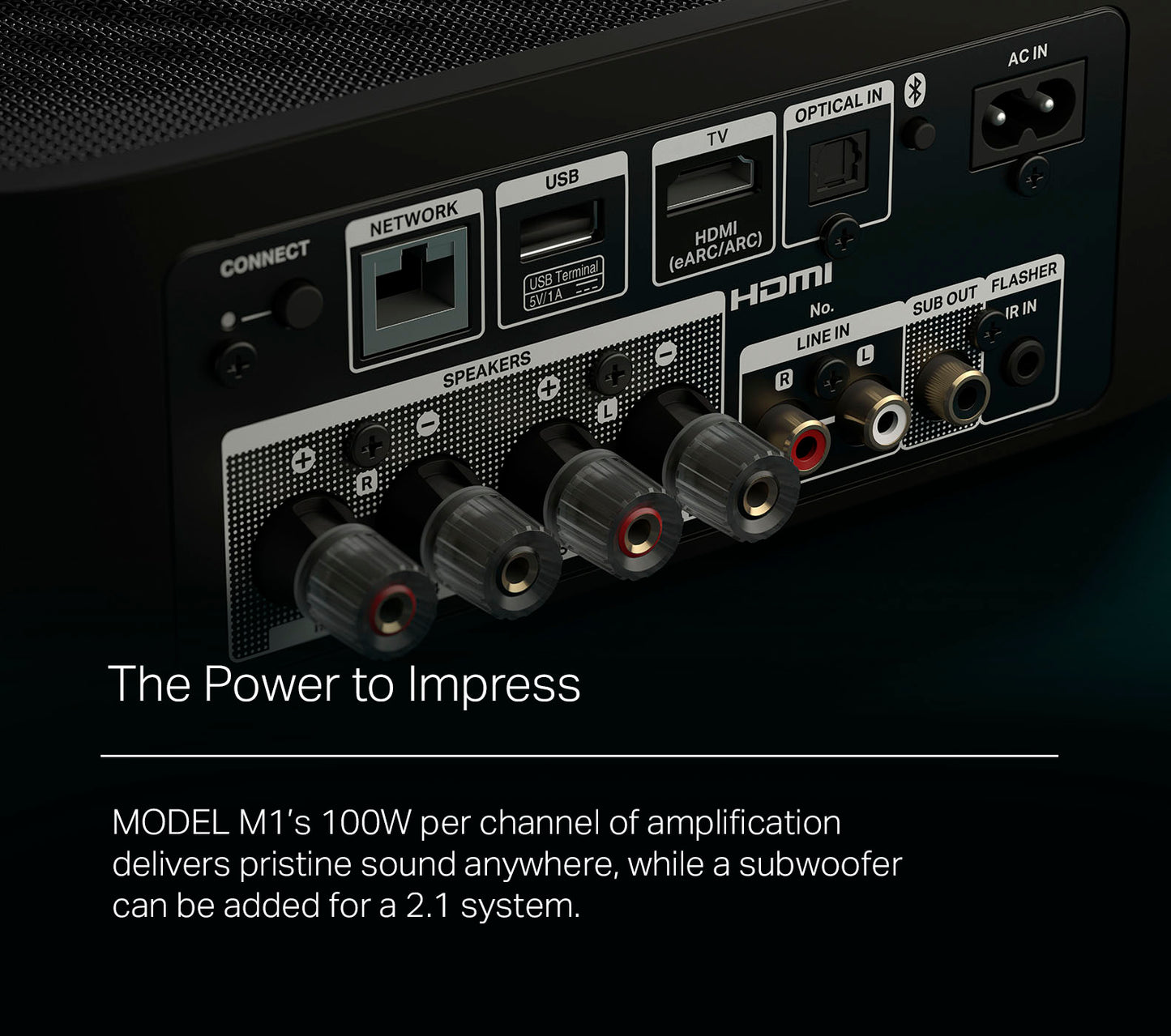

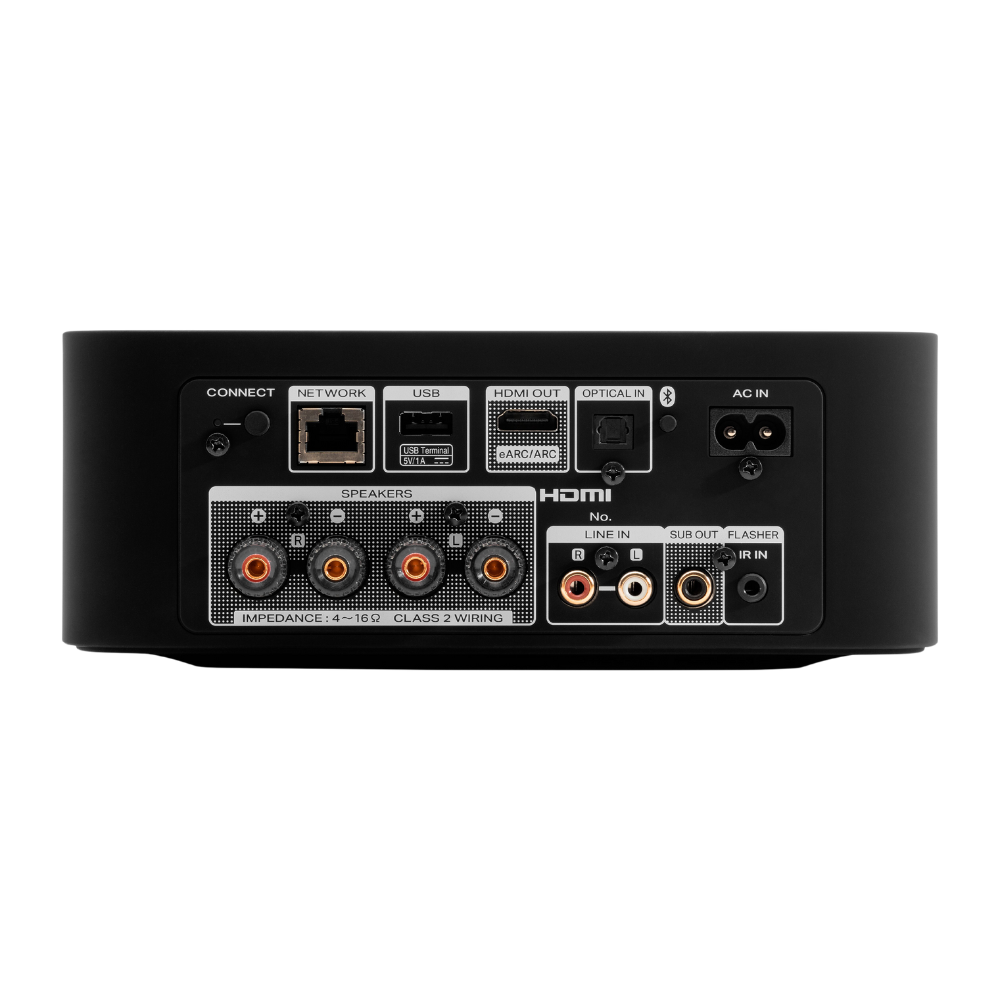

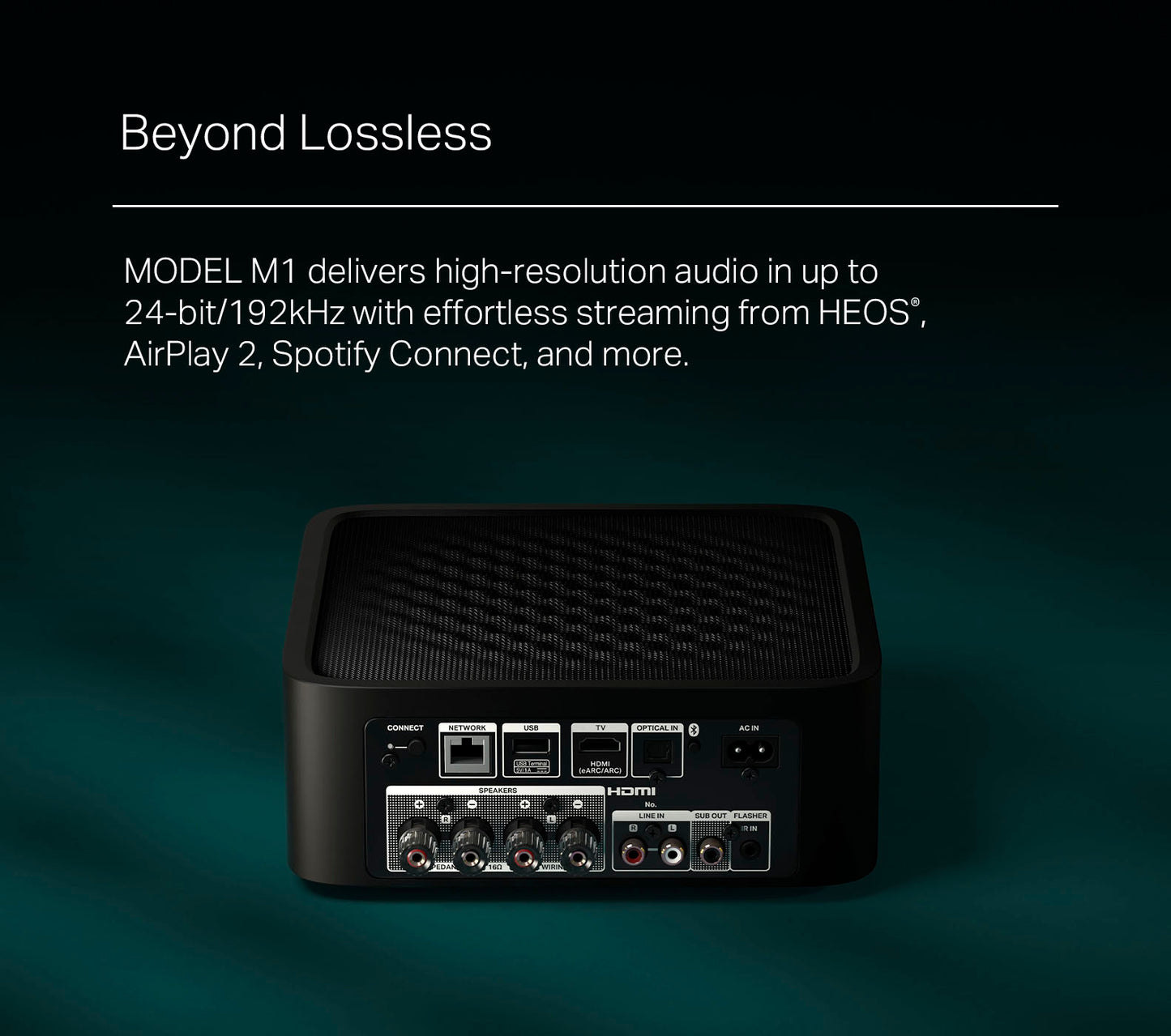

Audio Inputs / Outputs
Loudspeaker Binding Posts - 4-way binding posts
Digital Inputs - HDMI (eARC), TOSLINK (2)
Analog Inputs - RCA L/R
Subwoofer Out - RCA Mono

Audio Options
Channel Assignments - Stereo (Default), Dual Mono
Volume Limit - 80-100%
Balance - -15dB to +15dB
Adjustable High Pass / Low Pass Filters - 40-250 Hz / 40-120 Hz
EQ - Bass, Treble -5dB to +5dB
Sound Modes - Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
TV Sound Grouping - Yes

Audio Format Support
Decoding - Dolby Digital +, Dolby Digital,LPCM, DSD
Stereo PCM / Multi-channel PCM - Yes / Yes
Stereo File Formats (HEOS network share or USB)
WMA: up to and including 192 kbps, AAC & MP3: up to and including320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz

Streaming Technologies
Bluetooth Receive - BT 5.X
Bluetooth Transmit - No
AirPlay - AirPlay 2
Spotify - Spotify Connect

Music Services and Sources
Music Services Supported (HEOS, subject to change and local availability)
Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
Music stored on mobile device - Yes (iOS, Android or Kindle Fire)
NAS (Network Attached Storage) - Network share, DLNA
USB Storage Device Playback - Yes (FAT32, NTFS formatted drives)

Networking & Control
Wired Connectivity - Ethernet
Wireless Connectivity - Dual band, 802.11 a/b/g/n/ac
IR Input - 3.5mm
IR Learning - Yes
Control System Compatibility via TCP/IP - Crestron, Control4, AMX
HEOS App - iOS, Android, Kindle Fire
Trigger Output DC 12V - Yes (4)

General
Product Color - Black
User Interface - Volume up/down, Play / Pause, Quick Select 1/2/3, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
Dimensions (W x D x H) - Inches 9.41 x 3.31 x 8.54
Dimensions (W x D x H) - mm 239 x 84 x 217
Weight (lbs) - 4.84
Weight (kg) - 2.2
