[PRE-ORDER] Marantz MODEL M4 8 x 100W per channel Four-Zone Distribution Amplifier with HEOS® Built-in

New Arrival.

Click HERE to register your interest

8 x 100W per channel Four-Zone Distribution Amplifier with HEOS® Built-in

• 8 x 100W Amplification (8 ohm 20-20kHz) 0.05% THD
• 192/24 FLAC, ALAC, WAV, DSD

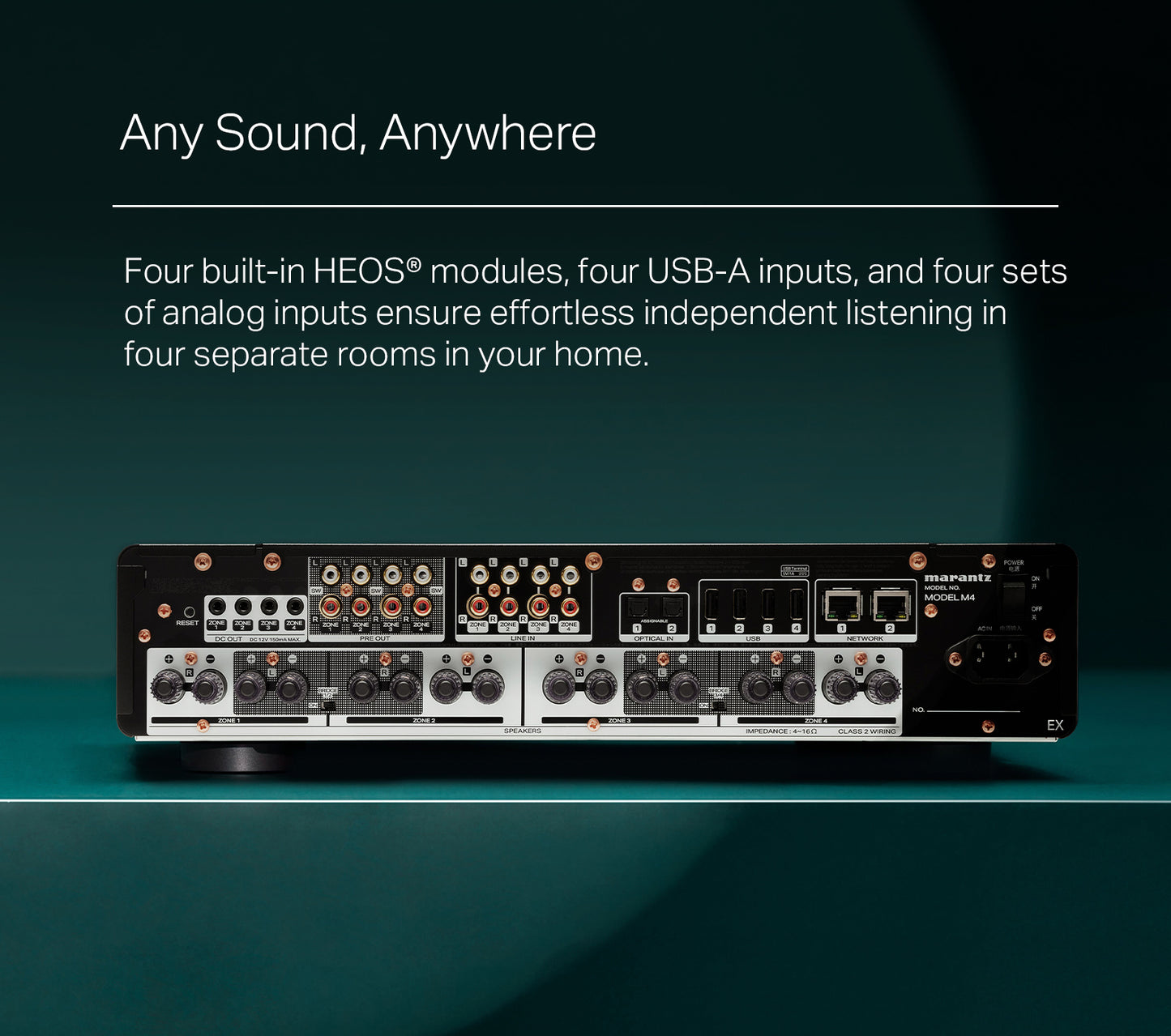

• Stereo RCA in x4, Optical x2, Ethernet x2, USB-A x4
• HEOS®, AirPlay2, Dolby Digital+
• Stereo preouts per zone or four subwoofer outputs, one per zone
• Convert preout to subwoofer out with High Pass and Low Pass Filters
• TV Sound Grouping
• Marantz Musical Digital Filtering (MMDF)
• 12V trigger out per zone and Bridge mode

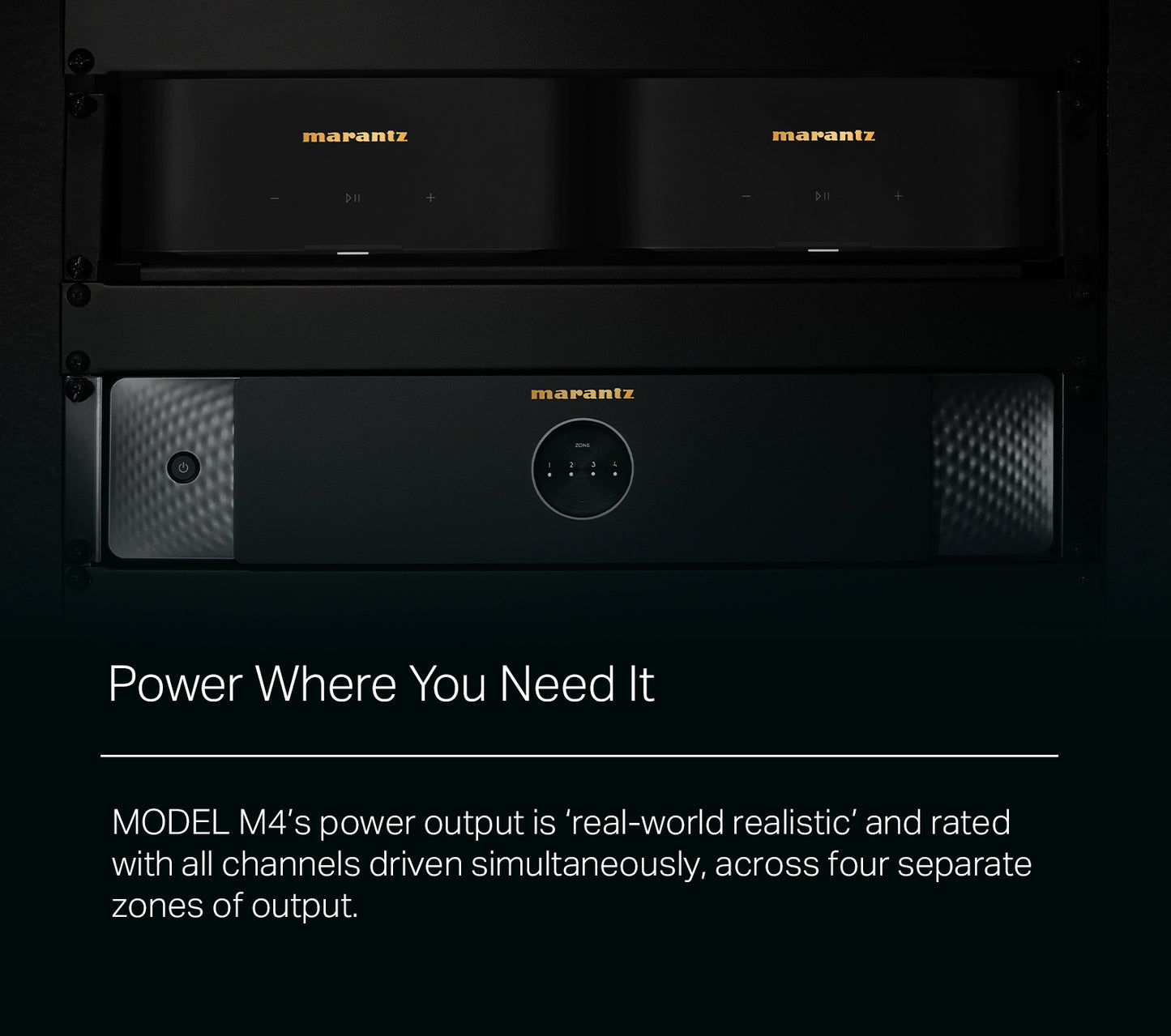

• Perfectly sized for rack mounted design and active cooling, rack kit included



Amplifier
Power Amplifier Rated output & THD (8 ohm) 8 x 100 W (8 Ω/ohms, 20 Hz to 20
kHz, T.H.D. 0.05 %)
Power Amplifier Rated output & THD (4ohm) 8 x 125 W (4Ω/ohms, 1 kHz,
T.H.D. 0.1%)
Frequency Response 20 Hz to 20 kHz : ±1 dB
Connected loudspeaker Impedance 4 – 16 Ω/ohms

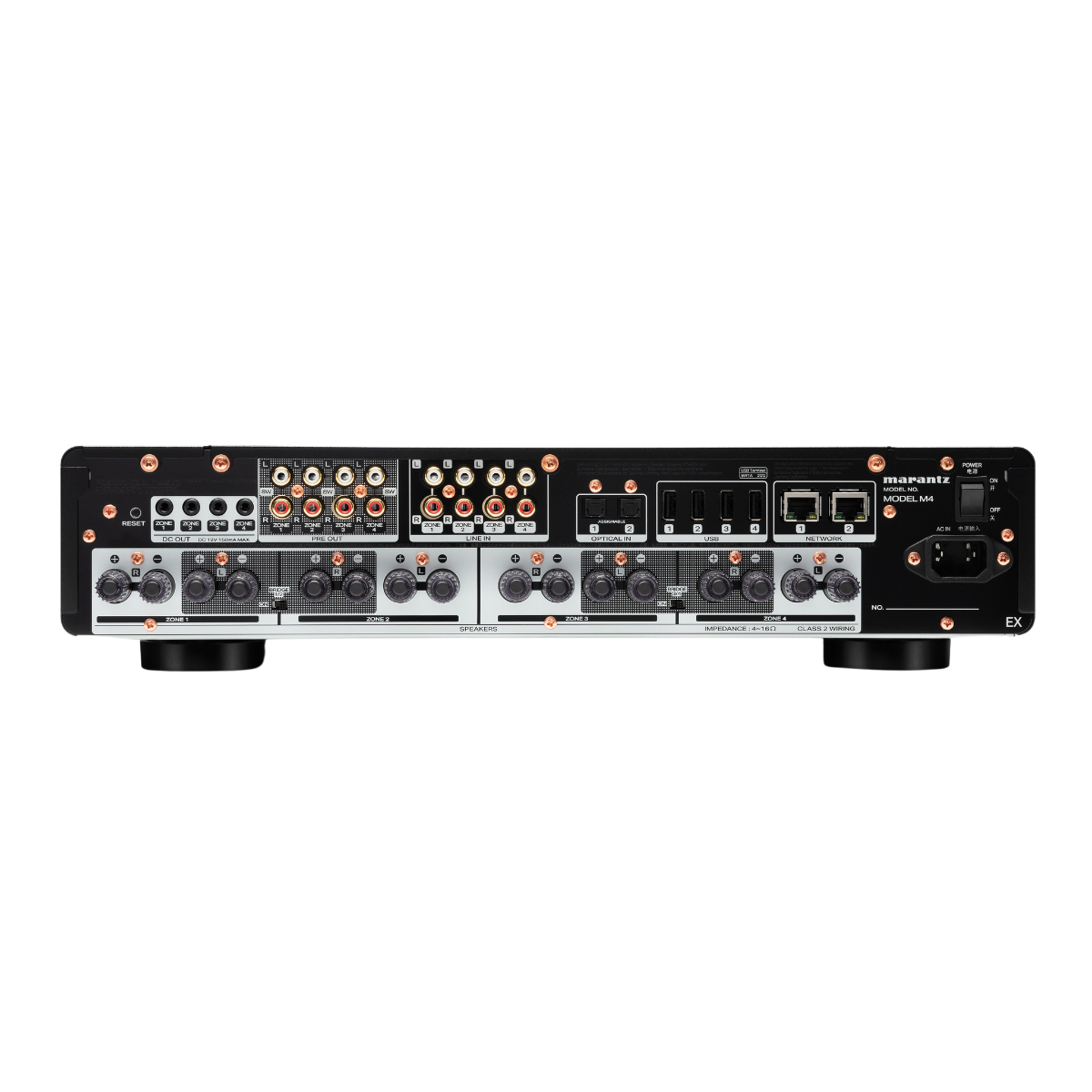

Audio Inputs / Outputs

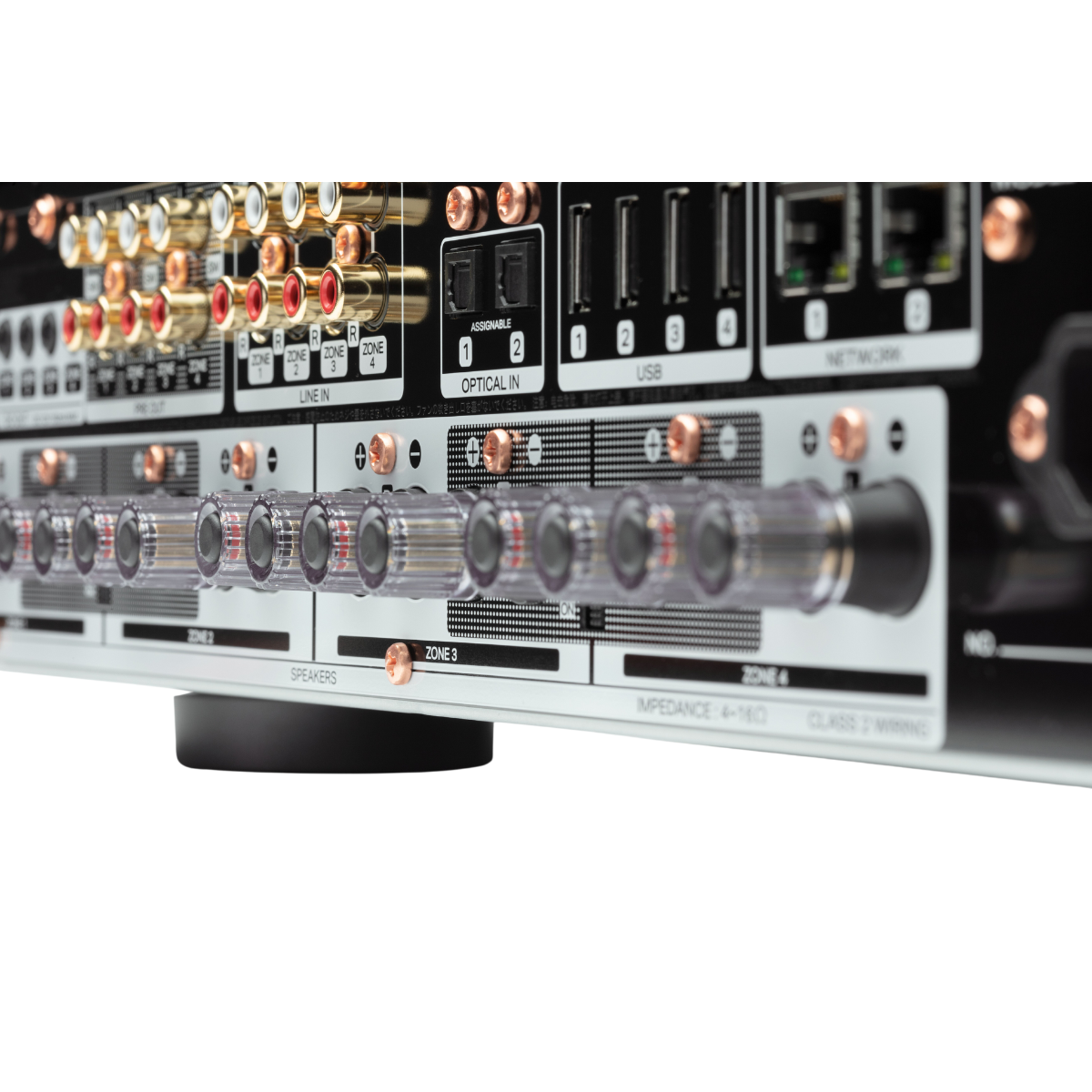

Loudspeaker Binding Posts 4-way binding posts
Digital Inputs TOSLINK (2)

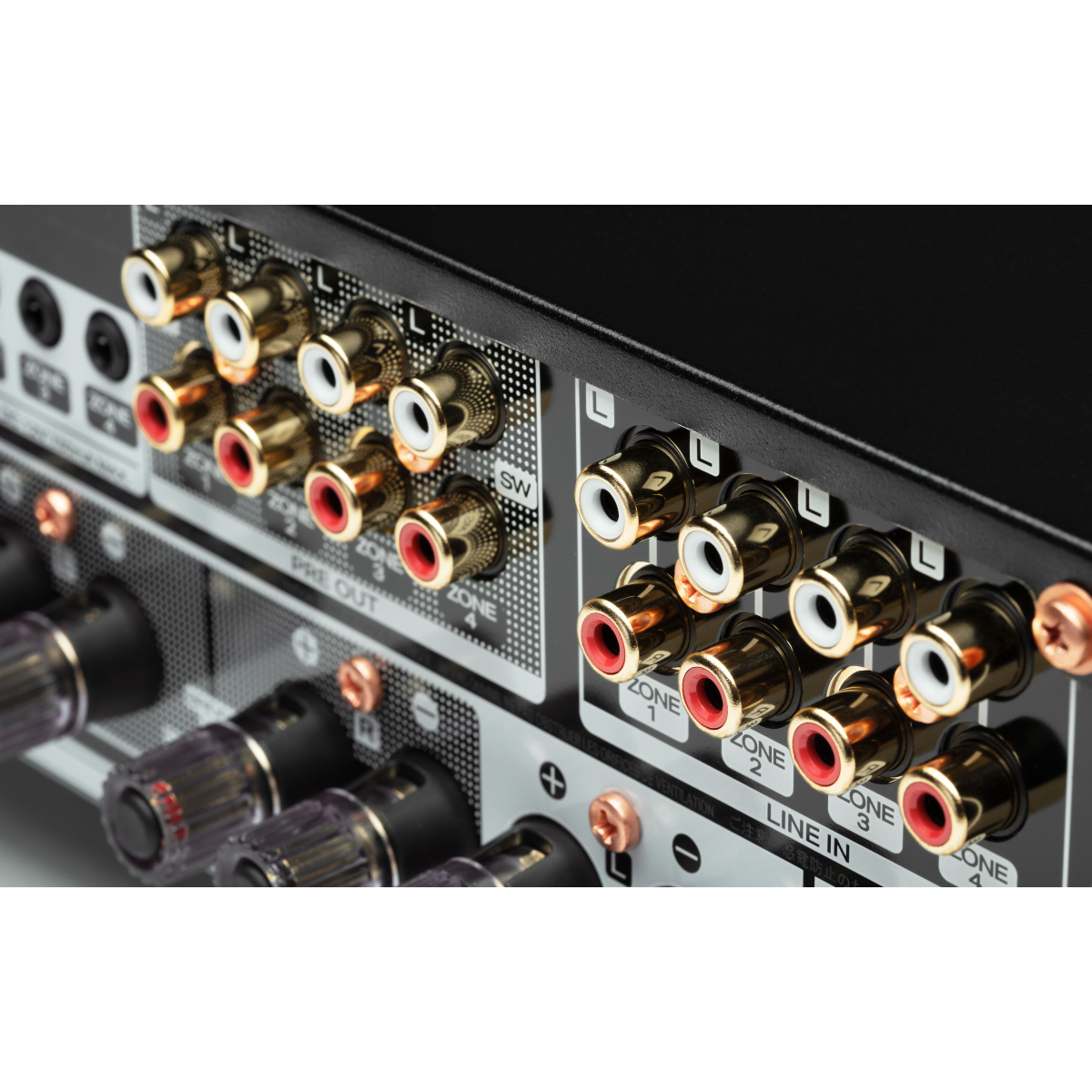

Analogue Inputs RCA L/R (4)
Preouts RCA L/R (4)
Subwoofer Out RCA Mono (4) (selectable)

Audio Options
Channel Assignments Stereo (Default), Dual Mono
Volume Limit 80-100%
Balance -15dB to +15dB
Adjustable High Pass / Low Pass Filters 40-250 Hz / 40-120 Hz
EQ Bass, Treble -5dB to +5dB
TV Sound Grouping Yes

Audio Format Support
Decoding Dolby Digital, LPCM, DSD
Stereo File Formats (HEOS® network share or USB)
WMA: up to and including 192 kbps
AAC & MP3: up to and including 320 kbps
WAV, ALAC, FLAC: up to andincluding 24-bit/192kHz

Streaming Technologies
Bluetooth Receive N/A
Bluetooth Transmit N/A
AirPlay AirPlay 2
Spotify Spotify Connect

Music Services and Sources
Music Services Supported (HEOS®, subject to change and local availability)
Spotify, TuneIn, Amazon Music, Tidal, Tidal HiRes, Deezer, Deezer HiFi,
Mood:Mix, Sony Hi-Res, SoundCloud
Music stored on mobile device Yes (iOS, Android or Kindle Fire)
NAS (Network Attached Storage) Network share, DLNA
USB Storage Device Playback Yes (4)
(FAT32, NTFS formatted drives)

Networking & Control
Wired Connectivity Ethernet (2)
Wireless Connectivity N/A
Trigger out DC 12V Yes (4)
Control System Compatibility via TCP/IP Crestron, Control4, AMX
HEOS® App iOS, Android

General
Product Colour Black
User Interface Reset button, Front power button,
Rear power switch
Dimensions (W x D x H) mm 442 x 415 x 106
Weight (kg) 8
SAP Code MODELM4/EX1B
EAN 0747192142636
