Featuring our unique current feedback discrete power amp output stages that are identical for all channels and equipped with multiple high current discrete power.
Classic Design
7 Channels
150 Watts per Channel
Class A/B Amplifier
1 Year Warranty
Features
Number of Channels7
Current Feedback TopologyYes
Discrete AmplificationYes
Power TransformerToroidal
ChassisCopper Plated

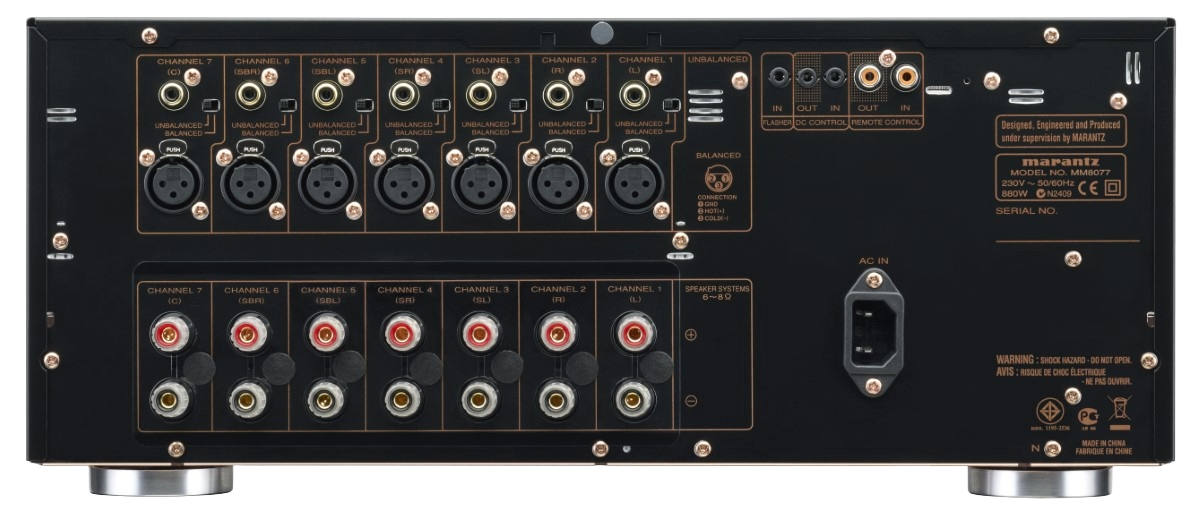

In Outputs
Main Amplifier InBalanced & Unbalanced: 7ch (Exclusive use by a selector switch.)
DC Triggers1 In / 1 Out
D-Bus Remote (RC-5) In/Out1 In /1 Out
Flasher In/IR Receiver In/Emitter out1/0/0
Specifications
Power Output150W (20Hz-20kHz, 0.08%)
S/N Ratio105dB
Freq. Response (Analog In)8Hz-100kHz (+/- 3dB)
General
ColorBlack
Front PanelAluminum/Glass-reinforced resin
Power RequirementAC 120 V, 60 Hz
Power Consumption800W (Standby: 0.4W)
Dimensions W x H x D (Inchs)17.32" x 7.29" x 15.1"
