Marantz
Regular price
$2,699.00 SGD
Regular price
$2,999.00 SGD
Sale price
$2,699.00 SGD
Unit price
/
per
Sale
Sold out
Tax included.
Color
Black
Variant sold out or unavailable

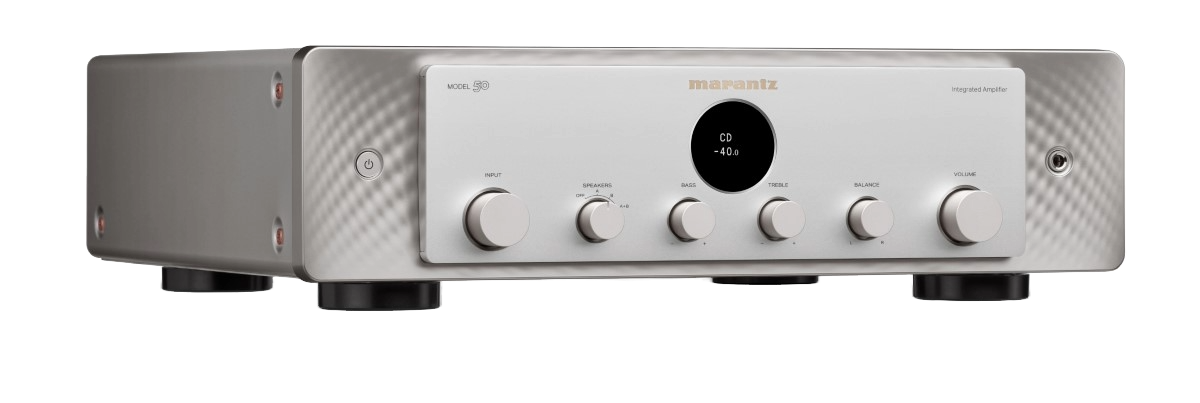

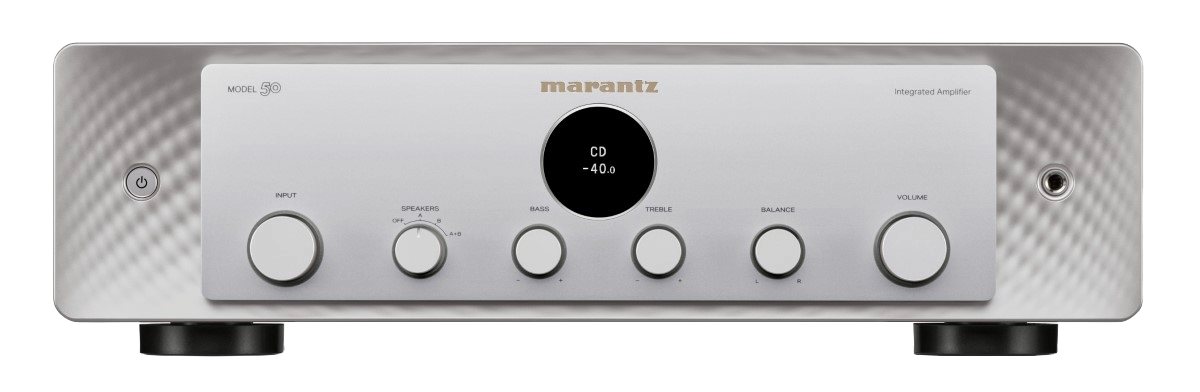

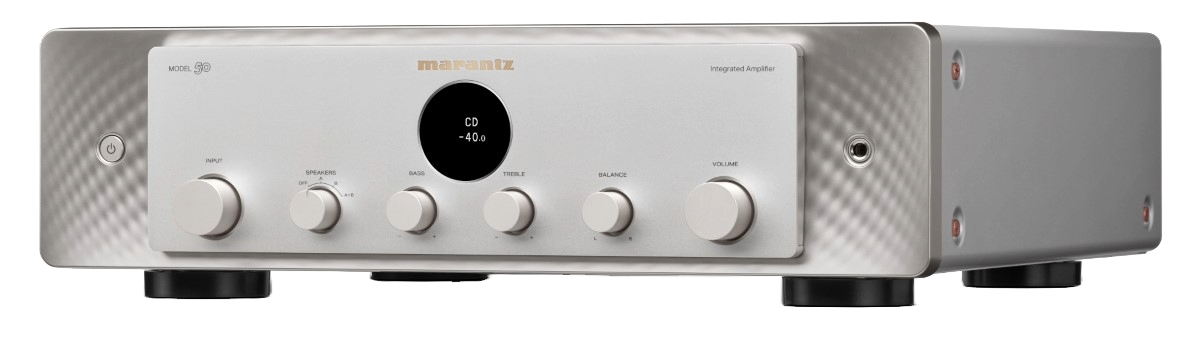

Silver-Gold
Variant sold out or unavailable
Couldn't load pickup availability
Refresh
Your browser does not support our video.

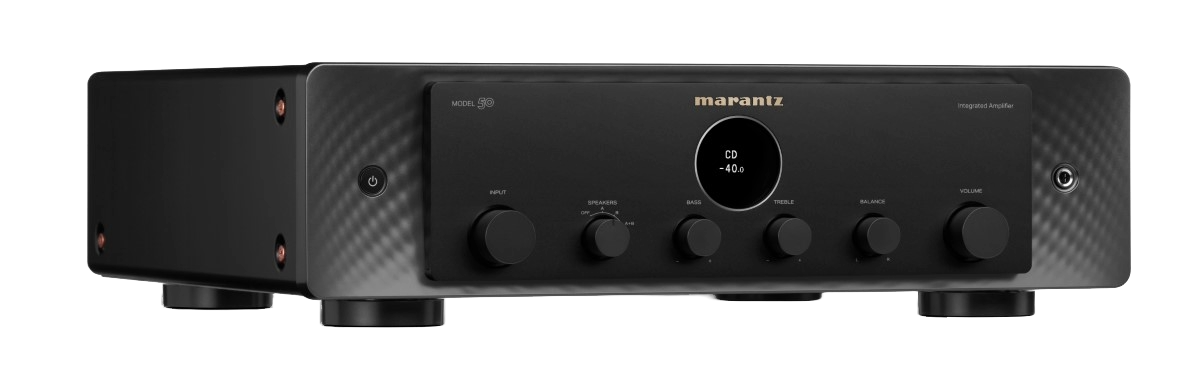

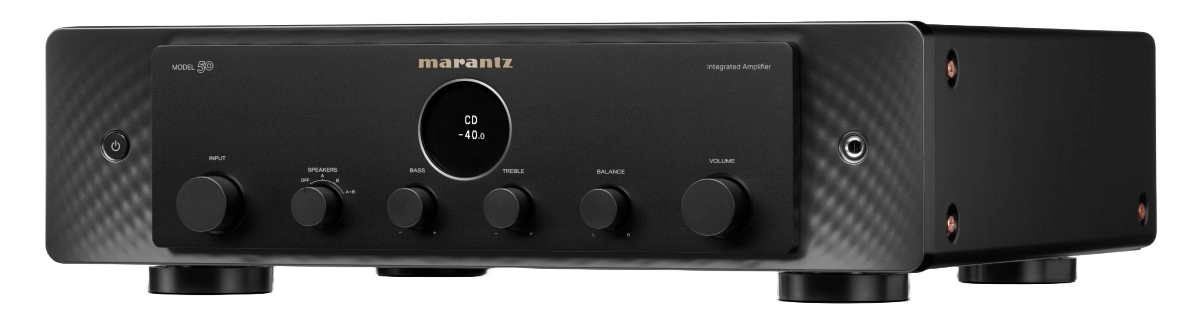

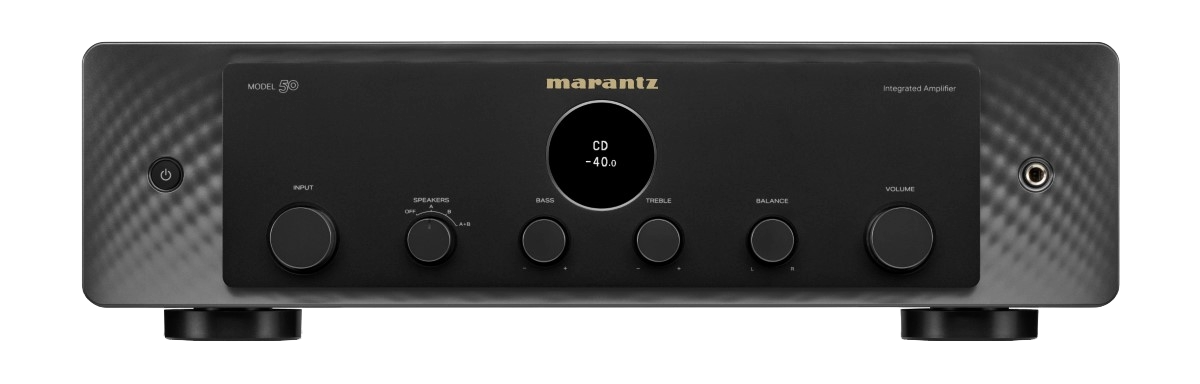

MODEL 50 is the ideal integrated amplifier. With 70 watts per channel of unique Marantz current- feedback power and HDAM SA-3 circuitry, this amplifier drives loudspeakers with total control.
Artisinal Design
2.2 Channels
70 Watts Per Channel
Custom HDAM
1 Year Warranty
Features
Channels 2
Current Feedback Topology Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / Yes / -
Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
HDAM version SA3, SA2
Power Transformer: Toroidal / El Yes / -
High Grade Audio Components Yes
Customised Components Yes
Symmetric PCB Layout Yes
Aluminium extrusion heat sink Yes
Balance / Bass / Treble / Loudness Yes / Yes / Yes / -
Others
Linear Drive Power Supply Yes
Liniear volume control Yes
Schottky diodes Yes
Input buffer amp (all inputs / CD only) - / -
Solid Heat Sinks Yes
System block shielding: Copper / metal / none none
Bottom Plate triple
Low noise OLED display Yes
Source Direct Yes
Power Amp direct Yes

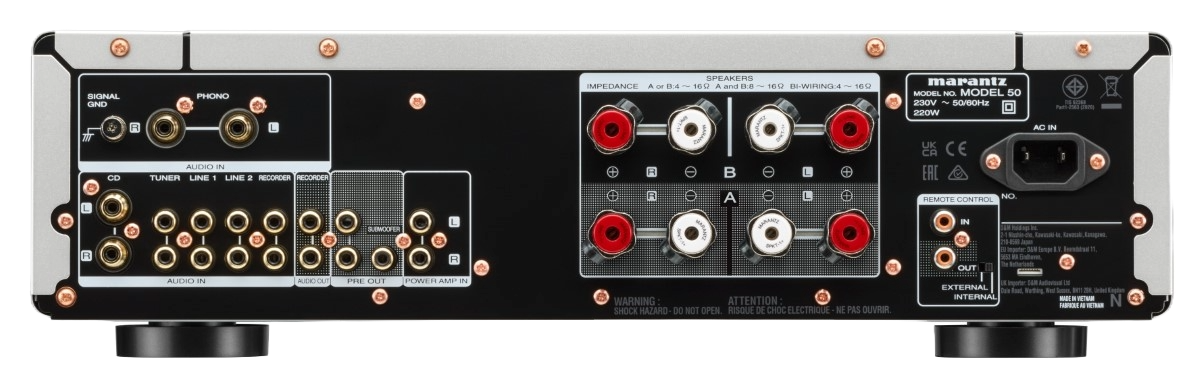

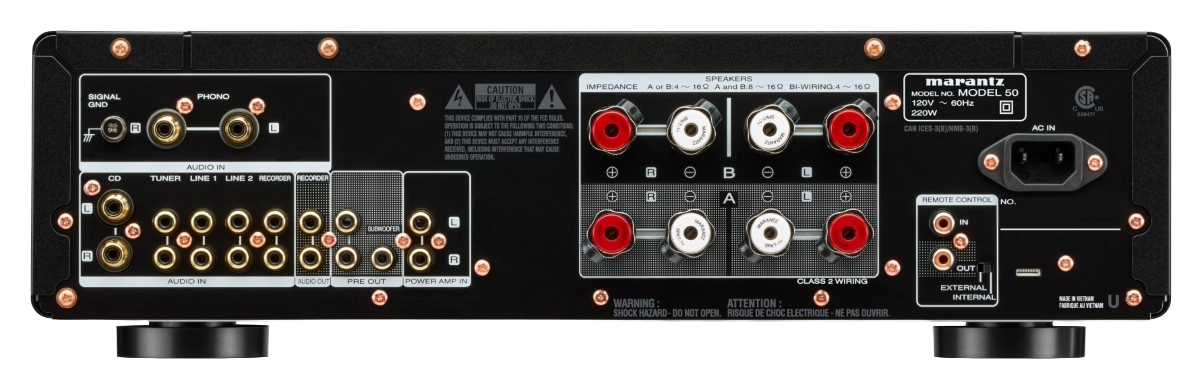

Inputs Outputs
Audio Inputs 6
Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
Phono Input: MM / MC Yes / -
Audio Outputs 1
Balanced In / Out - / -
Pre-out / Main-in Yes + subwoofer / -
Power Amp Direct IN Yes
Gold Plated Cinch Yes
Speaker A / B Yes
Speaker Terminals Marantz SPKT-1+
Number of terminals 4
D-Bus Yes
Headphone Out Yes
Specifications
Power Output (8 / 4 Ohm RMS) 70 W / 100 W
Frequency Response 5 Hz–100 kHz
Total Harmonic Distortion 0.02 %
Damping Factor 100
Input Sensitivity: MM 1.4 mV / 47 kΩ
Signal to Noise Ratio: MM/MC 87 dB / -
Input Sensitivity: High level 185 mV / 16 kΩ
Signal to Noise Ratio: High level 116 dB (2 V input)
Input Sensitivity: Power Amp Direct IN 1.5 V / 15 kΩ
Signal to Noise Ratio: Power Amp Direct IN 125 dB
Treble Control ± 10 dB at 15 kHz
Bass Control ± 10 dB at 50 Hz
General
Available Colors: Gold / Silver / Black / Silver-Gold - / - / Yes / Yes
Metal Front Panel Yes
Power Consumption in W 220
Standby Consumption in W 0.3
Auto Power off Yes
Detachable Power Cable Yes
Remote Control RC003PMND
System Remote Function Yes
Maximum Dimensions (W x D x H) in mm 442 x 431 x 130
Weight in kg 14.2
Carton Maximum Dimensions (W x D x H) in mm 527 x 517 x 255
Carton Weight (inc. product) in kg 17.5
