Marantz NR1200 AV Receiver

• Channels 2
• Current Feedback Topology No
• Full balanced circuitry architecture No
• Double Mono Power Amp construction No
• Phono EQ: Standard / Marantz Musical / Marantz Musical Premium Yes / No / No
• Digital in: USB-B / optical / coaxial / USB-A No / 1 / 1 / 1
• Sample Rate digital In 192 kHz / 24-bit
• USB-A: DSD / WAV / FLAC / AIFF / ALAC <=5.6 / 192 / 192 / No / 192
• USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 No
• USB-B PCM sample rate No
• DAC chip Latest 32-bit DAC
• Asynchronous mode rear USB No
• Bit-perfect transmission No
• Ground isolator for DAC Mode operation No
• Tuner: DAB / DAB+ / FM (RDS) Yes / Yes
• Bluetooth / aptX / NFC Yes / No / No
• Streaming audio from PC Yes
• Wi-Fi / Wired LAN Yes / Yes
• Internet radio Yes
• AirPlay 2 Yes
• Windows Play to Yes
• Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
• Amazon Prime Music* / Pandora* Yes / Yes
• HEOS Multiroom and Streaming Yes
• Voice Control - Works with Amazon Alexa Yes
• Voice Control - Google Assist / Apple Siri Yes
• Voice Control - Microphone built-in No
• DSD-Audio network streaming Yes
• Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes
• Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF Yes / Yes / Yes / Yes / No
• Gapless Playback Yes
• Remote APP: iDevice / Android Yes / Yes
• Analog Mode No
• HDAM version No
• Power Transformer: Toroidal / El No / Yes
• High Grade Audio Components No
• Customised Components No
• Symmetric PCB Layout No
• Aluminium extrusion heat sink No
• Copper Plated Chassis No
• Tri Tone Control (Bass / Mid / Treble) No
• Balance / Bass / Treble / Loudness Yes / Yes / Yes / No

• Marantz Musical Digital Filtering No
• Linear Drive Power Supply Yes
• Liniear volume control No
• BI-AMP and Multichannel option No
• Shottky diodes No
• Input buffer amp (all inputs / CD only) No
• System block shielding: Copper / metal / none No
• Double Layer Bottom Plate No
• Low Noise OELD display No
• Low noise LCD display No
• Source Direct Yes
• Power Amp direct No
• 5mm aluminium top plate No

• Audio Inputs 5
• Digital in: USB-B / optical / coaxial / USB-A No / 1 / 1 / 1
• Phono Input: MM / MC Yes / No
• Audio Outputs No
• Balanced In / Out No
• Pre-out / Main-in Pre-out(L/R/subwoofer) Zone2-out(L/R)
• Power Amp Direct IN No
• HDMI: inputs / outputs 5/1
• Gold Plated Cinch No
• Speaker A / B No
• Speaker Terminals No
• Number of terminals 4
• D-Bus Yes
• Floating Control Bus (3.5 mm mono jack x 2) No
• Headphone Out Yes
• Headphone Gain Control (low / mid / high) No

• Power Output (8 / 4 Ohm RMS) 75W / No
• Frequency response 10 Hz-100 kHz
• Total Harmonic Distortion 0.01%
• Damping Factor No
• Input Sensitivity: MM 2.5 mV / 47 kohm
• Input Sensitivity: MC No
• Signal to Noise Ratio: MM/MC 74 dB / No
• Input Sensitivity: High level 200mV / No
• Input Sensitivity: Balanced High level No
• Signal to Noise Ratio: High level 98dB
• Input Sensitivity: Power Amp Direct IN No
• Signal to Noise Ratio: Power Amp Direct IN No

• Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
• Metal Front Panel No
• Power Consumption in W 210
• Standby Consumption in W 0.2
• Auto Power off Yes
• Detachable Power Cable Yes

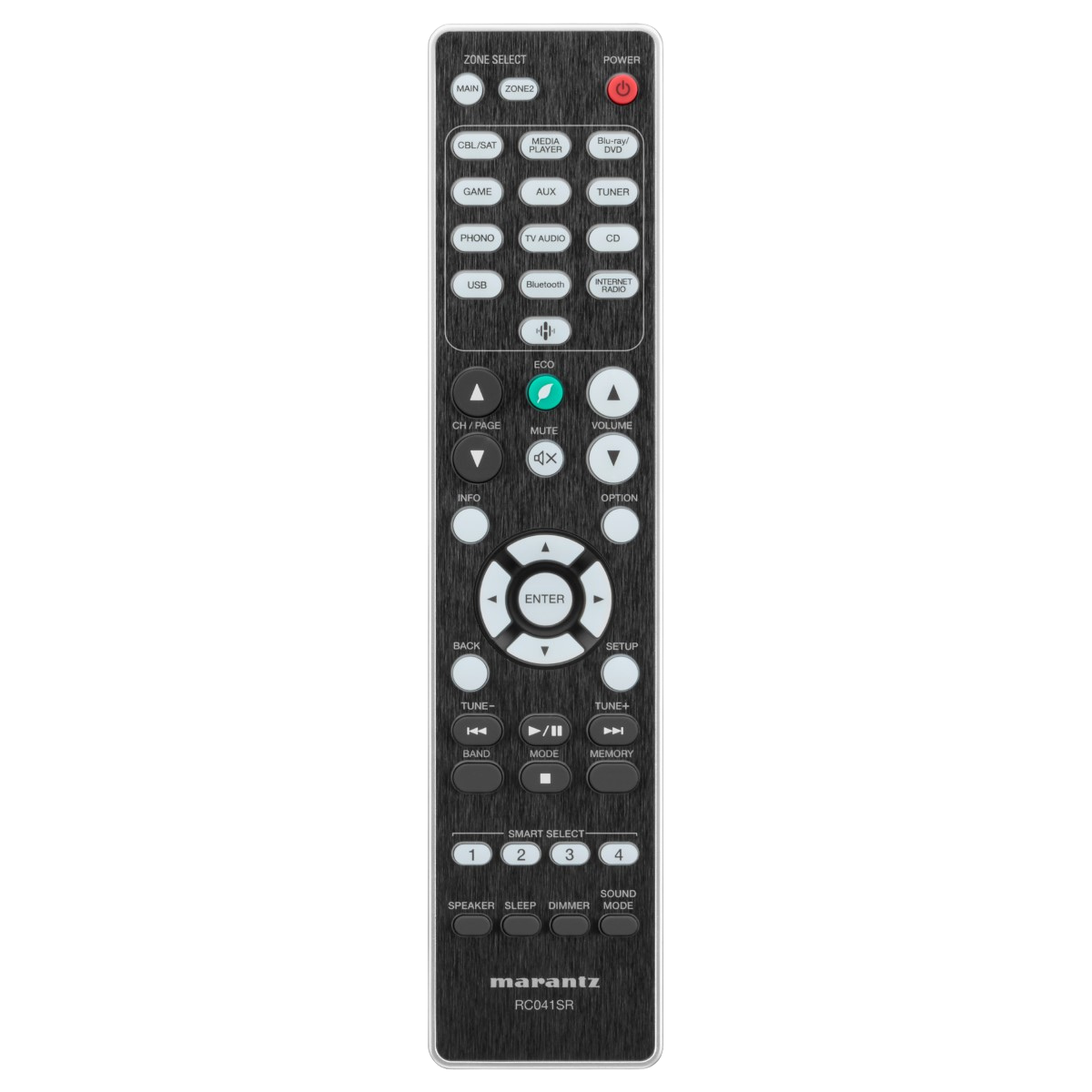

• Remote Control RC041SR
• System Remote Function Yes
• Maximum Dimensions (W x D x H) in mm 440 x 378 x 105
• Weight in kg 7.9
• Carton Maximum Dimensions (W x D x H) in mm 520 x 461 x 184
• Carton Weight (inc. product) in kg 9.9

Warranty

• 1 Year Local Warranty
