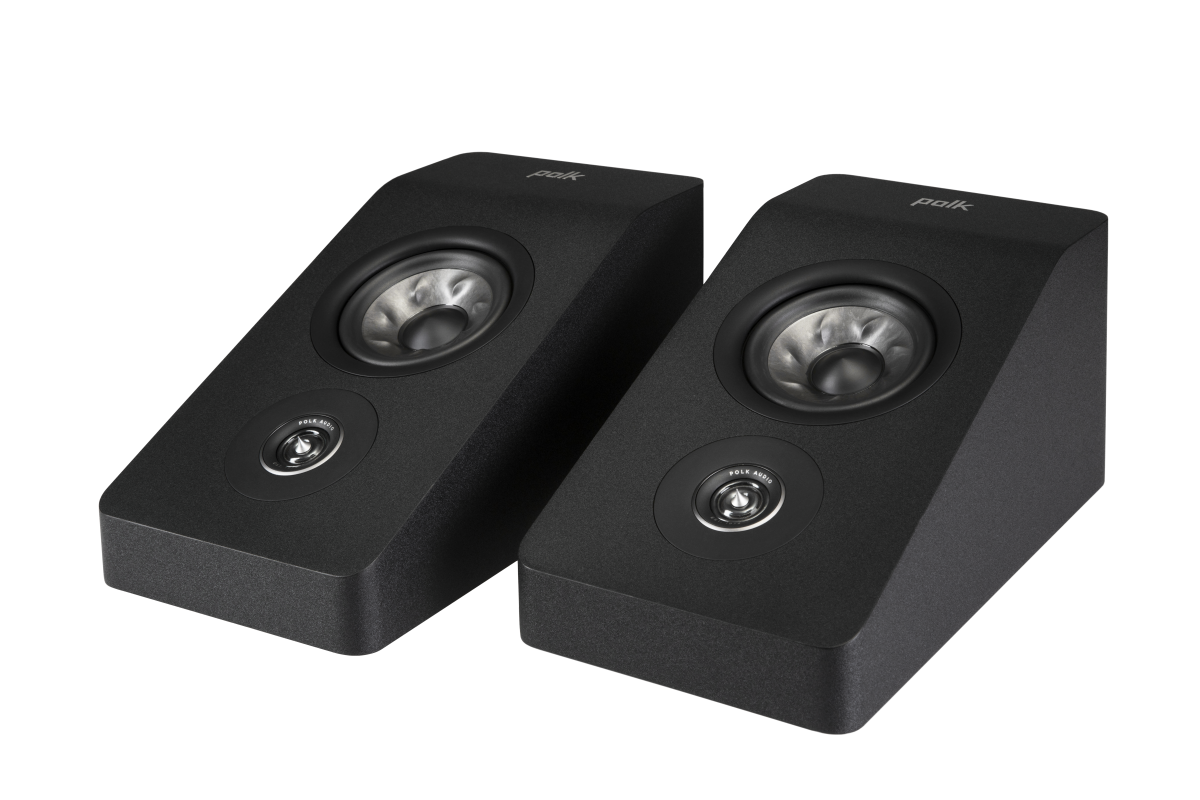

Add R900 height modules to access an IMAX-enhanced world of multidimensional sound. Its unique design means that it can sit atop other Reserve Series speakers or be mounted to the wall, unlocking the Dolby Atmos and DTS:X capabilities of the Reserve Series.

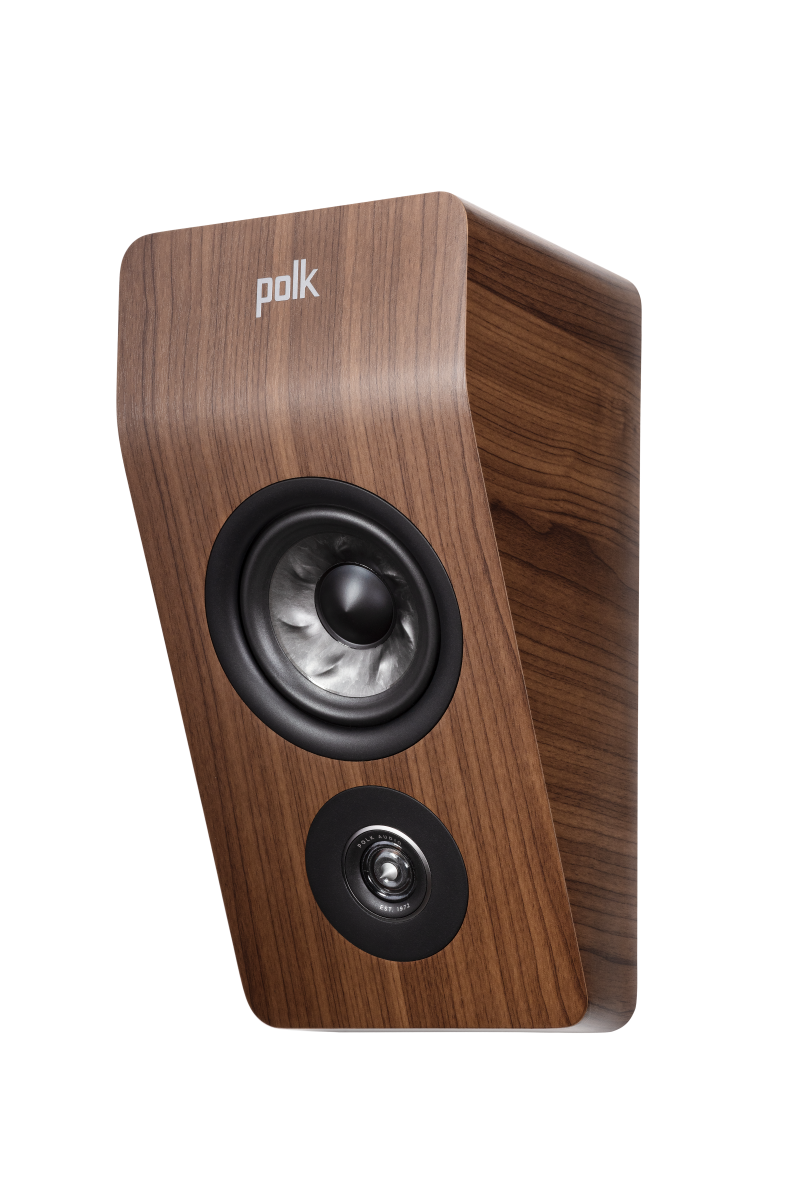

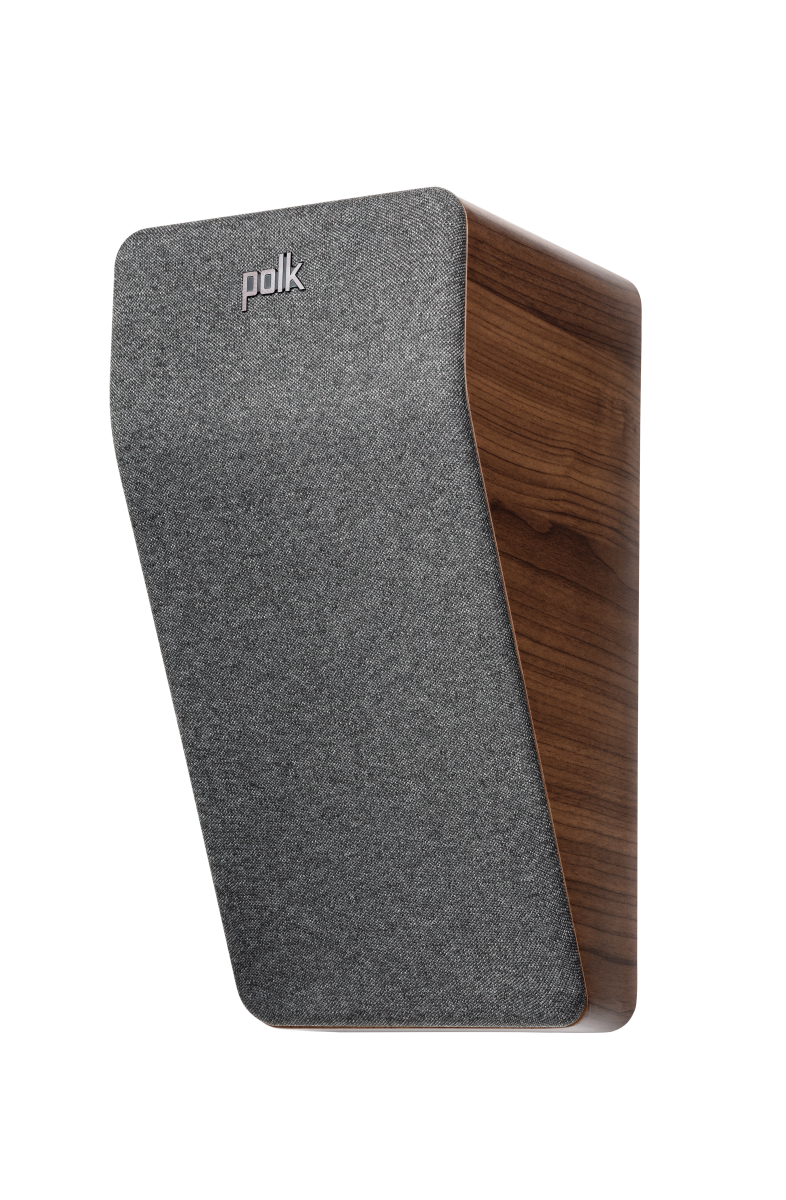

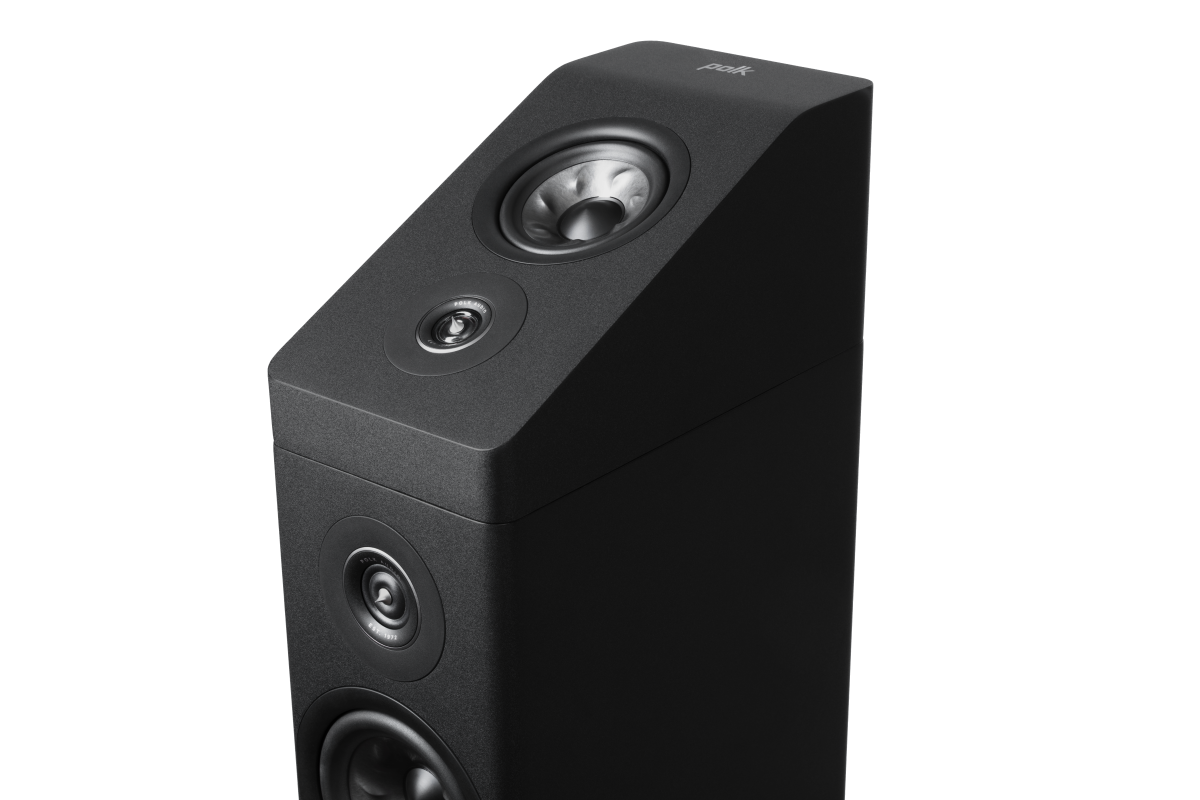

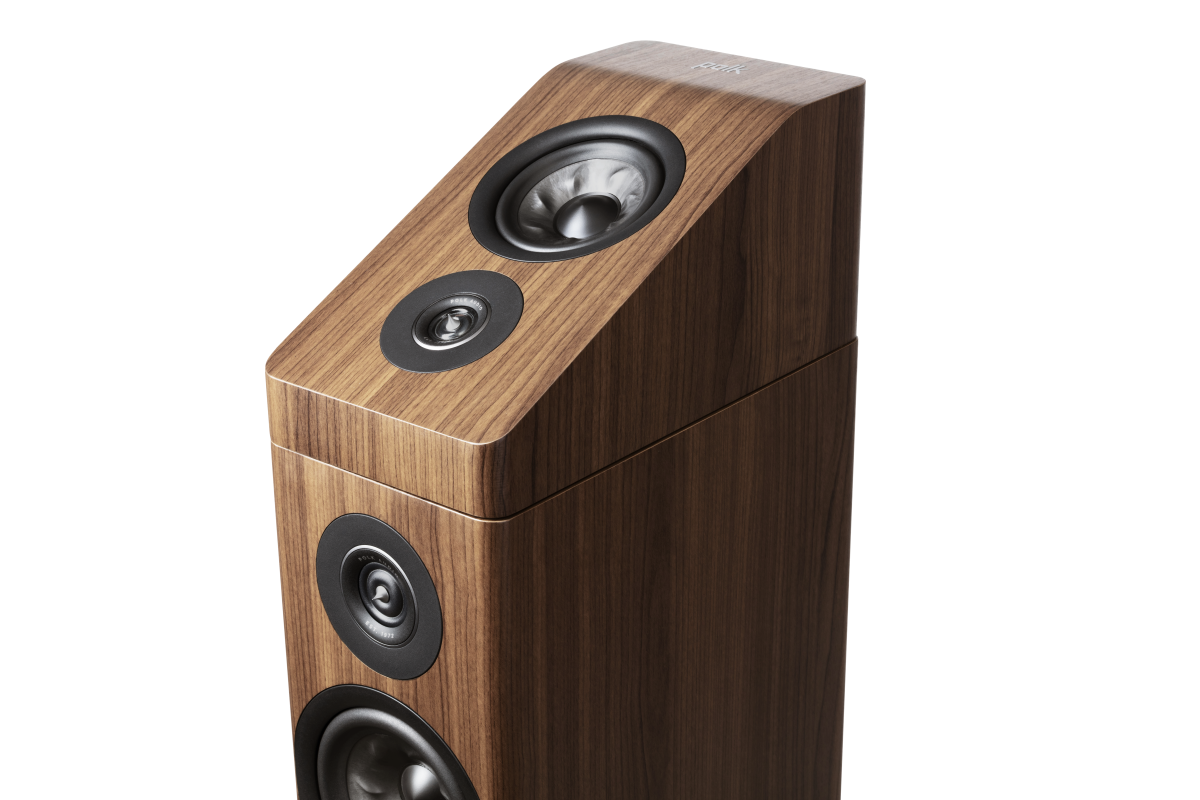

Wall or speaker-mounted (R700, R600, R500, R200)
IMAX Enhanced certified and Dolby Atmos compatible

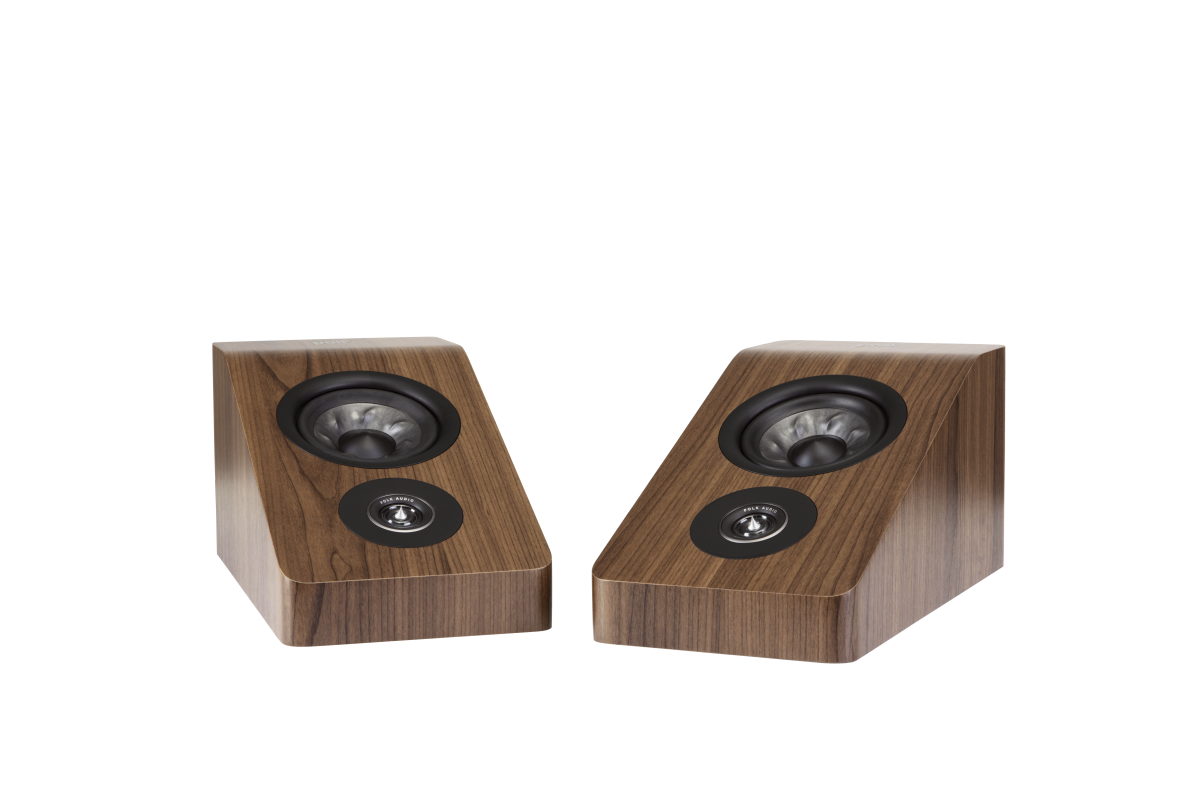

Flagship transducer array
Sleek and elegant design
Specification
Speaker Type:Height Module
UOM (Sold As):Pair
TRANSDUCER
Tweeter:0.75" Pinnacle Ring Radiator
Mid-range/Mid-bass: -
Woofers:4” Turbine Cone
Overall Frequency Response:50 – 50kHz (when wall mounted)
Frequency Response (-3dB limits):70 – 32kHz (when wall mounted)
Recommended Amplifier Power:45 - 100W
Amplifier Output Compatibility:8Ω / 6Ω / 4Ω
Minimum Impedance (ohms):4.2Ω
Sensitivity (2.83V/1m):85.5dB (when wall mounted)
CROSSOVER
Tweeter/Mid-range Crossover Frequency:2100
Mid-range/Mid-bass Crossover Frequency: -
MEASUREMENTS
Product Dims W x H x D (Includes width of feet):166 x 158.3 x 320mm 6.5 x 6.2 x 12.6 in
Product Weight (each):6.6 lbs/3 kg
Shipping Weight: 16 lbs/7.3 kg
CABINETRY
New CRC (Mid-Range Enclosure Type):-
Mid-Bass / Woofer Enclosure Type:Sealed

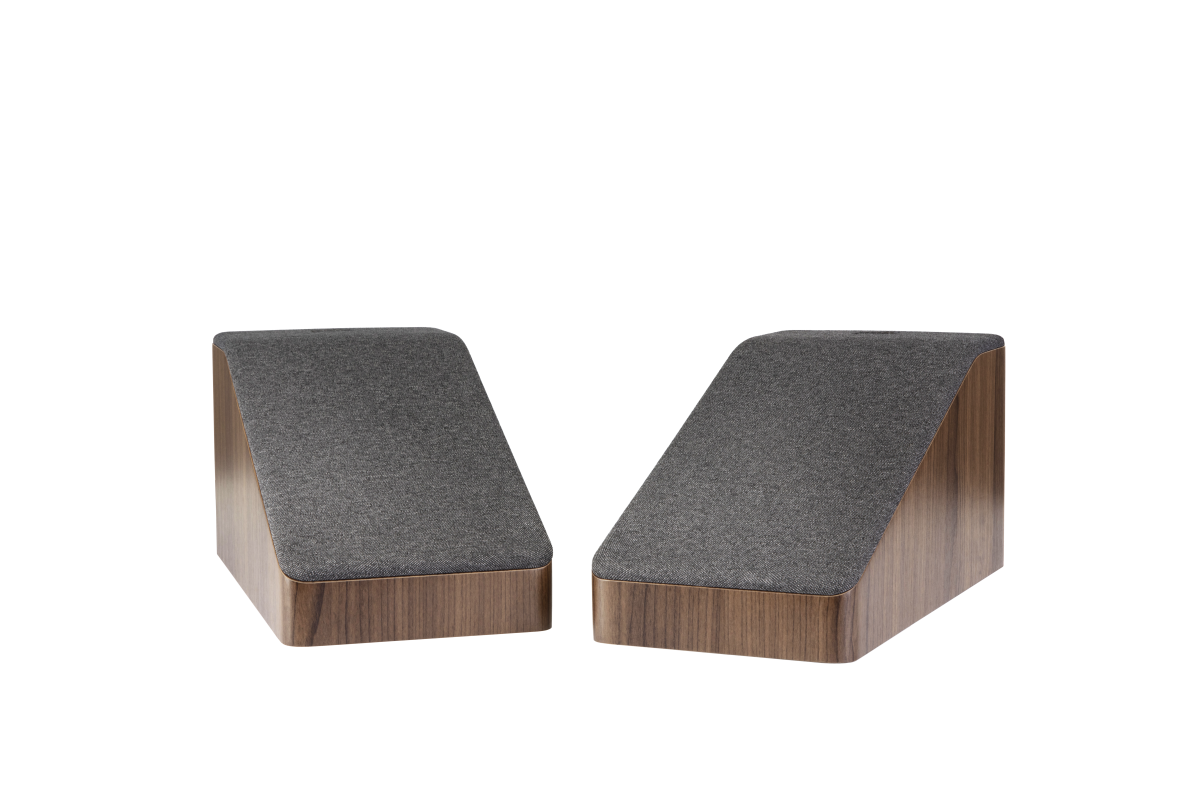

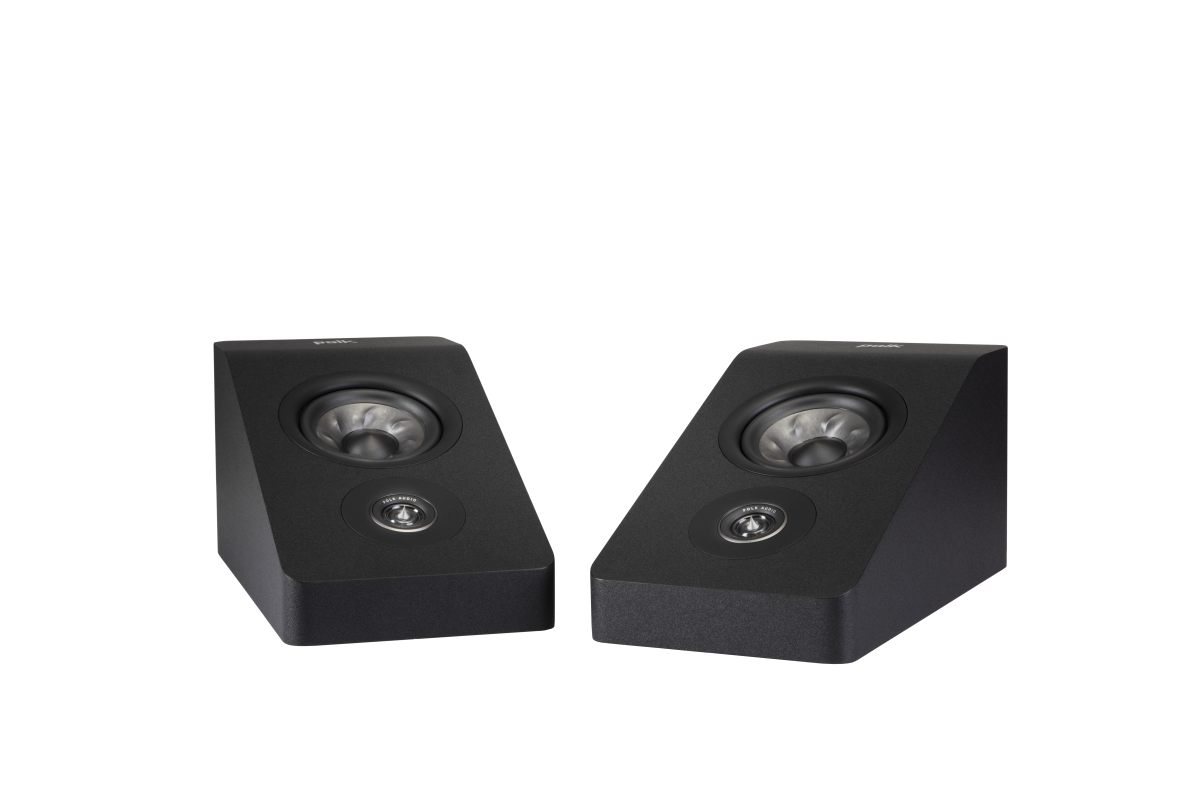

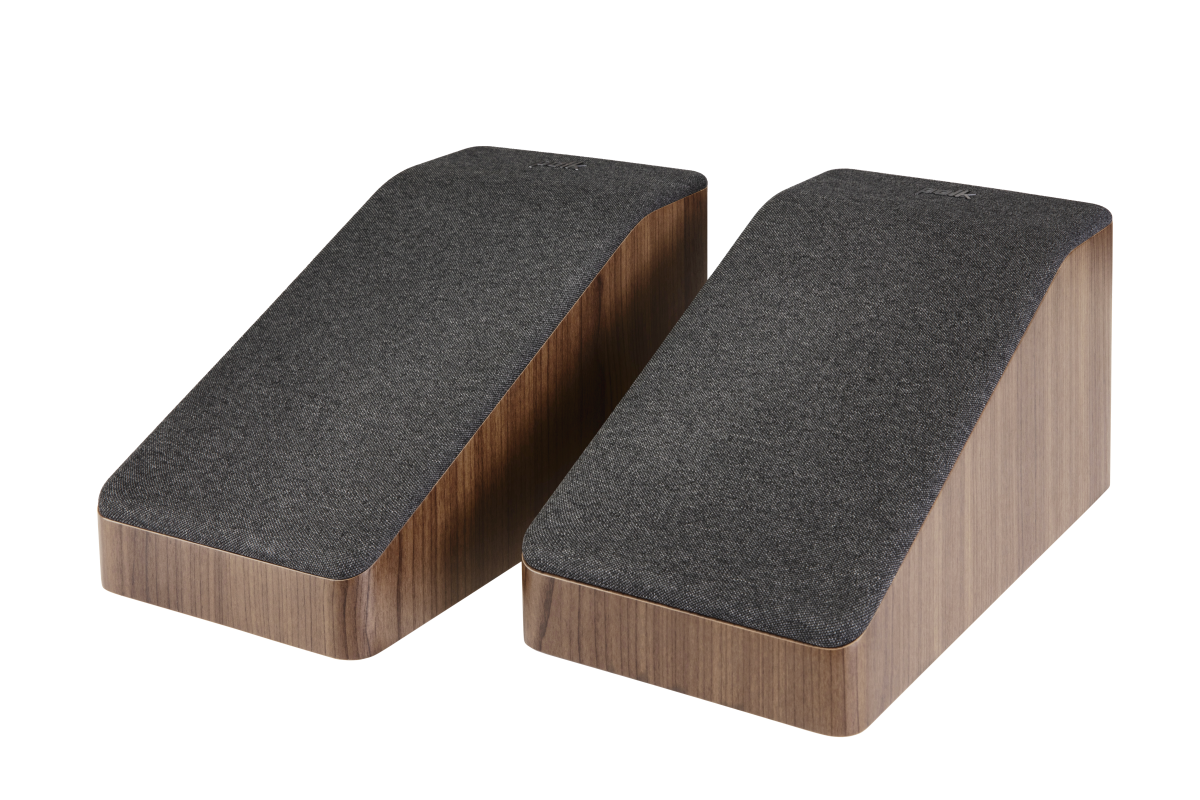

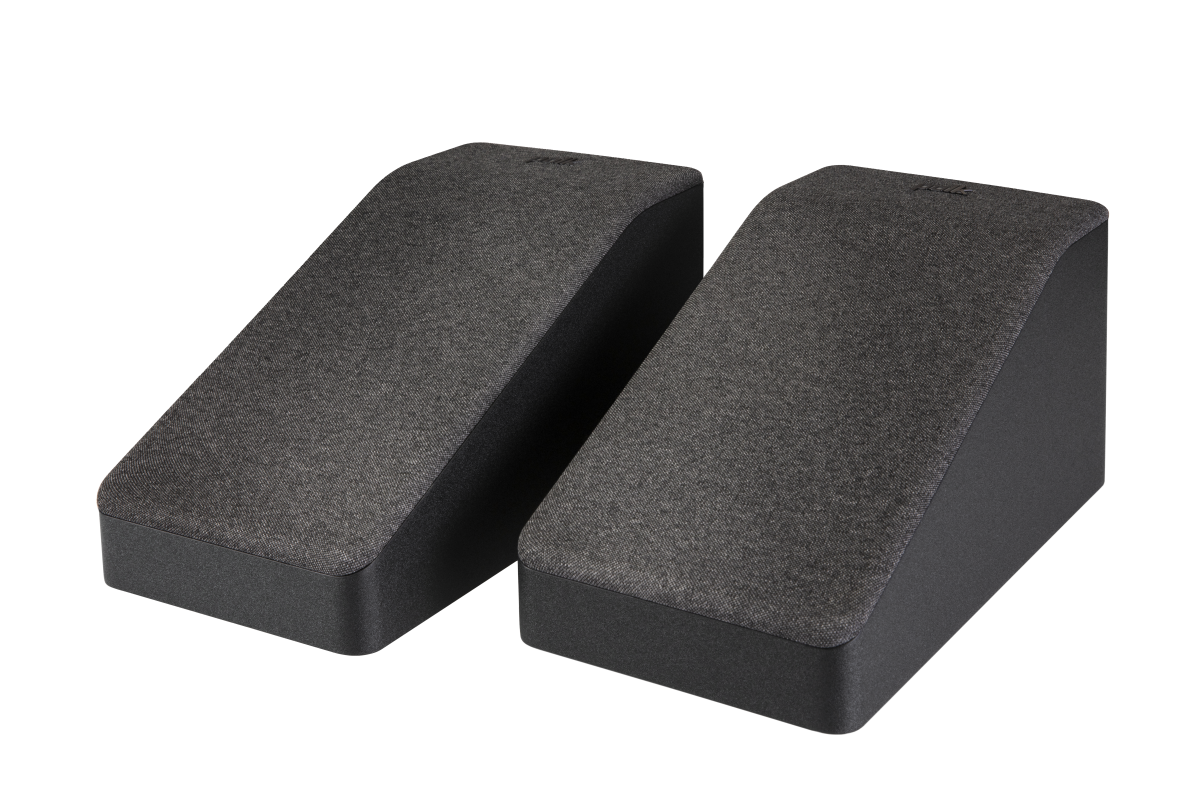

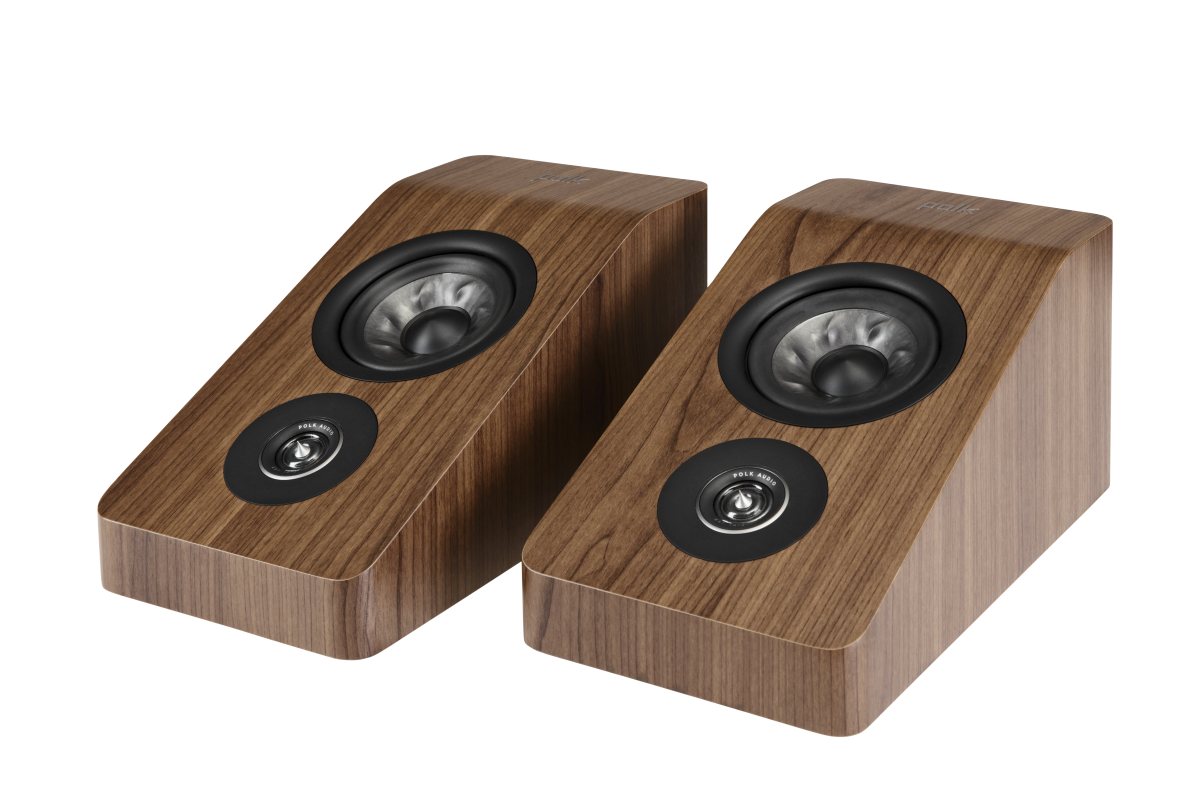

Available Finishes:Black / Walnut
Feet:Pads

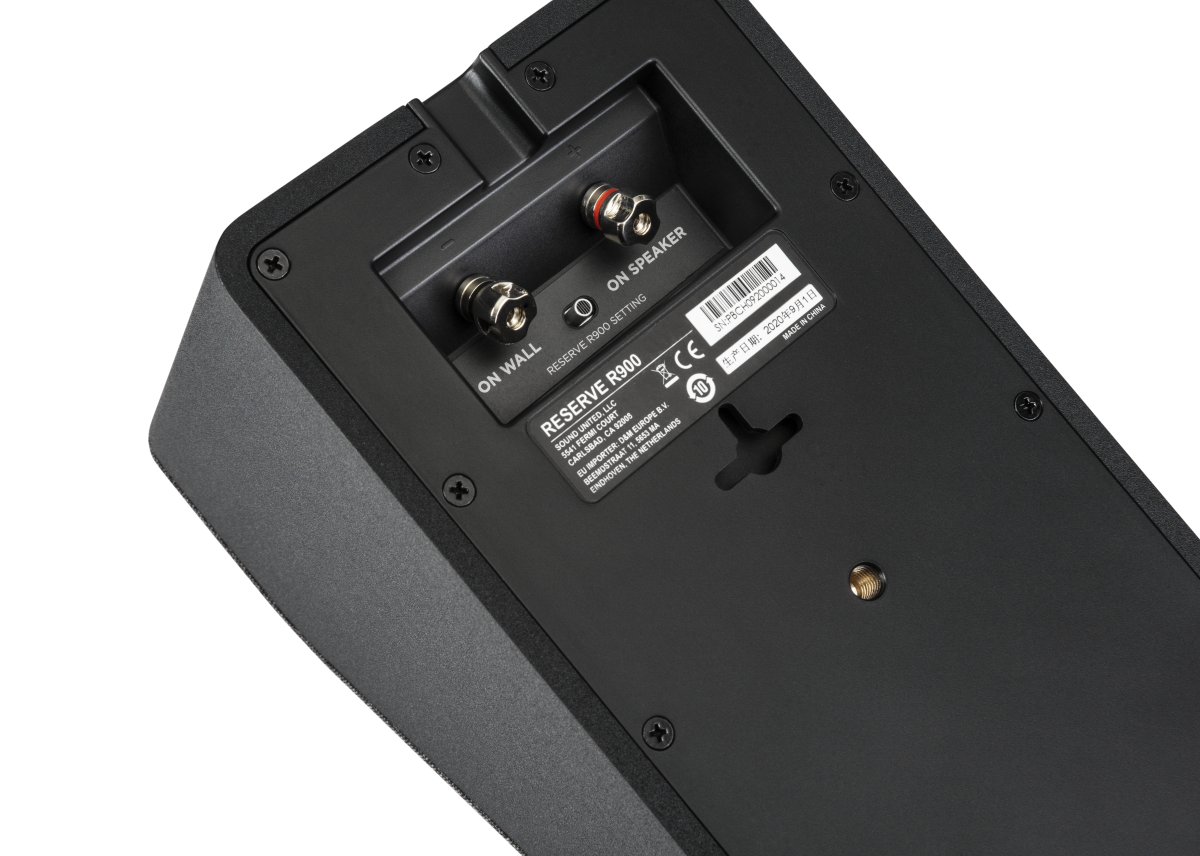

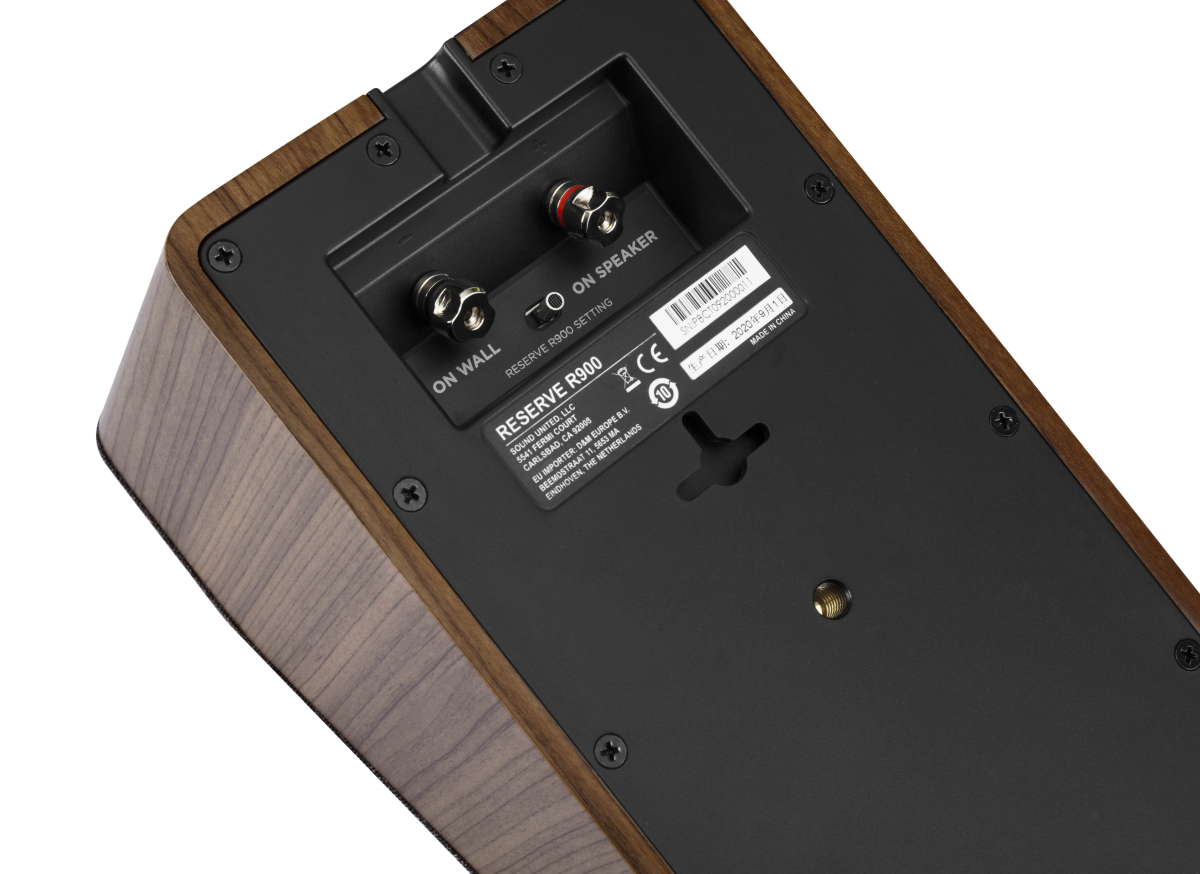

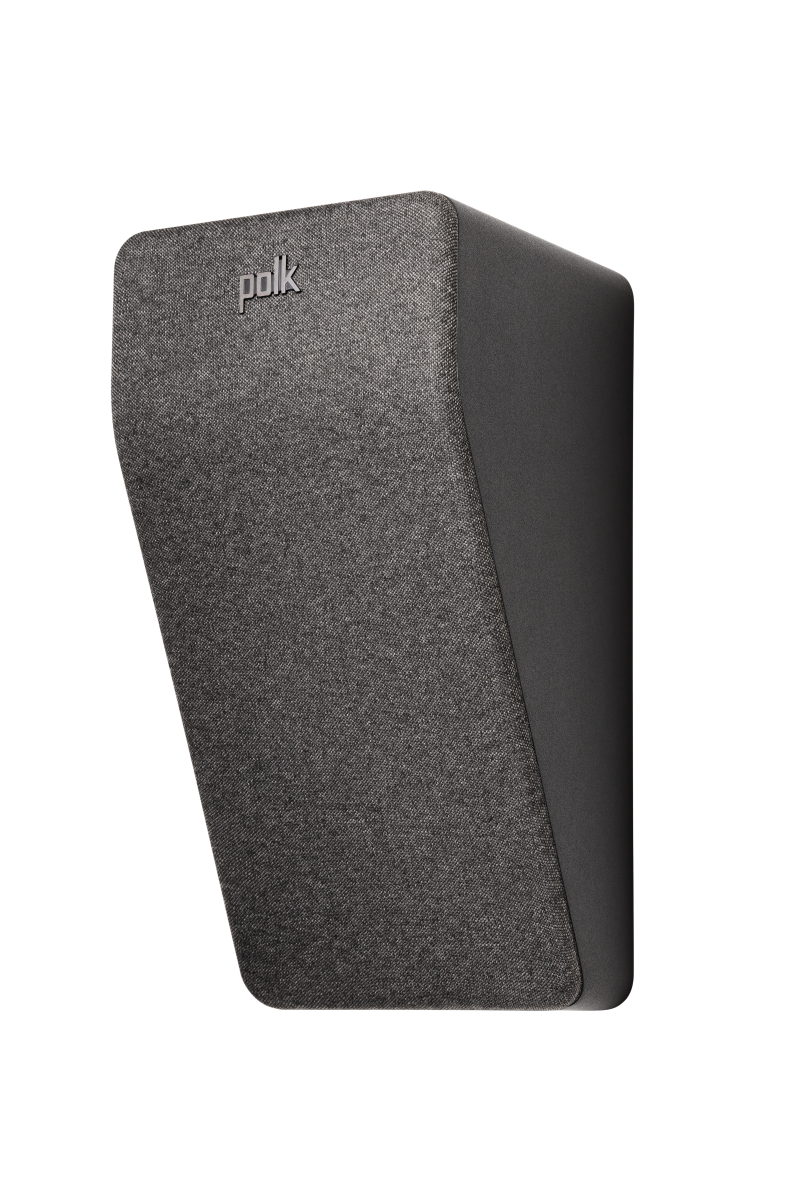

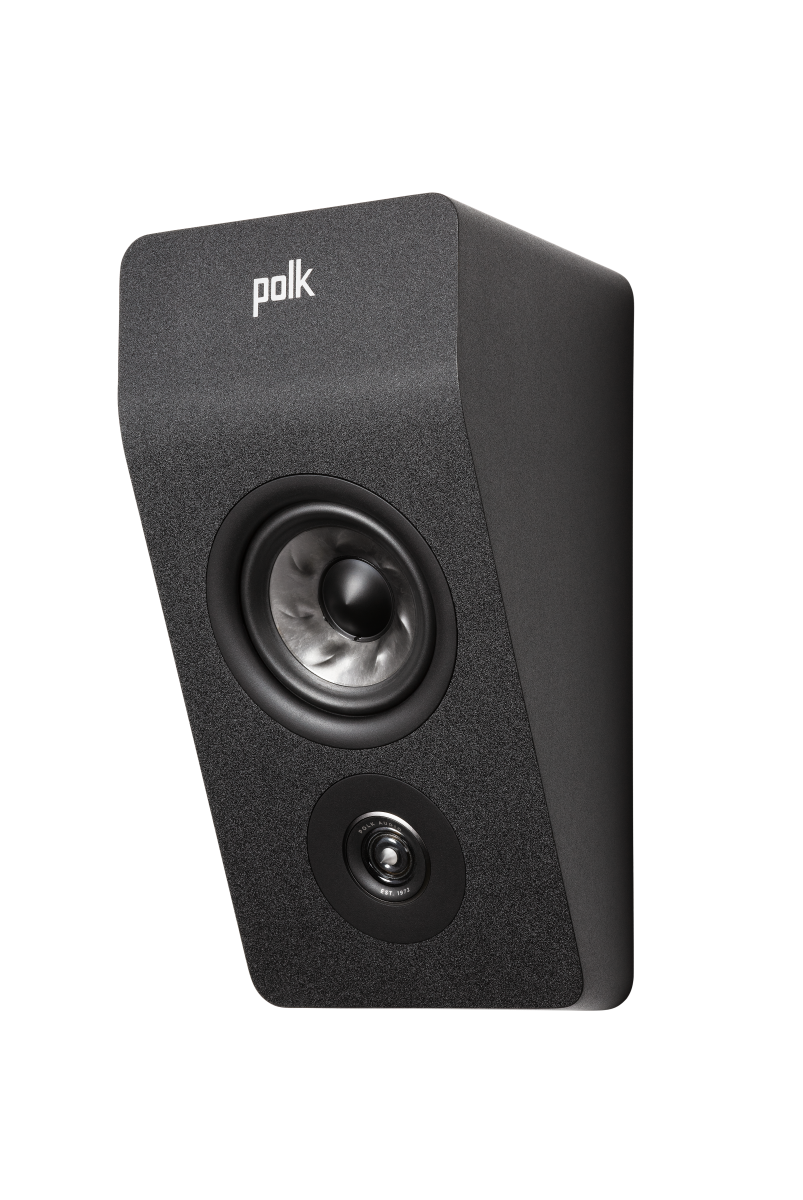

Wall-Mountable (keyhole slots):Yes
Binding Posts: Nickel-plated 5-WaySingle
Certifications Non-Safety and Regulatory
Hi-Res Certified:Yes
IMAX Certified:N/A
Shipping Dims (WxHxD):415 x 370 x 260mm (16.3 x 14.6 x 10.2) in
